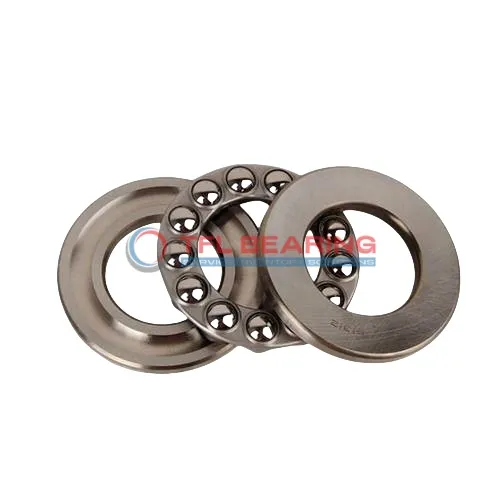

Metric Single Direction Thrust Ball Bearing 53205

Metric Single Direction Thrust Ball Bearing 53205

The 53205 is a single-direction thrust ball bearing with a 25mm bore and 47mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 5962 lbf and operates smoothly at speeds reaching 7000 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or compressors where single-direction thrust loads are present.

Weighing only 0.15kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53205
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Outer Dia Shaft Washer 47 mm
  • Width 16.7 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Inner Dia Housing Washer 27 mm
  • Chamfer Dimension 0.6 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 5962 lbf
  • Static Thrust Load 11250 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 0.15 kg
Metric Single Direction Thrust Ball Bearing 53205 dimension drawing
Download DWG Download PDF

Features

How Does 53205 Bearing Handle Heavy Loads?

53205 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 5962 lbf, ensuring dependable performance in demanding conditions.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 7,000 rpm, it combines durability and efficiency for various applications.

53205 Bearing operates smoothly within a temperature range of -30° to 110°C, adapting to different environments.
Its open seal design simplifies maintenance while providing reliable service.

Application

Industrial Uses of 53205 Bearing
53205 Bearing is commonly used in machine tools, where its ability to handle axial loads makes it ideal for spindle assemblies. The open design simplifies lubrication and maintenance, ensuring long service life in demanding conditions.

In automotive applications, 53205 Bearing supports clutch mechanisms and gearboxes, providing reliable performance under high thrust loads. Its metric sizing ensures compatibility with a variety of vehicle models, both domestic and international.

For automation systems, 53205 Bearing’s stainless steel cage and chrome steel construction offer durability in robotic arms and conveyor belts. The precise tolerances contribute to smooth operation in high-speed environments.

Medical imaging devices benefit from 53205 Bearing’s consistent performance and resistance to wear. The chrome steel rings and balls ensure reliability in critical applications where precision is essential.

In household appliances like washing machines, 53205 Bearing provides quiet and efficient operation. Its robust design handles the axial loads common in rotating components, making it a dependable choice for daily use.
