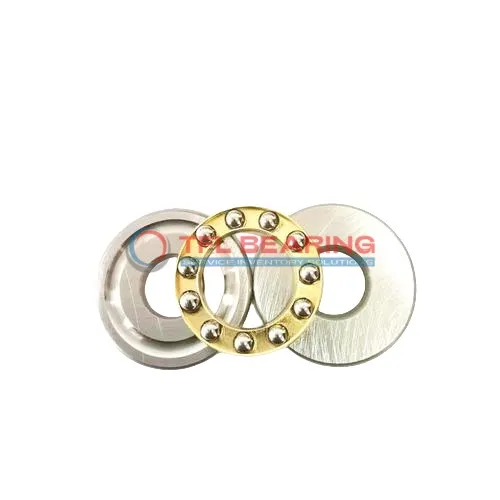

Metric Single Direction Thrust Ball Bearing 51322 M

Metric Single Direction Thrust Ball Bearing 51322 M

The 51322 M is a single-direction thrust ball bearing with a 110mm bore and 190mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 65475 lbf and operates at speeds up to 1700 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.

Weighing 7.85kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The 2mm chamfer ensures easier installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 51322 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Outer Dia Shaft Washer 187 mm
  • Width 63 mm
  • Width Tolerance +0.025mm to -0.3mm
  • Inner Dia Housing Washer 113 mm
  • Chamfer Dimension 2 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 65475 lbf
  • Static Thrust Load 180000 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1700 rpm
  • Weight 7.85 kg
Metric Single Direction Thrust Ball Bearing 51322 M dimension drawing
Download DWG Download PDF

Features

Why Choose 51322 M Bearing for Precision Tasks?

51322 M Bearing is crafted with 52100 chrome steel rings and balls, ensuring high precision and durability.
Its dynamic thrust load capacity of 65475 lbf makes it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 1,700 rpm, it offers reliable operation in demanding conditions.

51322 M Bearing’s open design allows for easy installation and maintenance.
Its temperature range of -30° to 110°C ensures adaptability in various environments.

Application

Industrial Uses of 51322 M Bearing
51322 M Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open design simplifies lubrication, ensuring long service life in demanding conditions.

Where Is 51322 M Bearing Used?
You’ll often find 51322 M Bearing in automotive applications such as heavy-duty truck transmissions, where its robust construction handles axial loads effectively. Its metric sizing makes it a reliable choice for European and Asian vehicle manufacturers.

Built for Heavy-Duty Use: 51322 M Bearing
51322 M Bearing excels in industrial gearboxes, providing stability under significant thrust loads. The chrome steel rings and stainless steel cage offer durability, even in high-temperature environments.

Automotive vs Aerospace: Applications of 51322 M Bearing
In automotive systems, 51322 M Bearing supports components like clutch assemblies, while in aerospace, it’s used in landing gear mechanisms. Its precision and load capacity make it versatile across industries.

Perfect Fit for Automation: 51322 M Bearing
51322 M Bearing is ideal for automated production lines, where its reliability ensures smooth operation of robotic arms. The open seal design allows for easy maintenance, reducing downtime in busy factories.
