Metric Single Direction Thrust Ball Bearing 513/950

Metric Single Direction Thrust Ball Bearing 513/950

The 513/950 is a large single-direction thrust ball bearing with a 950mm bore and 1400mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 651496 lbf and operates at speeds up to 230 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. Suitable for temperatures between -30°C and 110°C, it’s built for tough conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 2031.7kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 513/950
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 950 mm
  • Bore Dia Tolerance -0.1mm to 0
  • Outer Dia 1400 mm
  • Outer Dia Tolerance -0.16mm to 0
  • Width 355 mm
  • Width Tolerance +0.08mm to -1mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 651496 lbf
  • Static Thrust Load 5027627 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 230 rpm
  • Weight 2031.7 kg

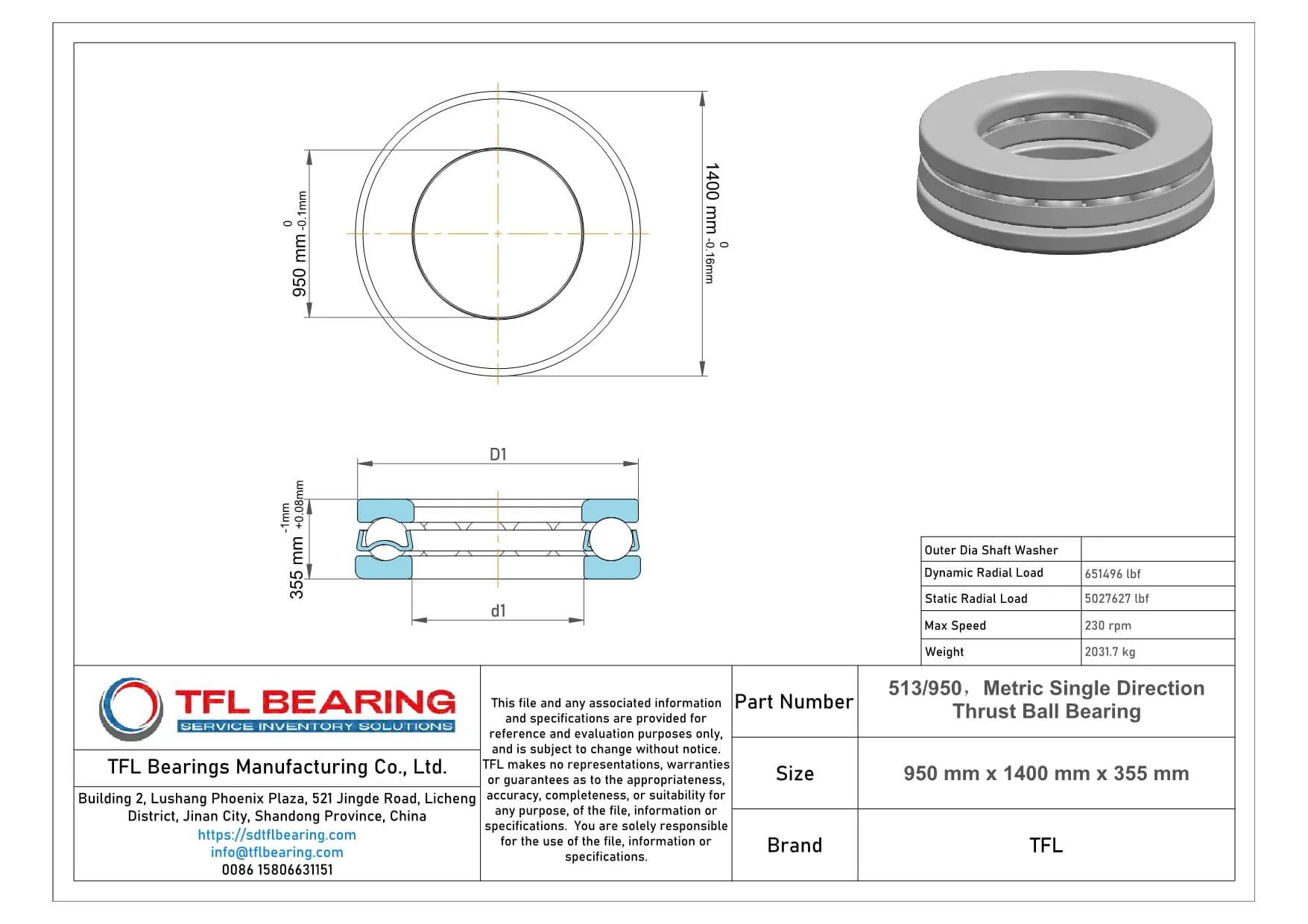

Metric Single Direction Thrust Ball Bearing 513/950 dimension drawing
Download DWG Download PDF

Features

Performance Features of 513/950 Bearing

513/950 Bearing is crafted from 52100 chrome steel, offering robust resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 651496 lbf, making it suitable for demanding industrial applications.

The chrome steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 230 rpm, it balances strength and operational efficiency.

513/950 Bearing operates reliably within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 513/950 Bearing
This large-scale bearing is commonly used in heavy machinery, such as mining equipment and hydraulic presses, where it handles substantial axial loads with ease. Its open design simplifies lubrication, ensuring long service life in demanding conditions.

Where Is 513/950 Bearing Used?
You’ll often find 513/950 Bearing in wind turbine systems, where its robust construction supports the main shaft under high thrust forces. The chrome steel components offer excellent wear resistance, even in harsh outdoor environments.

Built for Heavy-Duty Use: 513/950 Bearing
In steel mills, 513/950 Bearing plays a key role in rolling mills, enduring extreme loads while maintaining smooth operation. Its precise tolerances make it a reliable choice for industries requiring consistent performance under stress.

Automotive vs Aerospace: Applications of 513/950 Bearing
While too large for most vehicles, 513/950 Bearing is ideal for aerospace ground support equipment like aircraft tow tractors. Its high static thrust load capacity ensures stability when handling heavy loads on the tarmac.

Essential Roles of 513/950 Bearing
For marine applications, 513/950 Bearing supports propeller shafts in large vessels, where its corrosion-resistant materials withstand saltwater exposure. The wide temperature range also makes it suitable for varying climate conditions.
