Metric Single Direction Thrust Ball Bearing 511/800-M

Metric Single Direction Thrust Ball Bearing 511/800-M

The 511/800-M is a large single-direction thrust ball bearing with an 800mm bore and 950mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 227057 lbf and operates at speeds up to 480 RPM.

Its open design requires regular lubrication, while the chrome steel cage ensures durability under demanding conditions. Suitable for temperatures between -30°C and 110°C, it’s built for tough environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for heavy machinery like industrial presses or large gear systems where high thrust loads are common.

Weighing 155kg, it’s a robust unit designed for long-term performance. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 511/800-M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 800 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 950 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 120 mm
  • Width Tolerance +0.07mm to -0.75mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 227057 lbf
  • Static Thrust Load 2023280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 480 rpm
  • Weight 155.0 kg

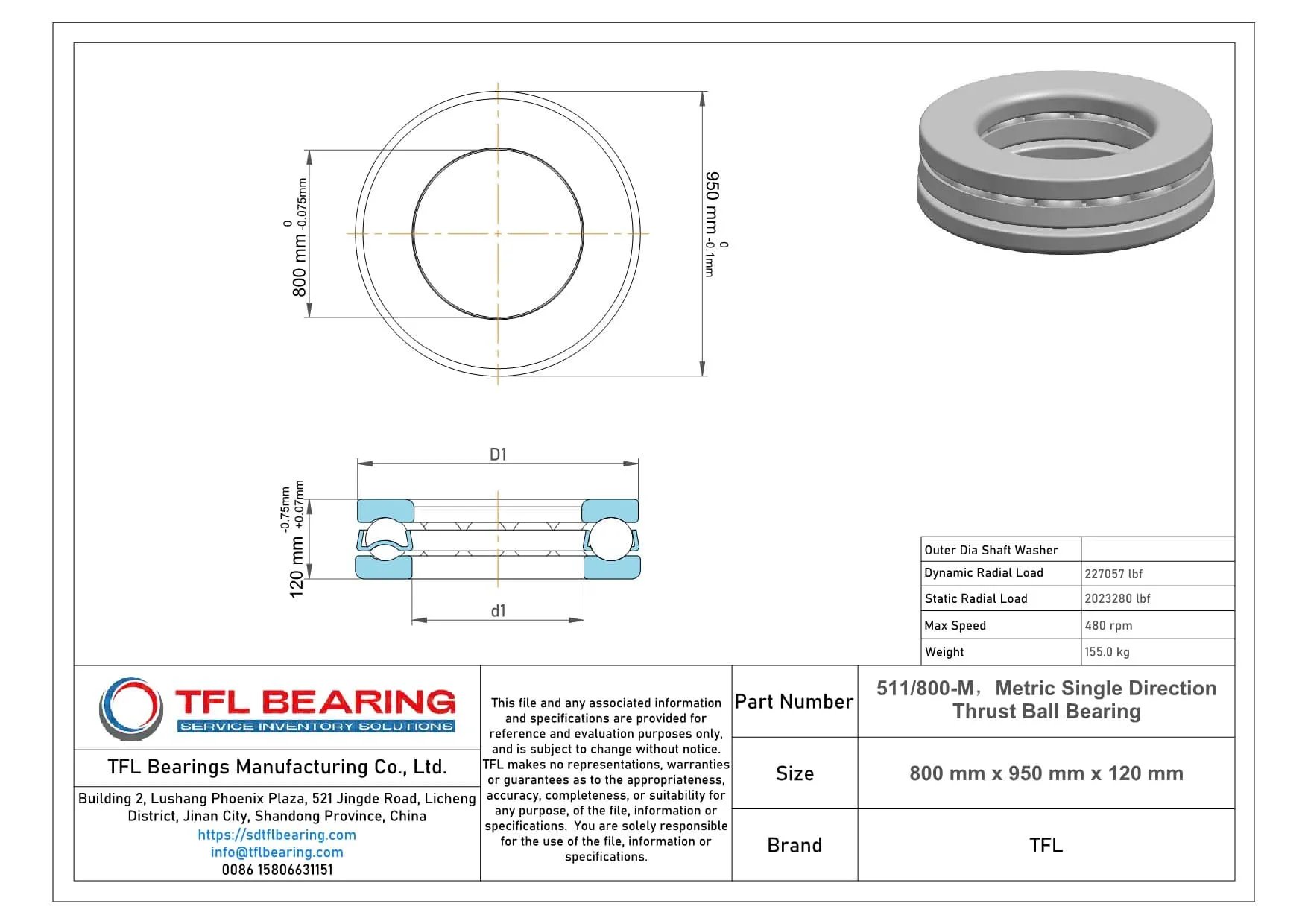

Metric Single Direction Thrust Ball Bearing 511/800-M dimension drawing
Download DWG Download PDF

Features

Performance Features of 511/800-M Bearing

511/800-M Bearing is crafted from 52100 chrome steel, offering strong resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 227057 lbf, making it suitable for demanding industrial applications.

The chrome steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 480 rpm, it balances durability and operational efficiency.

511/800-M Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth performance over time.

The precise tolerances in bore and outer diameters enhance fitting accuracy.
This reduces installation time and improves overall system reliability.

Application

Industrial Uses of 511/800-M Bearing
511/800-M Bearing is commonly used in large industrial equipment like heavy-duty presses and hydraulic systems, where its high thrust load capacity is essential. The open design simplifies lubrication, ensuring long service life in demanding conditions.

What Makes 511/800-M Bearing a Preferred Choice?
In wind turbine applications, 511/800-M Bearing handles significant axial loads while maintaining stability. Its chrome steel construction offers durability, even in harsh outdoor environments.

Built for Heavy-Duty Use: 511/800-M Bearing
This bearing excels in mining machinery, supporting massive loads in crushers and conveyors. The metric dimensions make it a straightforward replacement for many European-made industrial systems.

Automotive vs Aerospace: Applications of 511/800-M Bearing
While too large for most vehicles, 511/800-M Bearing is ideal for aerospace ground support equipment like aircraft tugs. Its robust design ensures reliability under extreme operational stresses.

Perfect Fit for Automation: 511/800-M Bearing
In automated production lines, 511/800-M Bearing supports heavy robotic arms with precision. The wide temperature range allows consistent performance in varied factory conditions.
