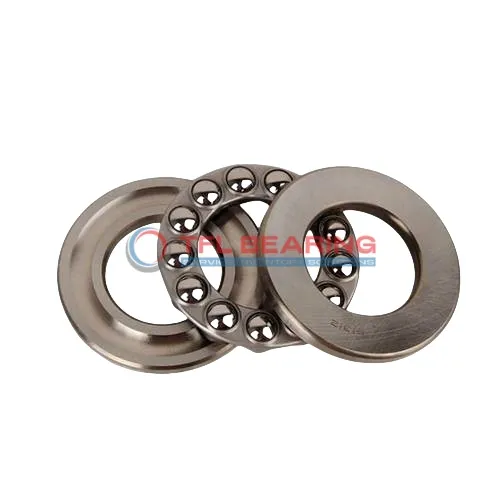

Metric Single Direction Thrust Ball Bearing 51096 F

The 51096 F is a large single-direction thrust ball bearing with a 480mm bore and 520mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 29925 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.

Weighing 6.5kg, it’s built to handle substantial forces while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 51096 F
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 480 mm
Bore Dia Tolerance -0.045mm to 0
Outer Dia 520 mm
Outer Dia Tolerance -0.05mm to 0
Outer Dia Shaft Washer 518.5 mm
Width 30 mm
Width Tolerance +0.05mm to -0.5mm
Inner Dia Housing Washer 481.5 mm
Chamfer Dimension 1 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 29925 lbf
Static Thrust Load 225000 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 1500 rpm
Weight 6.5 kg

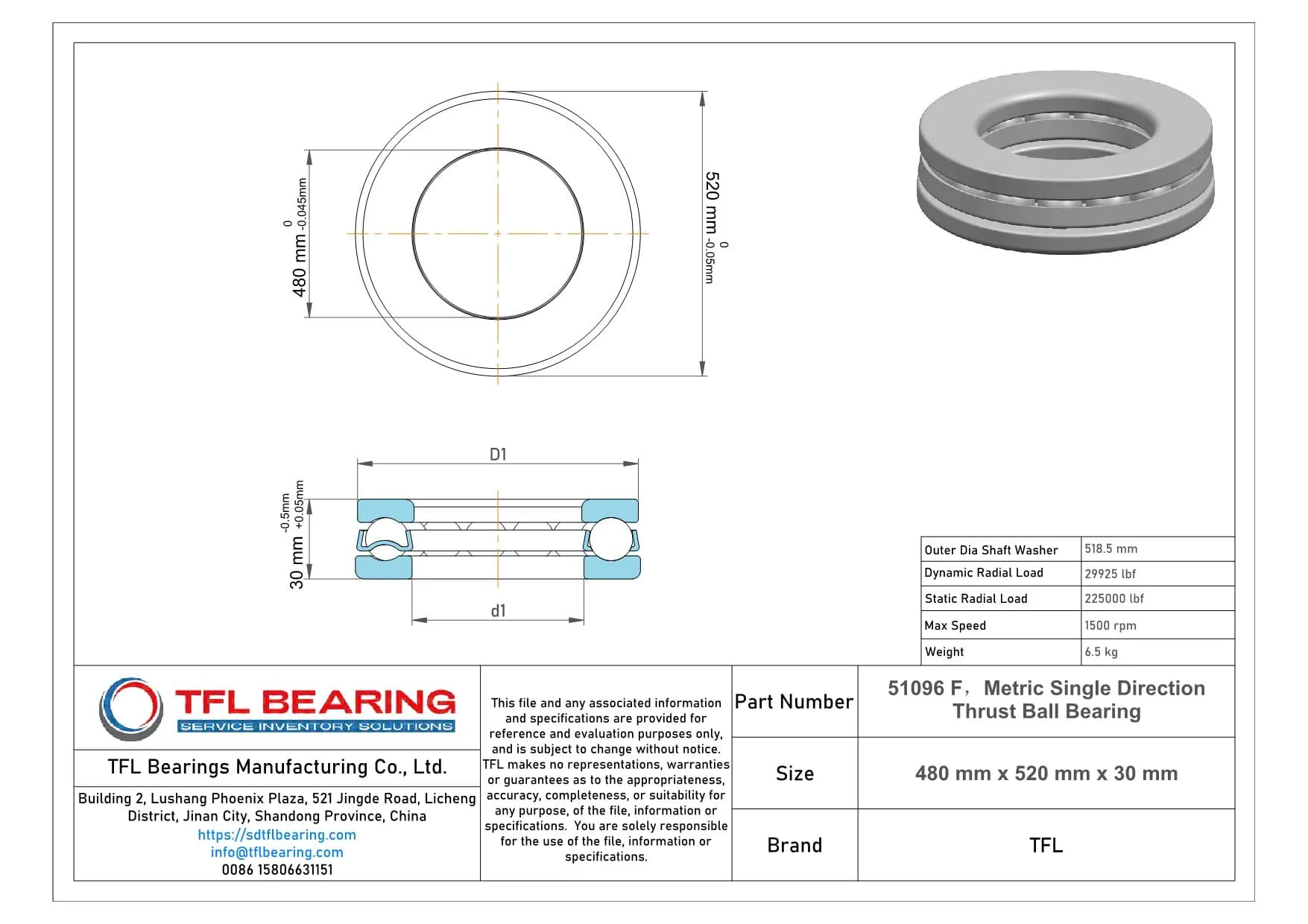

Metric Single Direction Thrust Ball Bearing 51096 F dimension drawing

Download DWG Download PDF

Features

How Does 51096 F Bearing Handle Heavy Loads?

51096 F Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 29925 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,500 rpm, it delivers reliable performance under demanding conditions.

51096 F Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance while maintaining durability in various environments.

Application

Industrial Uses of 51096 F Bearing
51096 F Bearing is commonly used in heavy machinery, such as large presses and industrial gearboxes, where its high thrust load capacity is essential. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

In wind turbine systems, 51096 F Bearing handles axial loads in the yaw and pitch mechanisms, contributing to efficient energy production. Its chrome steel construction offers durability against harsh weather and continuous operation.

For construction equipment like cranes, 51096 F Bearing provides reliable performance in load-bearing components. The stainless steel cage helps reduce wear, even under heavy use and variable loads.

Automotive vs Aerospace: Applications of 51096 F Bearing
In automotive applications, 51096 F Bearing is found in large truck transmissions, where it manages high thrust loads. Its metric sizing ensures compatibility with various heavy-duty vehicle designs.

Aerospace systems use 51096 F Bearing in landing gear mechanisms, where precision and reliability are critical. The bearing’s temperature range makes it suitable for both ground and flight conditions.

Where Is 51096 F Bearing Used?
51096 F Bearing is ideal for industrial fans and blowers, where its large size and load capacity support smooth operation. The open seal design simplifies maintenance, reducing downtime.

In hydraulic systems, 51096 F Bearing ensures stable performance in pumps and motors. Its chrome steel rings and stainless steel cage provide resistance to corrosion and wear.
