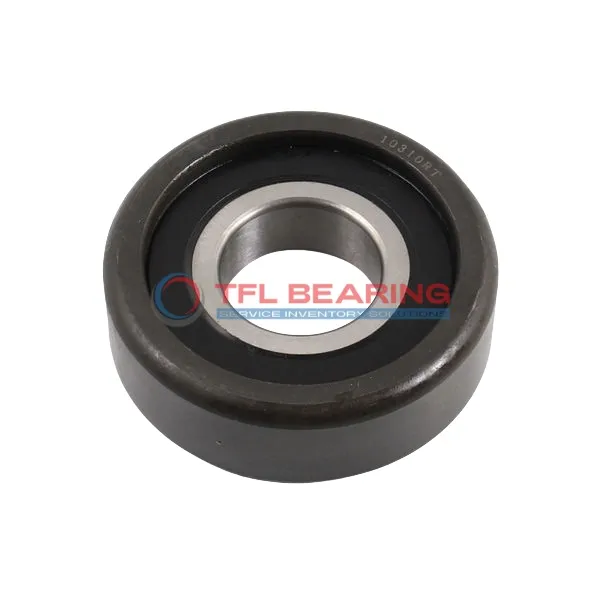

Mast Guide Bearings MG 85mm‑3

Mast Guide Bearings MG 85mm‑3

The MG 85mm-3 mast guide bearing is a sturdy unit with an 85mm inner diameter and 252mm outer diameter, designed for heavy-duty applications. Its robust build can handle dynamic loads up to 322,000 N and static loads up to 490,000 N.

With an inner ring width of 66mm and outer ring width of 70mm, it offers a stable fit for demanding setups. The chamfered edges ensure easier installation and alignment.

Weighing 22.68kg, this bearing is built to last in tough conditions. Ideal for use in construction equipment or industrial machinery where high load capacity is essential.

Its durable construction makes it a reliable choice for replacements or new installations. Compatible with various OEM brands for versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 85mm‑3
  • Brand TFL & OEM
  • Inner Diameter (d) 85.000 mm
  • Outer Diameter (D) 252.00 mm
  • Inner Ring Width (b) 66 mm
  • Outer Ring Width (B) 70.000 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 322,000 N
  • Static Capacity (Cor.) 490,000 N
  • Weight 22.6796 Kg
Mast Guide Bearings MG 85mm‑3 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 85mm‑3 Bearing

MG 85mm‑3 Bearing is built with a robust design, handling dynamic loads up to 322,000 N for reliable performance.
Its static capacity of 490,000 N ensures stability even under heavy loads.

The dimensions of 85.000 mm x 252.00 mm x 70.000 mm make it suitable for various industrial applications.
With a weight of 22.6796 Kg, it balances strength and practicality.

The chamfered edges reduce stress concentration, enhancing durability.
This design choice helps in smoother installation and long-term reliability.

Application

Industrial Uses of MG 85mm‑3 Bearing
MG 85mm‑3 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its high dynamic capacity handles substantial loads with ease. The robust design ensures longevity even in demanding environments.

In wind turbines, MG 85mm‑3 Bearing plays a key role in mast guidance systems, providing stability and smooth rotation. Its large outer diameter and weight distribution make it ideal for such high-stress applications.

For industrial automation, MG 85mm‑3 Bearing supports linear motion systems, ensuring precise movement in assembly lines. The chamfered edges reduce friction, enhancing efficiency in repetitive tasks.

What Makes MG 85mm‑3 Bearing a Preferred Choice?
MG 85mm‑3 Bearing is favoured in marine applications due to its corrosion-resistant materials and ability to withstand harsh conditions. The static capacity ensures reliability in static load scenarios.

In mining equipment, MG 85mm‑3 Bearing’s durability and high load capacity make it suitable for conveyor systems and drilling machinery. The weight and dimensions are optimised for heavy industrial use.
