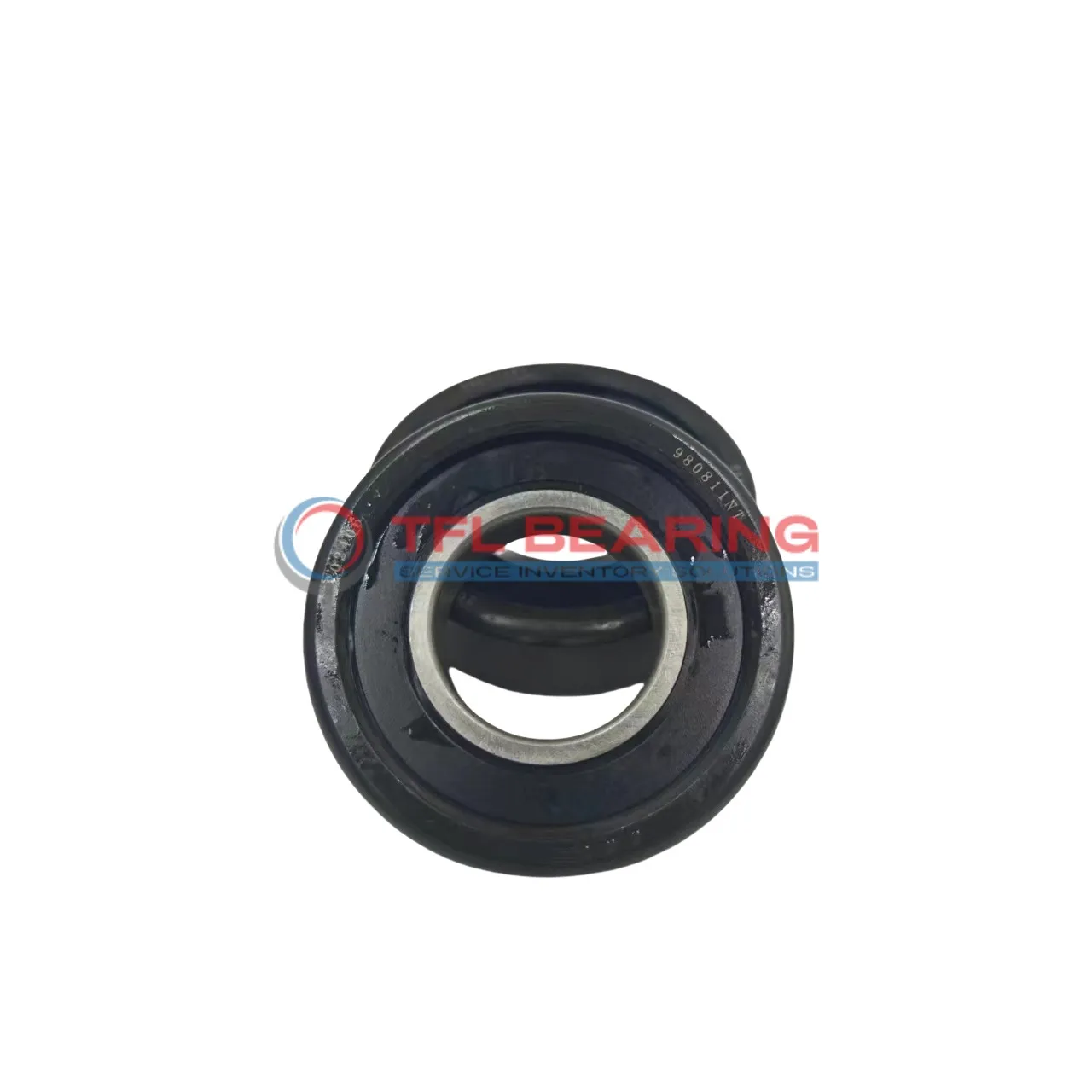

Mast Guide Bearings MG 55mm‑2

Mast Guide Bearings MG 55mm‑2

The MG 55mm-2 is a sturdy mast guide bearing with a 55mm inner diameter and 136.5mm outer diameter, designed for heavy-duty use. Its robust construction handles dynamic loads up to 185,100 N and static loads up to 235,700 N.

Made for demanding applications, this bearing features a 5mm radius for smooth operation and weighs just 3.81kg, balancing strength and portability. The inner and outer ring widths of 43.5mm and 46.35mm ensure stability under load.

Ideal for industrial machinery or construction equipment, it offers reliable performance in tough conditions. Its durable design makes it a practical choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 55mm‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 55.000 mm
  • Outer Diameter (D) 136.50 mm
  • Inner Ring Width (b) 43.5 mm
  • Outer Ring Width (B) 46.350 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 185,100 N
  • Static Capacity (Cor.) 235,700 N
  • Weight 3.8102 Kg
Mast Guide Bearings MG 55mm‑2 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 55mm-2 Bearing

MG 55mm-2 Bearing is built to handle high dynamic loads, with a capacity of 185,100 N.

Its robust design ensures reliable performance in demanding applications, making it a durable choice.

The bearing’s static capacity of 235,700 N provides added stability under heavy loads.

With dimensions of 55.000 mm x 136.50 mm x 46.350 mm, it fits seamlessly into various industrial setups.

Application

Industrial Uses of MG 55mm‑2 Bearing
MG 55mm‑2 Bearing is commonly used in heavy machinery like cranes and lifts, where its high dynamic capacity ensures reliable performance under substantial loads. The robust design makes it suitable for demanding industrial environments.

Where Is MG 55mm‑2 Bearing Used?
You’ll often find MG 55mm‑2 Bearing in construction equipment, such as mast guides for telescopic handlers. Its precise dimensions and durability make it a dependable choice for vertical load applications.

Built for Heavy-Duty Use: MG 55mm‑2 Bearing
MG 55mm‑2 Bearing handles intense loads in agricultural machinery, like combine harvesters. The stainless steel construction offers excellent resistance to wear, even in harsh outdoor conditions.

Automotive vs Aerospace: Applications of MG 55mm‑2 Bearing
In automotive systems, MG 55mm‑2 Bearing supports components like steering columns, while in aerospace, it’s used in landing gear mechanisms. The high static capacity ensures safety in critical applications.

Key Fields for MG 55mm‑2 Bearing
MG 55mm‑2 Bearing is ideal for wind turbine yaw systems, where its large outer diameter provides stability. The weight-to-capacity ratio makes it efficient for renewable energy applications.
