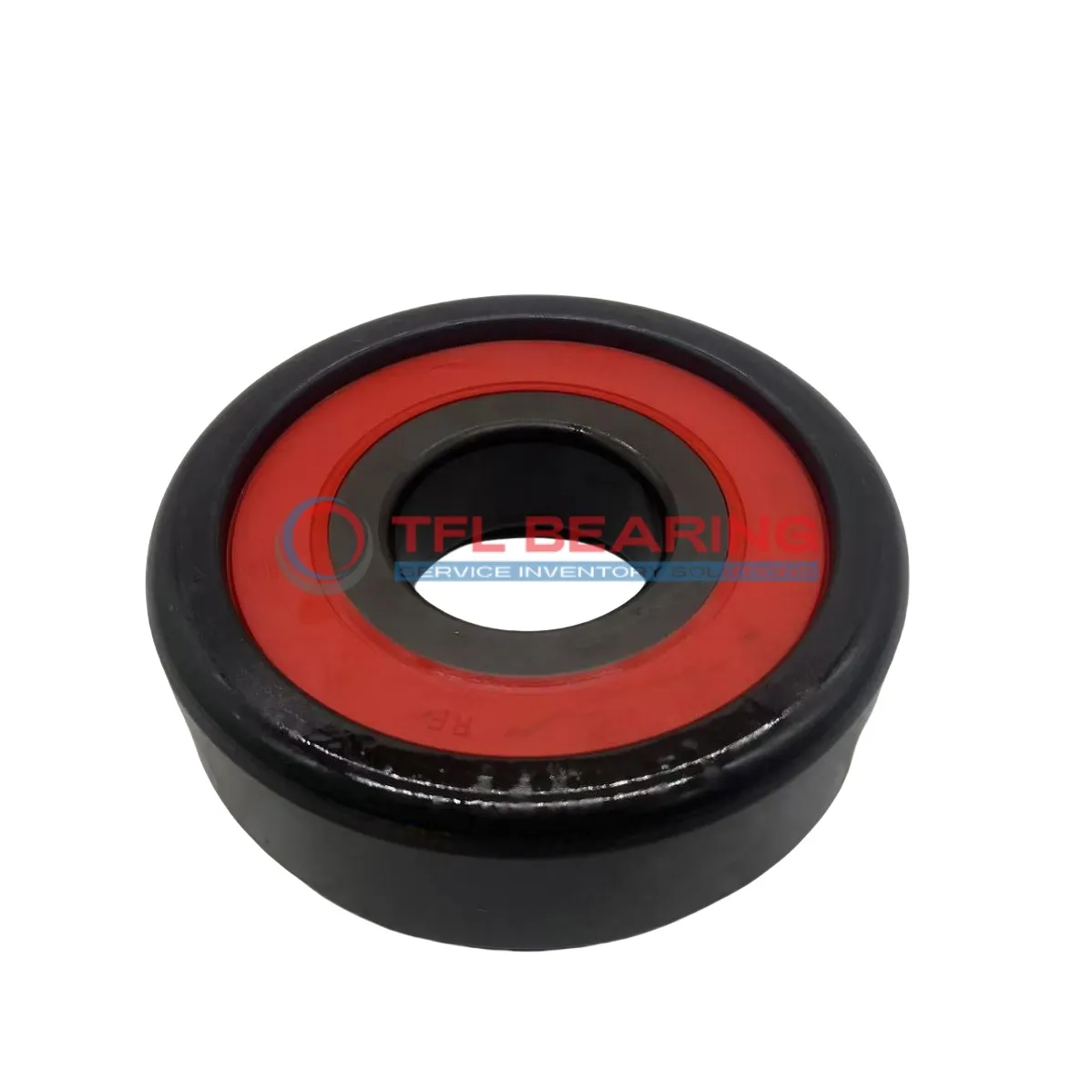

Mast Guide Bearings MG 5311 V4‑G

Mast Guide Bearings MG 5311 V4‑G

The MG 5311 V4‑G is a mast guide bearing with a 55mm inner diameter and 201mm outer diameter, built to withstand heavy loads. It has a dynamic capacity of 138,260 N and a static capacity of 129,400 N, making it suitable for demanding applications.

Its sturdy construction includes a 49.2mm wide inner ring and a 63.5mm wide outer ring, providing stability under pressure. The 1mm radius design helps reduce stress concentrations, enhancing durability.

Weighing just under 10kg, this bearing is robust yet manageable for installation. Ideal for use in construction equipment or industrial machinery where reliability is key. Its dimensions and load capacity make it a practical choice for heavy-duty guidance systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 5311 V4‑G
  • Brand TFL & OEM
  • Inner Diameter (d) 55.000 mm
  • Outer Diameter (D) 201.00 mm
  • Inner Ring Width (b) 49.2 mm
  • Outer Ring Width (B) 63.500 mm
  • Radius (R) 1 mm
  • Dynamic Capacity (Cr.) 138,260 N
  • Static Capacity (Cor.) 129,400 N
  • Weight 9.979 Kg
Mast Guide Bearings MG 5311 V4‑G dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 5311 V4‑G Bearing

MG 5311 V4‑G Bearing is built with a robust design, handling dynamic loads up to 138,260 N and static loads of 129,400 N.

Its dimensions (55.000 mm x 201.00 mm x 63.500 mm) make it suitable for applications requiring precision and durability.

The bearing’s inner and outer ring widths (49.2 mm and 63.500 mm) ensure stability under heavy loads.

With a weight of 9.979 Kg, it offers a balance between strength and manageable installation.

Application

Industrial Uses of MG 5311 V4‑G Bearing
MG 5311 V4‑G Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its high dynamic capacity handles substantial loads effortlessly. The robust design ensures longevity even in demanding environments.

In automation systems, MG 5311 V4‑G Bearing provides smooth guidance for robotic arms and assembly lines, thanks to its precise dimensions and reliable performance. Its weight distribution makes it ideal for repetitive motion tasks.

For wind turbines, MG 5311 V4‑G Bearing’s static capacity supports stable operation under varying wind conditions. The durable construction minimises maintenance needs, making it a cost-effective choice for renewable energy applications.

Where Is MG 5311 V4‑G Bearing Used?
MG 5311 V4‑G Bearing finds its place in material handling systems, like conveyor belts, where its load-bearing capacity ensures uninterrupted operation. The compact design fits seamlessly into existing setups.

In agricultural machinery, MG 5311 V4‑G Bearing withstands harsh conditions, from dust to moisture, while maintaining performance. Its resilience makes it a go-to for farmers and equipment manufacturers alike.

Built for Heavy-Duty Use: MG 5311 V4‑G Bearing
MG 5311 V4‑G Bearing excels in mining equipment, where its high static and dynamic capacities handle extreme loads. The sturdy build reduces downtime, keeping operations running smoothly.

For marine applications, MG 5311 V4‑G Bearing’s corrosion-resistant materials ensure reliability in saltwater environments. It’s a trusted component for shipbuilders and offshore platforms.

Automotive vs Aerospace: Applications of MG 5311 V4‑G Bearing
In automotive manufacturing, MG 5311 V4‑G Bearing supports heavy presses and stamping machines, ensuring precision and durability. Its consistent performance is key to high-volume production lines.

Aerospace applications benefit from MG 5311 V4‑G Bearing’s ability to handle both radial and axial loads in landing gear systems. The lightweight yet strong design meets stringent industry standards.
