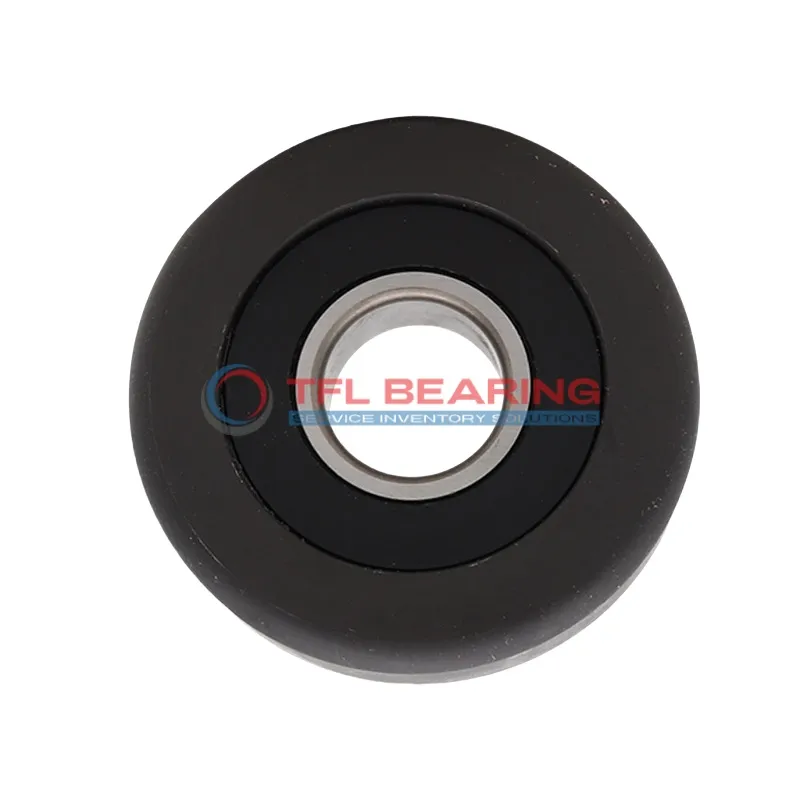

Mast Guide Bearings MG 5309 VFFZ

Mast Guide Bearings MG 5309 VFFZ

The MG 5309 VFFZ mast guide bearing is a sturdy unit measuring 45mm in inner diameter and 162.7mm in outer diameter, with a width of 57.3mm. Its robust design can handle dynamic loads up to 68,000 N and static loads up to 51,000 N.

Made from high-quality materials, this bearing is built for durability and long service life. The 6mm radius ensures smooth operation and reduces stress on the components.

Weighing 7.3kg, it’s a solid choice for heavy-duty applications. Ideal for use in construction equipment or industrial machinery where reliable performance is essential.

Its dimensions and load capacity make it suitable for demanding environments. Easy to install and maintain, it’s a practical option for engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 5309 VFFZ
  • Brand TFL & OEM
  • Inner Diameter (d) 45.000 mm
  • Outer Diameter (D) 162.70 mm
  • Inner Ring Width (b) 39.7 mm
  • Outer Ring Width (B) 57.300 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 68,000 N
  • Static Capacity (Cor.) 51,000 N
  • Weight 7.3028 Kg
Mast Guide Bearings MG 5309 VFFZ dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 5309 VFFZ Bearing

MG 5309 VFFZ Bearing is built with a robust design, featuring an inner diameter of 45.000 mm and an outer diameter of 162.70 mm.
Its dynamic capacity of 68,000 N ensures reliable performance under heavy loads.

The inner ring width of 39.7 mm and outer ring width of 57.300 mm provide stability in various applications.
With a static capacity of 51,000 N, it offers durability and long service life.

The 6 mm radius design enhances load distribution, reducing stress on the bearing components.
Weighing 7.3028 Kg, it balances strength and practicality for industrial use.

Application

Key Fields for MG 5309 VFFZ Bearing
MG 5309 VFFZ Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads with ease, making it reliable for vertical movement applications.

In industrial automation, MG 5309 VFFZ Bearing ensures smooth operation in robotic arms and assembly lines. The high dynamic capacity allows it to perform well under continuous motion and varying loads.

For material handling systems, MG 5309 VFFZ Bearing’s durability makes it suitable for conveyor belts and lifting mechanisms. The precise dimensions ensure a snug fit, reducing wear and tear over time.

In marine applications, MG 5309 VFFZ Bearing withstands harsh conditions like saltwater exposure. The corrosion-resistant materials help maintain performance even in demanding environments.
