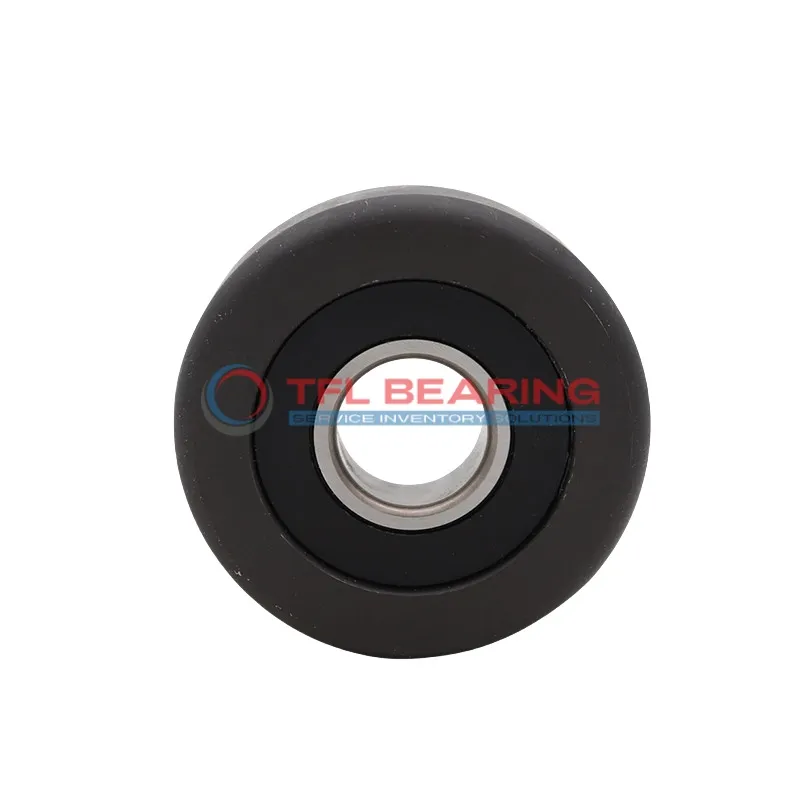

Mast Guide Bearings MG 5206 AC‑1

Mast Guide Bearings MG 5206 AC‑1

The MG 5206 AC‑1 is a mast guide bearing with a 30mm inner diameter and 76.1mm outer diameter, crafted for sturdy performance. It handles dynamic loads up to 28,100N and static loads up to 20,000N, making it reliable for heavy-duty use.

Its compact design, with a width of 28.5mm, fits neatly into tight spaces while maintaining strength. The 2mm radius ensures smooth integration with surrounding components.

This bearing is ideal for mast guidance systems or industrial machinery where precision and durability are key. Weighing 1.79kg, it offers a solid balance of strength and manageability.

Made to OEM standards, it’s a practical choice for replacements or new installations. Its robust construction suits demanding environments without compromising on performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 5206 AC‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 76.10 mm
  • Inner Ring Width (b) 23.8 mm
  • Outer Ring Width (B) 28.500 mm
  • Radius (R) 2 mm
  • Dynamic Capacity (Cr.) 28,100 N
  • Static Capacity (Cor.) 20,000 N
  • Weight 1.7917 Kg
Mast Guide Bearings MG 5206 AC‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 5206 AC-1 Bearing

MG 5206 AC-1 Bearing is built with precise dimensions of 30.000 mm x 76.10 mm x 28.500 mm, ensuring a perfect fit for various applications.
Its dynamic capacity of 28,100 N allows it to handle significant loads with ease.

The bearing’s static capacity reaches 20,000 N, providing reliable performance even under heavy stress.
With a weight of 1.7917 kg, it balances durability and practicality.

MG 5206 AC-1 Bearing’s 2 mm radius design enhances its ability to withstand misalignment.
This makes it suitable for applications where precision and reliability are key.

Application

Industrial Uses of MG 5206 AC‑1 Bearing
MG 5206 AC‑1 Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement, essential for safety and efficiency.

Where Is MG 5206 AC‑1 Bearing Used?
You’ll find MG 5206 AC‑1 Bearing in agricultural machinery, supporting components like harvesters and tractors. Its high dynamic capacity ensures reliable performance even in demanding outdoor conditions.

Built for Heavy-Duty Use: MG 5206 AC‑1 Bearing
MG 5206 AC‑1 Bearing excels in material handling systems, such as conveyor belts and forklifts. The precise dimensions and weight distribution make it ideal for repetitive, high-load applications.

Automotive vs Aerospace: Applications of MG 5206 AC‑1 Bearing
In automotive settings, MG 5206 AC‑1 Bearing is used in steering columns and transmission systems. For aerospace, it’s suited for auxiliary equipment due to its balance of strength and precision.

Perfect Fit for Automation: MG 5206 AC‑1 Bearing
MG 5206 AC‑1 Bearing works well in robotic arms and automated assembly lines. Its durability and smooth operation help maintain consistent performance in high-speed environments.
