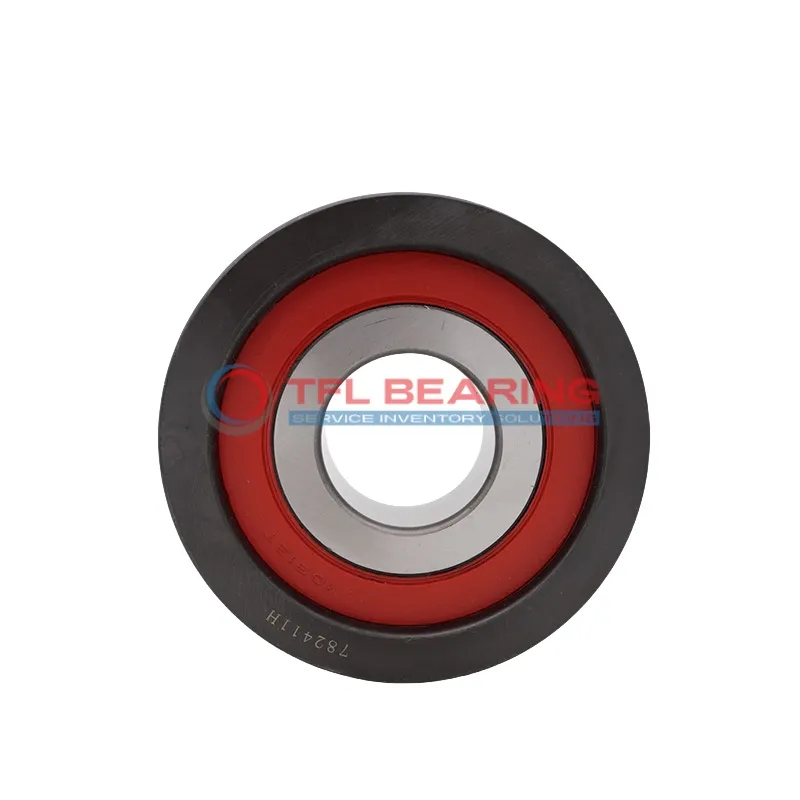

Mast Guide Bearings MG 33mm‑2

Mast Guide Bearings MG 33mm‑2

The MG 33mm-2 mast guide bearing is a sturdy unit measuring 33mm inside and 75.3mm outside, with a width of 24mm. Made for heavy-duty use, it supports dynamic loads up to 19,500N and static loads of 11,680N.

Its compact design features a 6mm radius, ensuring smooth movement in tight spaces. The bearing weighs just under 1kg, making it easy to handle during installation.

This model is ideal for mast guidance systems or industrial machinery where precise movement is needed. Its robust construction ensures reliable performance in demanding conditions.

With a balanced load capacity and durable build, it’s a practical choice for engineers and maintenance teams. The dimensions and weight make it suitable for applications where space and weight are considerations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 33mm‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 33.000 mm
  • Outer Diameter (D) 75.30 mm
  • Inner Ring Width (b) 20.5 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 19,500 N
  • Static Capacity (Cor.) 11,680 N
  • Weight 0.9525 Kg
Mast Guide Bearings MG 33mm‑2 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 33mm‑2 Bearing

MG 33mm‑2 Bearing is built with a robust design, featuring an inner diameter of 33.000 mm and an outer diameter of 75.30 mm.
Its dynamic capacity of 19,500 N ensures reliable performance under heavy loads.

The inner ring width of 20.5 mm and outer ring width of 24.000 mm provide stability in various applications.
With a static capacity of 11,680 N, MG 33mm‑2 Bearing offers durability and long service life.

The 6 mm radius design enhances load distribution, reducing stress on the bearing.
Weighing just 0.9525 Kg, it balances strength and portability for easy handling.

Application

Industrial Uses of MG 33mm-2 Bearing
MG 33mm-2 Bearing is commonly used in construction equipment, especially in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement.

In automation setups, MG 33mm-2 Bearing ensures precise alignment in robotic arms and conveyor belts. The 33mm bore size makes it a versatile fit for various industrial machinery.

For material handling applications, MG 33mm-2 Bearing’s high dynamic capacity of 19,500 N supports consistent performance under stress. The 75.30 mm outer diameter provides stability in demanding environments.

What Makes MG 33mm-2 Bearing a Preferred Choice?
MG 33mm-2 Bearing works well in agricultural machinery, such as harvesters and tractors, where durability is key. Its 24.000 mm width offers a compact yet sturdy solution.

In packaging lines, MG 33mm-2 Bearing helps maintain efficiency in high-speed sorting and filling machines. The stainless steel construction resists wear from constant use.

Built for Heavy-Duty Use: MG 33mm-2 Bearing
MG 33mm-2 Bearing is ideal for forestry equipment, handling rough conditions like vibrations and shocks. The 6 mm radius edge reduces stress concentrations for longer life.

For printing presses, MG 33mm-2 Bearing’s precise dimensions ensure accurate paper feed and alignment. The 0.9525 Kg weight balances strength without adding unnecessary bulk.
