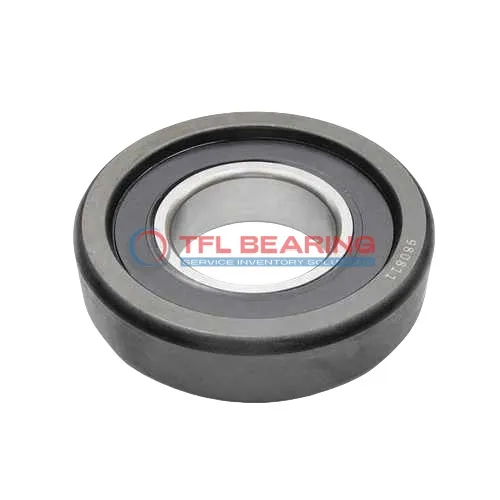

Mast Guide Bearings MG 312 DDM‑3

Mast Guide Bearings MG 312 DDM‑3

The MG 312 DDM‑3 is a mast guide bearing with a 60mm inner diameter and 151mm outer diameter, crafted for heavy-duty use. Its compact width of 36mm makes it suitable for tight spaces, while the 7mm radius ensures smooth operation.

With a dynamic load capacity of 81,750 N and static load capacity of 51,850 N, it handles substantial forces with ease. The bearing’s robust construction ensures reliability in demanding conditions.

Weighing 3.1751 kg, it’s sturdy yet manageable for installation. Ideal for industrial applications like cranes or lifting equipment where precision and durability are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 312 DDM‑3
  • Brand TFL & OEM
  • Inner Diameter (d) 60.000 mm
  • Outer Diameter (D) 151.00 mm
  • Inner Ring Width (b) 31 mm
  • Outer Ring Width (B) 36.000 mm
  • Radius (R) 7 mm
  • Dynamic Capacity (Cr.) 81,750 N
  • Static Capacity (Cor.) 51,850 N
  • Weight 3.1751 Kg
Mast Guide Bearings MG 312 DDM‑3 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 312 DDM‑3 Bearing

MG 312 DDM‑3 Bearing is built to handle dynamic loads up to 81,750 N, making it suitable for heavy-duty applications.
Its static capacity of 51,850 N ensures stability even under high pressure.

The robust design includes a 60 mm inner diameter and 151 mm outer diameter, providing a balanced fit for various machinery.
With a weight of 3.1751 kg, it offers durability without excessive bulk.

The 7 mm radius enhances stress distribution, reducing wear over time.
MG 312 DDM‑3 Bearing’s dimensions (60x151x36 mm) make it versatile for different industrial uses.

Application

Industrial Uses of MG 312 DDM‑3 Bearing
MG 312 DDM‑3 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its robust design handles significant radial loads. The large outer diameter provides stability, making it suitable for demanding environments.

What Makes MG 312 DDM‑3 Bearing a Preferred Choice?
In automation systems, MG 312 DDM‑3 Bearing ensures smooth movement in robotic arms and conveyor belts. Its high dynamic capacity allows it to perform reliably even under continuous operation.

Built for Heavy-Duty Use: MG 312 DDM‑3 Bearing
For wind turbines, MG 312 DDM‑3 Bearing supports the mast guide system, enduring harsh weather conditions. The stainless steel construction offers excellent corrosion resistance, extending its lifespan.

Automotive vs Aerospace: Applications of MG 312 DDM‑3 Bearing
In automotive applications, MG 312 DDM‑3 Bearing is found in suspension systems, providing durability and precision. In aerospace, it aids in landing gear mechanisms, where reliability is critical.

Essential Roles of MG 312 DDM‑3 Bearing
MG 312 DDM‑3 Bearing is vital in agricultural machinery, such as tractors, where it handles heavy loads and rough terrain. The weight distribution ensures balanced performance over long periods.
