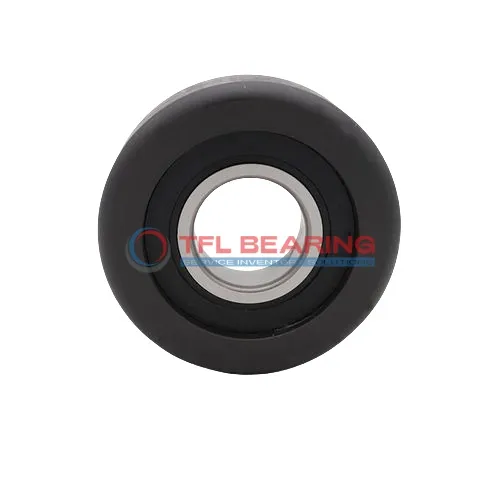

Mast Guide Bearings MG 310 DDT‑5

Mast Guide Bearings MG 310 DDT‑5

The MG 310 DDT‑5 is a mast guide bearing measuring 50mm in inner diameter and 142.8mm in outer diameter, with a width of 41.3mm. Built for heavy-duty use, it supports dynamic loads up to 62,000 N and static loads up to 38,210 N.

Its sturdy construction includes a chamfered edge for easier installation and alignment. The bearing’s design ensures reliable performance in demanding conditions.

Weighing 3.27kg, it’s a robust choice for industrial applications like cranes or lifting equipment. Its dimensions and load capacity make it suitable for machinery requiring precise guidance under heavy loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 310 DDT‑5
  • Brand TFL & OEM
  • Inner Diameter (d) 50.000 mm
  • Outer Diameter (D) 142.80 mm
  • Inner Ring Width (b) 27 mm
  • Outer Ring Width (B) 41.300 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 62,000 N
  • Static Capacity (Cor.) 38,210 N
  • Weight 3.2659 Kg
Mast Guide Bearings MG 310 DDT‑5 dimension drawing
Download DWG Download PDF

Features

How Is MG 310 DDT‑5 Bearing Engineered for Reliability?

MG 310 DDT‑5 Bearing features a robust design with an inner diameter of 50.000 mm and an outer diameter of 142.80 mm, ensuring stability in various applications.
Its dynamic capacity of 62,000 N and static capacity of 38,210 N make it suitable for heavy-duty operations.
The precise dimensions and chamfered edges enhance its durability and ease of installation.
With a weight of 3.2659 Kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of MG 310 DDT‑5 Bearing
MG 310 DDT‑5 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its high dynamic capacity ensures reliable performance under substantial loads. The chamfered edges help with easy installation and alignment in tight spaces.

Where Is MG 310 DDT‑5 Bearing Used?
You’ll often find MG 310 DDT‑5 Bearing in construction equipment, like mast guides, where its sturdy design handles vertical movements smoothly. Its static capacity makes it suitable for applications requiring stability under heavy loads.

Built for Heavy-Duty Use: MG 310 DDT‑5 Bearing
MG 310 DDT‑5 Bearing excels in industrial settings, particularly in material handling systems that demand durability. The wide outer ring provides additional support, making it a dependable choice for long-term use.

Automotive vs Aerospace: Applications of MG 310 DDT‑5 Bearing
In automotive applications, MG 310 DDT‑5 Bearing supports components like steering columns, while in aerospace, it’s used in landing gear systems. Its balanced design ensures performance across different load conditions.
