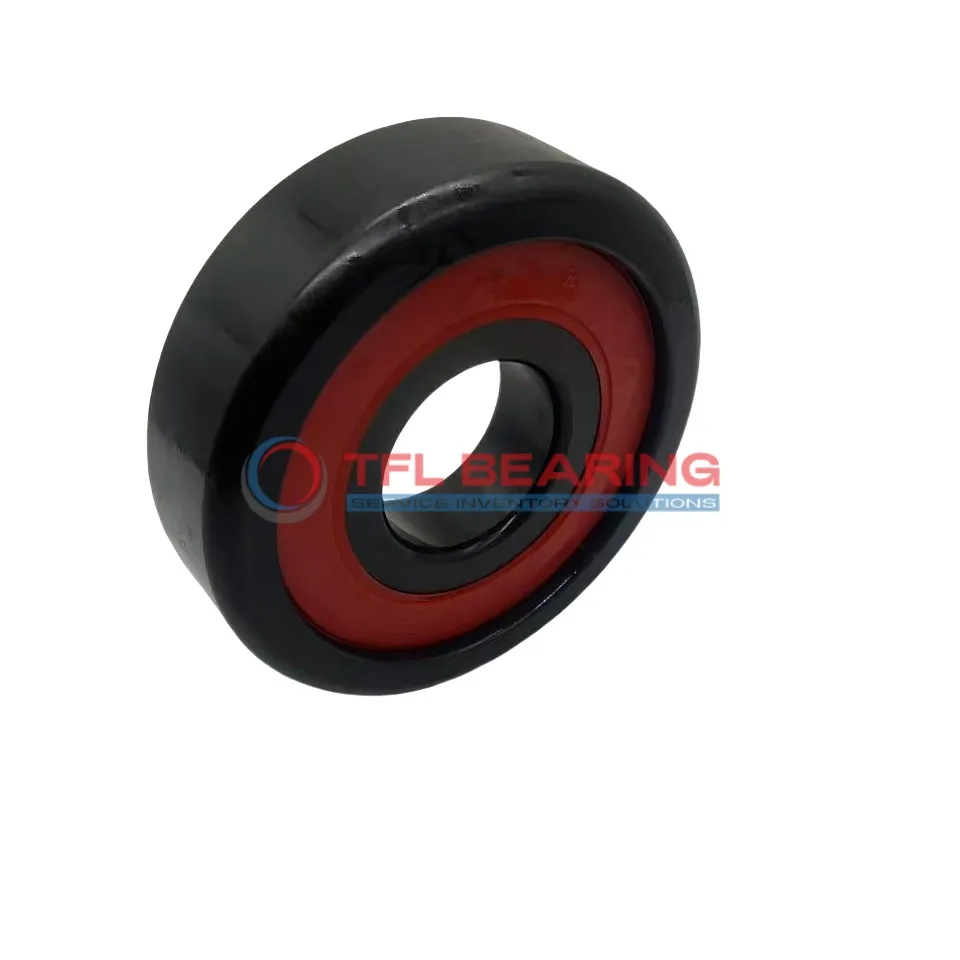

Mast Guide Bearings MG 308 T‑17

Mast Guide Bearings MG 308 T‑17

The MG 308 T‑17 mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 118.5mm in outer diameter, with a width of 28mm. Made for heavy-duty use, it supports dynamic loads up to 40,760 N and static loads up to 24,020 N.

Its robust construction includes a 23mm inner ring width and a 7mm radius, ensuring smooth operation under stress. The bearing weighs 1.63kg, offering a good balance between strength and manageability.

This model is ideal for mast guidance systems or other applications requiring reliable load support. Its durable design makes it a practical choice for industrial machinery or construction equipment.

With its precise dimensions and high load capacity, it’s a dependable option for demanding environments. The bearing’s straightforward design also simplifies installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 T‑17
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 118.50 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 7 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.6329 Kg
Mast Guide Bearings MG 308 T‑17 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 T‑17 Bearing

MG 308 T‑17 Bearing is built with precise dimensions of 40.000 mm x 118.50 mm x 28.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 40,760 N allows it to handle significant loads with ease.
The bearing’s static capacity of 24,020 N ensures stability even under heavy pressure.
With a weight of 1.6329 Kg, it offers a balance of strength and manageability.

Application

Industrial Uses of MG 308 T‑17 Bearing
MG 308 T‑17 Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its high dynamic capacity handles significant loads. The robust design ensures longevity even in demanding environments.

In automotive applications, MG 308 T‑17 Bearing fits well in steering systems and suspension components, providing reliable performance under constant stress. Its precise dimensions make it a suitable choice for various vehicle models.

For automation systems, MG 308 T‑17 Bearing supports robotic arms and conveyor belts, offering smooth movement and reduced friction. The durable construction minimizes maintenance needs, ideal for continuous operation.

Where Is MG 308 T‑17 Bearing Used?
MG 308 T‑17 Bearing is often found in agricultural machinery, such as tractors and harvesters, where its static capacity ensures stability under heavy loads. The wide inner ring width adds extra support for prolonged use.

In material handling equipment, MG 308 T‑17 Bearing excels in cranes and forklifts, thanks to its high load-bearing capabilities. The smooth radius design reduces wear, extending the bearing’s service life.

Built for Heavy-Duty Use: MG 308 T‑17 Bearing
MG 308 T‑17 Bearing is a go-to choice for mining equipment, where its chrome steel construction withstands harsh conditions. The balanced weight distribution enhances performance in high-vibration settings.

For wind turbines, MG 308 T‑17 Bearing ensures efficient rotation in generator systems, handling both radial and axial loads. Its corrosion-resistant materials make it suitable for outdoor installations.

Light-Duty vs Heavy-Duty: Best Uses for MG 308 T‑17 Bearing
In light-duty applications like small pumps, MG 308 T‑17 Bearing provides reliable performance with minimal maintenance. Its compact size fits seamlessly into tight spaces.

For heavy-duty industrial fans, MG 308 T‑17 Bearing’s high dynamic capacity ensures smooth operation at varying speeds. The sturdy design reduces downtime, making it a cost-effective solution.
