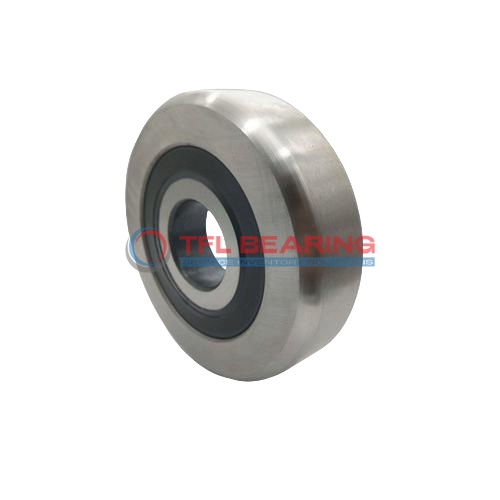

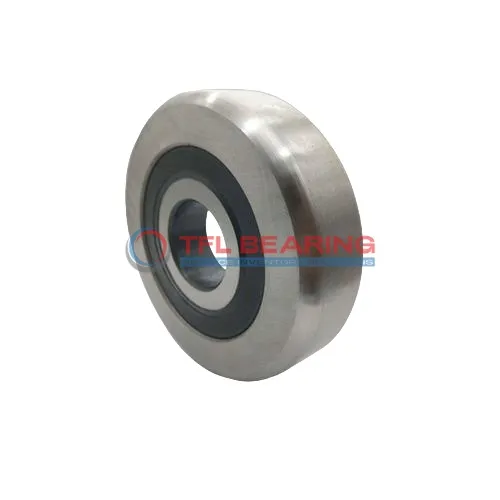

Mast Guide Bearings MG 308 FFN‑2

Mast Guide Bearings MG 308 FFN‑2

The MG 308 FFN‑2 is a mast guide bearing with a 40mm inner diameter and 115.4mm outer diameter, designed for sturdy performance. It handles dynamic loads up to 40,760 N and static loads up to 24,020 N, making it reliable for heavy-duty use.

With an inner ring width of 23mm and outer ring width of 32mm, it offers a balanced design for smooth operation. The 5mm radius ensures easy installation and reduces stress on the bearing.

Weighing 1.7917kg, it’s robust yet manageable for its size. Ideal for applications like construction equipment or industrial machinery where stability and load capacity are key.

Its durable construction suits demanding environments, providing long-lasting service with minimal maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFN‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 115.40 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 32.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.7917 Kg
Mast Guide Bearings MG 308 FFN‑2 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 FFN‑2 Bearing

MG 308 FFN‑2 Bearing is built with a robust design, handling dynamic loads up to 40,760 N for reliable performance.
Its static capacity of 24,020 N ensures stability in various applications.

The dimensions of 40.000 mm x 115.40 mm x 32.000 mm make it suitable for compact spaces.
With a weight of 1.7917 Kg, it balances strength and portability.

The 5 mm radius design enhances durability and reduces stress concentrations.
This bearing is ideal for applications requiring high load capacity and precise dimensions.

Application

Industrial Uses of MG 308 FFN‑2 Bearing
MG 308 FFN‑2 Bearing is commonly used in construction equipment, such as mast guide systems, where its robust design handles heavy loads with ease. The large outer diameter provides stability, making it suitable for demanding environments.

In automotive applications, MG 308 FFN‑2 Bearing can be found in steering columns and suspension components, offering reliable performance under constant movement. Its high dynamic capacity ensures longevity even in high-stress conditions.

For automation systems, MG 308 FFN‑2 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The stainless steel construction helps resist wear, making it a dependable choice for continuous operation.

What Makes MG 308 FFN‑2 Bearing a Preferred Choice?
MG 308 FFN‑2 Bearing stands out in industrial settings due to its balanced load distribution and smooth operation. The 40,760 N dynamic capacity makes it ideal for heavy machinery.

In household appliances like washing machines, MG 308 FFN‑2 Bearing reduces vibration and noise, enhancing user comfort. Its corrosion-resistant materials ensure a long service life even in humid conditions.

For medical imaging devices, MG 308 FFN‑2 Bearing provides quiet and precise movement, crucial for accurate diagnostics. The lightweight design also helps in reducing overall equipment strain.
