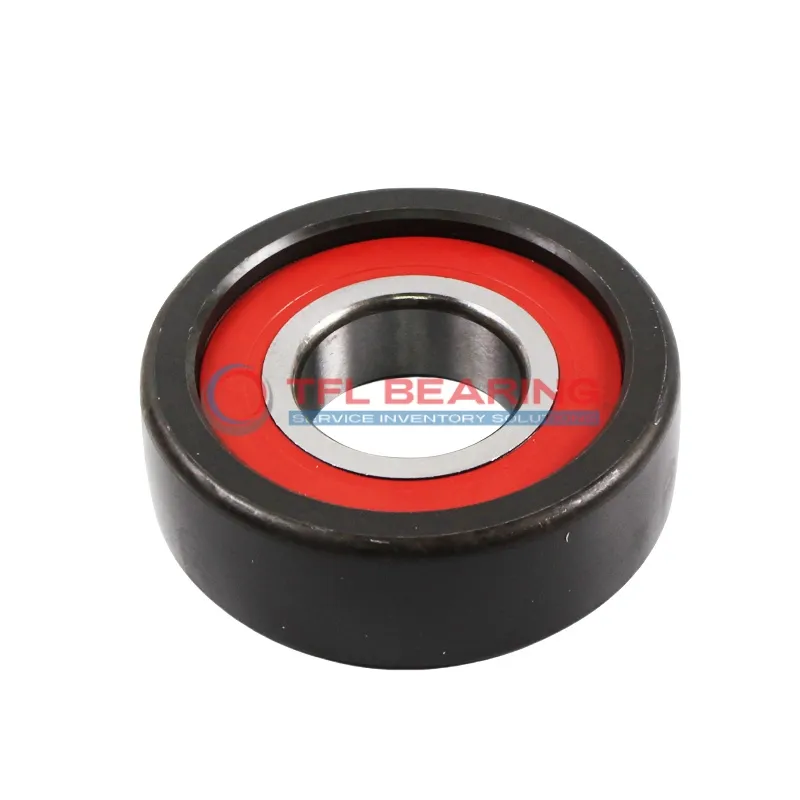

Mast Guide Bearings MG 308 DDM

Mast Guide Bearings MG 308 DDM

The MG 308 DDM mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 98.9mm in outer diameter, with a width of 27mm. Built to handle dynamic loads up to 40,760 N, it’s a reliable choice for heavy-duty applications.

Its chrome steel construction ensures durability, while the 7mm radius provides smooth operation. The bearing’s design allows for easy installation and maintenance.

With a static capacity of 24,020 N, it’s suitable for machinery requiring steady support. Ideal for use in construction equipment or industrial setups where precision and strength are key.

Weighing just under 1kg, it’s lightweight yet robust for its size. A practical option for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 DDM
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 98.90 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 27.000 mm
  • Radius (R) 7 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 0.9752 Kg
Mast Guide Bearings MG 308 DDM dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 DDM Bearing

MG 308 DDM Bearing is built with a robust design, featuring an inner diameter of 40.000 mm and an outer diameter of 98.90 mm.
Its dynamic capacity of 40,760 N ensures reliable performance under heavy loads.

The bearing’s inner ring width of 23 mm and outer ring width of 27.000 mm provide stability in various applications.
With a static capacity of 24,020 N, it offers durability and long service life.

MG 308 DDM Bearing’s radius of 7 mm allows for smooth operation and reduced stress concentrations.
Weighing just 0.9752 Kg, it combines strength with ease of handling.

Application

Industrial Uses of MG 308 DDM Bearing
MG 308 DDM Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high dynamic capacity ensures reliable performance under tough conditions. The robust design makes it suitable for handling significant radial loads.

In automotive applications, MG 308 DDM Bearing can be found in steering systems and suspension components, providing smooth operation and durability. Its precise dimensions and weight make it a practical fit for various vehicle models.

For automation systems, MG 308 DDM Bearing supports robotic arms and conveyor belts, offering stability and long service life. The stainless steel construction helps resist wear in high-speed environments.

What Makes MG 308 DDM Bearing a Preferred Choice?
MG 308 DDM Bearing is ideal for industrial fans and blowers, where its balanced design reduces vibration and noise. The high static capacity ensures it can handle sudden load changes without issues.

In material handling equipment, MG 308 DDM Bearing excels due to its durability and ease of maintenance. The standardised dimensions allow for straightforward replacement in most systems.
