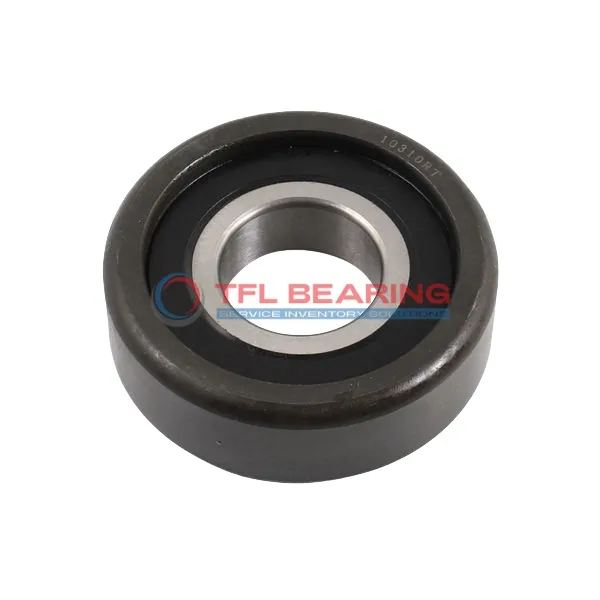

Mast Guide Bearings MG 308 DDL‑10

Mast Guide Bearings MG 308 DDL‑10

The MG 308 DDL‑10 is a mast guide bearing measuring 40mm in inner diameter and 90.8mm in outer diameter, with a width of 29mm. Its compact yet sturdy design makes it suitable for various industrial applications.

With a dynamic load capacity of 29,520 N and a static load capacity of 18,140 N, it handles heavy loads with ease. The bearing’s robust construction ensures reliable performance under demanding conditions.

Featuring a 6mm radius, it fits smoothly into assemblies, reducing stress on adjacent components. The chrome steel material provides excellent durability and resistance to wear.

Weighing just under 1kg, it’s easy to handle and install. Ideal for use in construction equipment or machinery where precise guidance and load support are needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 DDL‑10
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 90.80 mm
  • Inner Ring Width (b) 23.8 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 29,520 N
  • Static Capacity (Cor.) 18,140 N
  • Weight 0.9525 Kg
Mast Guide Bearings MG 308 DDL‑10 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 DDL‑10 Bearing

MG 308 DDL‑10 Bearing is built with precise dimensions of 40.000 mm x 90.80 mm x 29.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 29,520 N allows it to handle significant loads with ease.
The bearing’s static capacity of 18,140 N ensures stability even under heavy pressure.
With a weight of 0.9525 Kg, it balances durability and ease of installation.

Application

Industrial Uses of MG 308 DDL‑10 Bearing
MG 308 DDL‑10 Bearing is commonly used in mast guide systems, providing smooth vertical movement for construction equipment like cranes and lifts. Its robust design handles dynamic loads effectively, ensuring reliable performance in demanding environments.

What Makes MG 308 DDL‑10 Bearing a Preferred Choice?
With a dynamic capacity of 29,520 N, MG 308 DDL‑10 Bearing is well-suited for heavy machinery where consistent load support is needed. The precise dimensions and weight distribution make it ideal for applications requiring stability and durability.

Built for Heavy-Duty Use: MG 308 DDL‑10 Bearing
MG 308 DDL‑10 Bearing excels in industrial settings, particularly in equipment subjected to frequent load changes. The 6 mm radius design reduces stress concentrations, extending the bearing’s service life even under tough conditions.

Automotive vs Aerospace: Applications of MG 308 DDL‑10 Bearing
In automotive systems, MG 308 DDL‑10 Bearing can be found in steering mechanisms, offering precise control. For aerospace, its high static capacity of 18,140 N makes it suitable for auxiliary equipment requiring dependable load handling.
