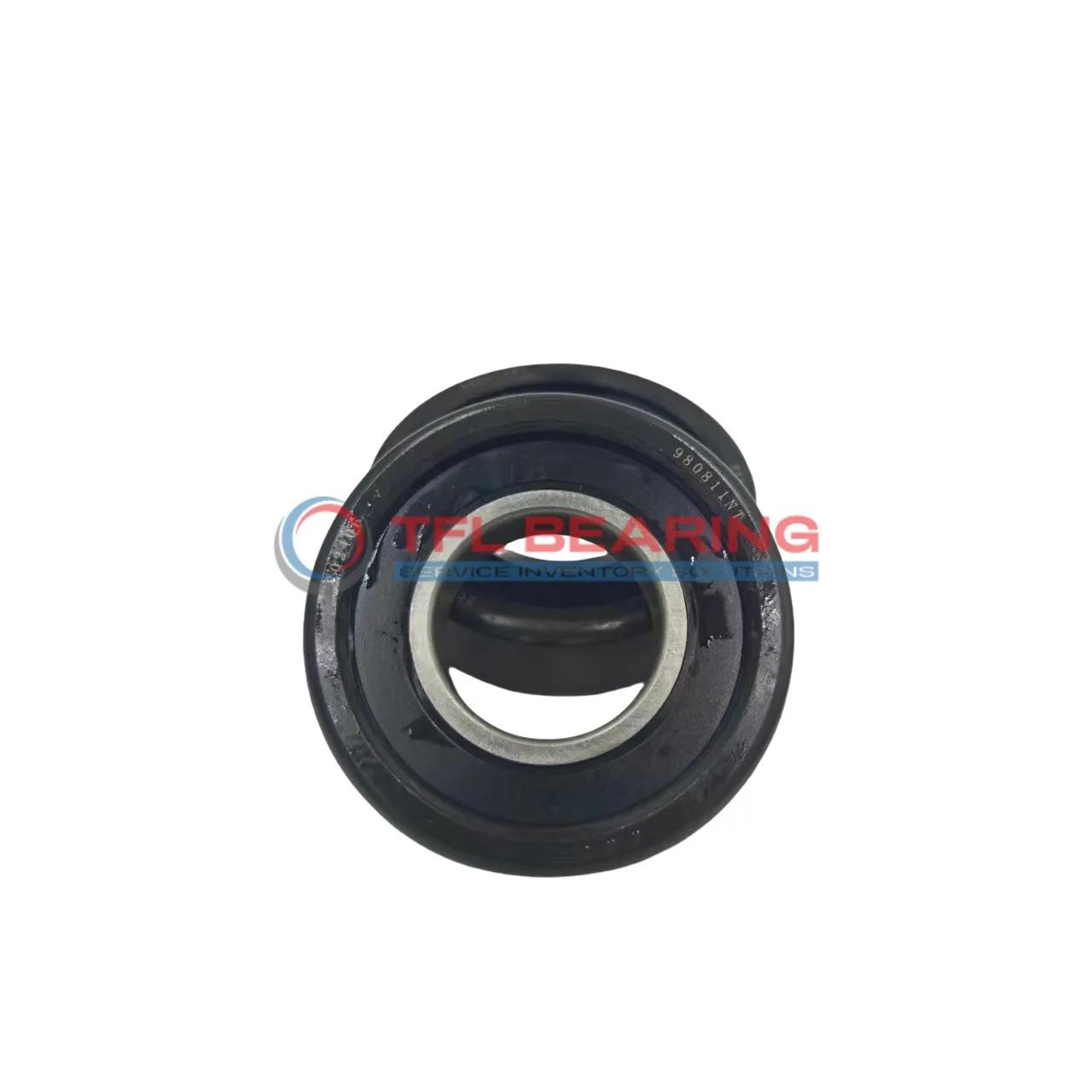

Mast Guide Bearings MG 307 T‑4

Mast Guide Bearings MG 307 T‑4

The MG 307 T‑4 is a mast guide bearing with a 35mm inner diameter and 108.1mm outer diameter, designed for sturdy performance. It handles dynamic loads up to 33,360 N and static loads up to 19,200 N, making it reliable for heavy-duty use.

With an inner ring width of 21mm and outer ring width of 25mm, it offers a compact yet robust design. The 5mm radius ensures smooth operation and reduces stress on the bearing.

Weighing 1.2973kg, it’s solidly built for applications like construction equipment or industrial machinery. Its durable construction makes it a practical choice for demanding environments.

This bearing is interchangeable with OEM parts, providing a cost-effective solution for replacements. Ideal for scenarios where stability and load capacity are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 T‑4
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 108.10 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 33,360 N
  • Static Capacity (Cor.) 19,200 N
  • Weight 1.2973 Kg
Mast Guide Bearings MG 307 T‑4 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 T‑4 Bearing

MG 307 T‑4 Bearing is built with a robust design, offering a dynamic capacity of 33,360 N for reliable performance.
Its static capacity of 19,200 N ensures stability even under heavy loads.

The dimensions of 35.000 mm x 108.10 mm x 25.000 mm make it suitable for various industrial applications.
With a weight of 1.2973 kg, it balances strength and ease of handling.

The 5 mm radius design enhances durability, reducing stress concentrations.
This makes MG 307 T‑4 Bearing a dependable choice for demanding environments.

Application

Industrial Uses of MG 307 T‑4 Bearing
MG 307 T‑4 Bearing is commonly used in heavy machinery, such as cranes and lifting equipment, where its robust design handles significant radial loads. The 35mm bore size makes it suitable for various industrial shafts.

In automotive applications, MG 307 T‑4 Bearing can be found in steering systems and suspension components, providing reliable performance under constant movement. Its 108.10mm outer diameter ensures a stable fit in most assemblies.

For automation systems, MG 307 T‑4 Bearing supports robotic arms and conveyor belts, thanks to its high dynamic capacity of 33,360 N. The 25mm width offers a compact yet durable solution for tight spaces.

Where Is MG 307 T‑4 Bearing Used?
MG 307 T‑4 Bearing is ideal for construction equipment, like excavators, where its static capacity of 19,200 N ensures longevity. The 5mm radius design also reduces stress concentrations.

In agricultural machinery, MG 307 T‑4 Bearing works well in tractors and harvesters, handling dirt and debris with ease. The chrome steel construction provides excellent resistance to wear.

For wind turbines, MG 307 T‑4 Bearing’s 1.2973 kg weight balances strength and efficiency, making it a smart choice for renewable energy applications. Its precision engineering ensures smooth rotation even in harsh conditions.
