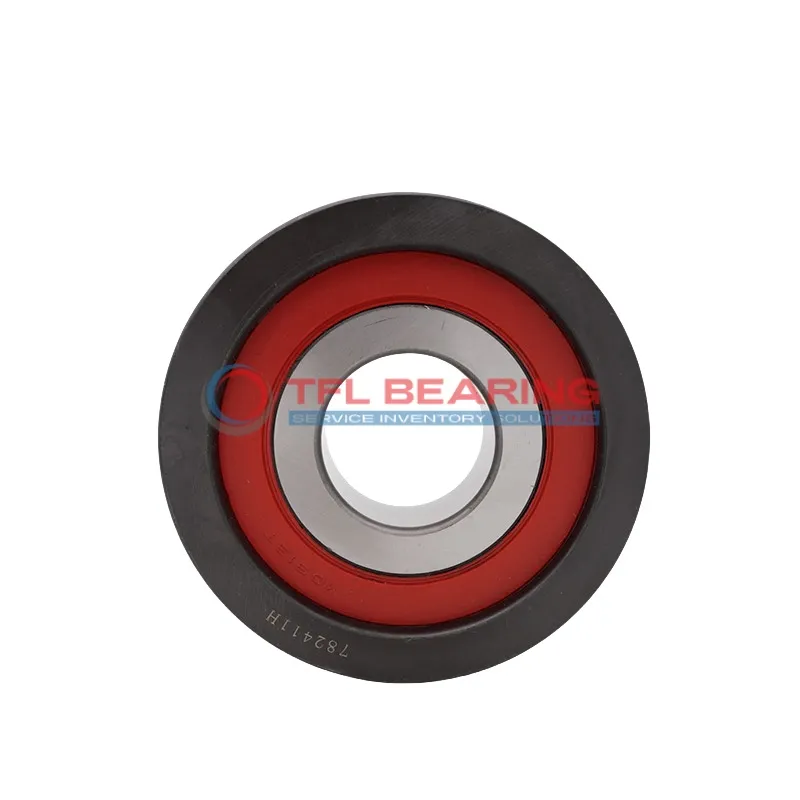

Mast Guide Bearings MG 307 KK‑1

Mast Guide Bearings MG 307 KK‑1

The MG 307 KK‑1 mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 107.8mm in outer diameter, with a width of 31mm. Made for heavy-duty use, it handles dynamic loads up to 33,540 N and static loads up to 19,230 N.

Its robust design includes a 6.5mm radius, providing smooth operation under stress. The bearing weighs 1.52kg, offering a good balance between strength and manageability.

This model is ideal for mast guidance systems or other applications requiring reliable support and durability. Its dimensions and load capacity make it a practical choice for industrial machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 KK‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 107.80 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 31.000 mm
  • Radius (R) 6.5 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.5195 Kg
Mast Guide Bearings MG 307 KK‑1 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 KK-1 Bearing Engineered for Reliability?

MG 307 KK-1 Bearing features a robust design with an inner diameter of 35.000 mm and an outer diameter of 107.80 mm, ensuring stability under load.
Its dynamic capacity of 33,540 N and static capacity of 19,230 N make it suitable for demanding applications.
The bearing’s inner ring width of 21 mm and outer ring width of 31.000 mm provide balanced support.
With a weight of 1.5195 kg, it offers durability without excessive bulk.

Application

Industrial Uses of MG 307 KK‑1 Bearing
MG 307 KK‑1 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles significant radial loads. The 35mm bore size makes it suitable for various shaft configurations.

Where Is MG 307 KK‑1 Bearing Used?
You’ll often find MG 307 KK‑1 Bearing in conveyor systems and material handling equipment, thanks to its high dynamic capacity of 33,540 N. Its 107.80mm outer diameter provides stability in demanding industrial environments.

Built for Heavy-Duty Use: MG 307 KK‑1 Bearing
MG 307 KK‑1 Bearing excels in applications like crane pulleys and lifting gear, where its 31mm outer ring width ensures durability. The 6.5mm radius design also helps reduce stress concentrations.

Automotive vs Aerospace: Applications of MG 307 KK‑1 Bearing
In automotive settings, MG 307 KK‑1 Bearing supports components like steering columns, while in aerospace, it’s used in auxiliary systems. Its 1.5195 kg weight balances strength and practicality for both fields.
