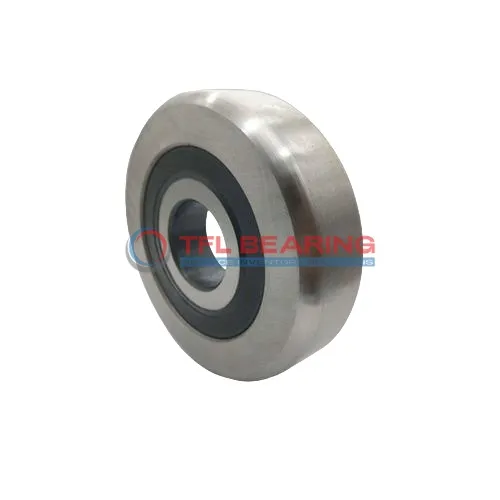

Mast Guide Bearings MG 307 FL‑1

Mast Guide Bearings MG 307 FL‑1

The MG 307 FL‑1 is a mast guide bearing with a 35mm inner diameter and 116.5mm outer diameter, designed for sturdy performance. It handles dynamic loads up to 33,450 N and static loads up to 19,230 N, making it reliable for heavy-duty use.

Its compact design, with a width of 30.15mm, fits well in tight spaces while maintaining strength. The 3mm radius ensures smooth operation and reduces stress on the bearing.

This bearing is ideal for mast guide applications, where stability and load capacity are key. Its durable construction makes it suitable for industrial machinery or lifting equipment.

Weighing just under a kilogram, it offers a good balance of strength and portability. A practical choice for engineers and maintenance teams needing dependable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FL‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 116.50 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 30.150 mm
  • Radius (R) 3 mm
  • Dynamic Capacity (Cr.) 33,450 N
  • Static Capacity (Cor.) 19,230 N
Mast Guide Bearings MG 307 FL‑1 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 FL‑1 Bearing Engineered for Reliability?

MG 307 FL‑1 Bearing features a robust design with an inner diameter of 35.000 mm and outer diameter of 116.50 mm, ensuring stability under heavy loads.
Its dynamic capacity of 33,450 N and static capacity of 19,230 N make it suitable for demanding applications.
The precise dimensions and radius of 3 mm contribute to smooth operation and reduced wear.
With an outer ring width of 30.150 mm, it offers a balanced fit for various machinery setups.

Application

Industrial Uses of MG 307 FL‑1 Bearing
MG 307 FL‑1 Bearing is commonly used in industrial settings, especially in mast guide systems for cranes and lifts. Its robust design handles dynamic loads efficiently, making it suitable for heavy machinery.

In automotive applications, MG 307 FL‑1 Bearing provides stability in steering columns and suspension systems. The precise dimensions ensure a smooth fit and reliable performance under various conditions.

For automation equipment, MG 307 FL‑1 Bearing supports robotic arms and conveyor belts. Its high dynamic capacity allows it to withstand frequent movement without compromising durability.

In medical devices, MG 307 FL‑1 Bearing’s smooth operation is ideal for imaging equipment and surgical tools. The stainless steel construction ensures long-lasting performance in sterile environments.

Around the home, MG 307 FL‑1 Bearing can be found in garage door openers and power tools. Its compact size and strength make it a versatile choice for everyday mechanical needs.
