Mast Guide Bearings MG 307 FFKA

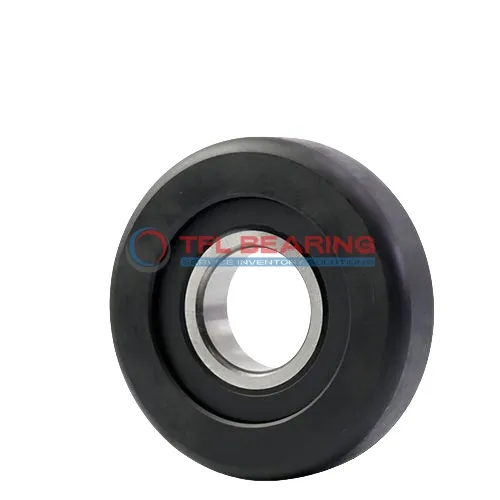

Mast Guide Bearings MG 307 FFKA

The MG 307 FFKA mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 114.5mm in outer diameter, with a width of 28mm. Made for heavy-duty use, it handles dynamic loads up to 33,540N and static loads up to 19,230N.

Its robust design includes a 7mm radius for smoother operation, while the 21/25mm inner ring width provides stability. The bearing weighs just 0.86kg, offering a good balance of strength and portability.

This model is ideal for mast guidance systems or similar applications where reliable load support is needed. Its durable construction ensures long service life even in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFKA
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 114.50 mm
  • Inner Ring Width (b) 21/25 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 7 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 0.8618 Kg
Mast Guide Bearings MG 307 FFKA dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 FFKA Bearing

MG 307 FFKA Bearing is built with a robust design, featuring an inner diameter of 35.000 mm and an outer diameter of 114.50 mm.
Its dynamic capacity of 33,540 N ensures reliable performance under heavy loads.
The bearing’s inner ring width of 21/25 mm and outer ring width of 28.000 mm provide stability in various applications.
With a weight of 0.8618 Kg, it offers a balance between strength and ease of handling.

Application

Industrial Uses of MG 307 FFKA Bearing
MG 307 FFKA Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its robust design handles high radial loads effortlessly. The 35mm bore size makes it a versatile fit for various shaft configurations.

In automotive applications, MG 307 FFKA Bearing is found in steering systems and wheel hubs, providing reliable performance under constant stress. Its 114.50mm outer diameter ensures stability even in high-vibration environments.

For automation systems, MG 307 FFKA Bearing supports robotic arms and conveyor belts, thanks to its precise dimensions and smooth operation. The 28mm width offers a compact yet durable solution for space-constrained setups.

Where Is MG 307 FFKA Bearing Used?
MG 307 FFKA Bearing excels in wind turbine yaw systems, where its dynamic capacity of 33,540 N ensures long-term reliability. The stainless steel construction also resists corrosion in outdoor conditions.

In agricultural machinery, MG 307 FFKA Bearing is ideal for gearboxes and PTO shafts, handling both radial and axial loads with ease. The 7mm radius edge allows for smoother integration into complex assemblies.
