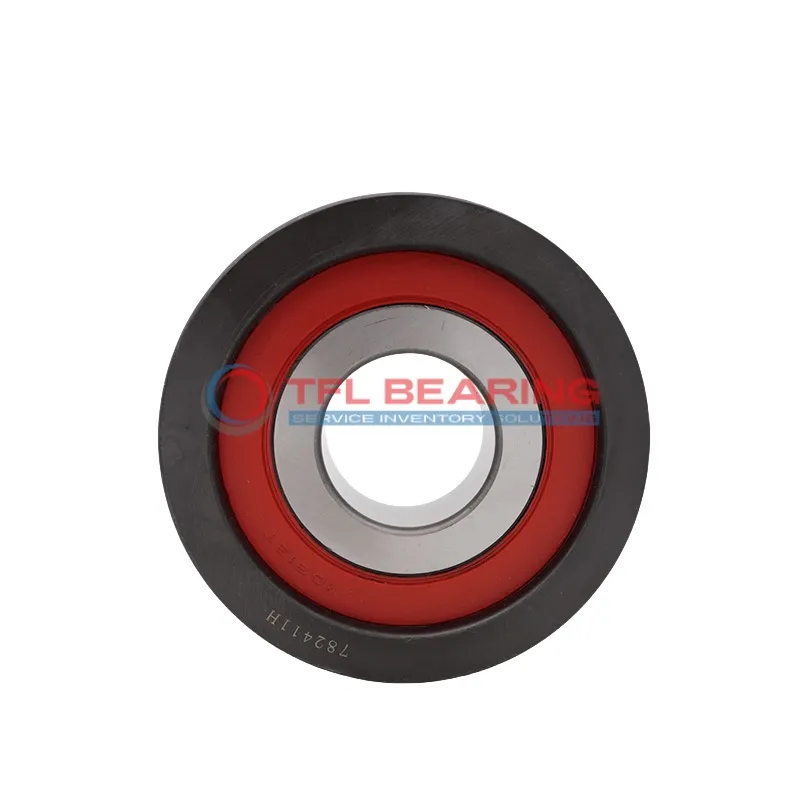

Mast Guide Bearings MG 307/34 DDL‑17

Mast Guide Bearings MG 307/34 DDL‑17

The MG 307/34 DDL‑17 is a mast guide bearing with a 34mm inner diameter and 105mm outer diameter, crafted for robust performance. It handles dynamic loads up to 95,640 N and static loads up to 115,300 N, making it suitable for heavy-duty applications.

With a compact width of 9mm on the inner ring and 34mm on the outer ring, it fits neatly into tight spaces. The 6mm radius ensures smooth integration with surrounding components.

Weighing 1.7463 kg, it’s sturdy yet manageable for installation. Ideal for use in construction equipment or industrial machinery where precise guidance and load support are needed.

Its durable design ensures long service life, even in demanding environments. A reliable choice for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307/34 DDL‑17
  • Brand TFL & OEM
  • Inner Diameter (d) 34.000 mm
  • Outer Diameter (D) 105.00 mm
  • Inner Ring Width (b) 9 mm
  • Outer Ring Width (B) 34.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 95,640 N
  • Static Capacity (Cor.) 115,300 N
  • Weight 1.7463 Kg
Mast Guide Bearings MG 307/34 DDL‑17 dimension drawing
Download DWG Download PDF

Features

How Is MG 307/34 DDL‑17 Bearing Engineered for Reliability?

MG 307/34 DDL‑17 Bearing features a robust design with an inner diameter of 34.000 mm and an outer diameter of 105.00 mm.
Its dynamic capacity of 95,640 N ensures it can handle significant loads with ease.
The bearing’s static capacity of 115,300 N further enhances its reliability in demanding applications.
With a weight of 1.7463 Kg, it offers a balance of strength and practicality.

Application

Industrial Uses of MG 307/34 DDL‑17 Bearing
MG 307/34 DDL‑17 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its robust design handles significant radial loads. The high dynamic capacity ensures reliable performance in demanding environments.

Where Is MG 307/34 DDL‑17 Bearing Used?
You’ll often find MG 307/34 DDL‑17 Bearing in industrial applications like conveyor systems and material handling equipment. Its durable construction and precise dimensions make it a dependable choice for continuous operation.

Built for Heavy-Duty Use: MG 307/34 DDL‑17 Bearing
MG 307/34 DDL‑17 Bearing excels in applications requiring stability and strength, such as mining equipment and agricultural machinery. The stainless steel components provide excellent resistance to wear and corrosion.

Automotive vs Aerospace: Applications of MG 307/34 DDL‑17 Bearing
In automotive systems, MG 307/34 DDL‑17 Bearing supports components like gearboxes and drivetrains, offering smooth operation under load. For aerospace, its precision and reliability make it suitable for landing gear and control systems.

Essential Roles of MG 307/34 DDL‑17 Bearing
MG 307/34 DDL‑17 Bearing plays a key role in wind turbines, where its high static capacity ensures long-term performance. The lightweight design also reduces overall system weight, improving efficiency.
