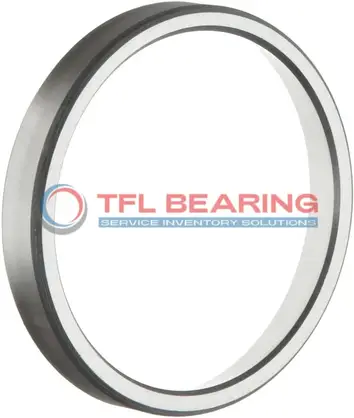

M38511 Single Cups (Imperial)

M38511 Single Cups (Imperial)

The M38511 is a single cup tapered roller bearing with an outer diameter of 2.5979 inches and a width of 0.6563 inches, made from sturdy chrome steel. It fits well with Timken bearings, making it a handy replacement option.

This cup handles standard loads and operates smoothly in temperatures from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial use.

The design features precise tolerances, with the outer diameter and width carefully controlled for a secure fit. The chrome steel construction offers good durability under typical working conditions.

Ideal for machinery requiring tapered roller bearings, such as gearboxes or wheel hubs. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Its interchangeable nature with Timken models adds to its versatility in maintenance and repair scenarios. The standard series design makes it easy to source and install.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M38511
  • Brand TFL
  • Interchangeable Timken
  • Size 2.28" x 2.5979" x 0.6563"
  • Outer Dia 2.5979"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.6563"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.09"
  • Cup Frontface Backing Diameter 2.46"
  • Cup Backface Backing Diameter 2.28"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number M38545-M38511 , M38547-M38511 , M38549-M38511 , M38549H-M38511
  • Cups Type Standard
  • Series M38500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose M38511 Single Cups for Precision Tasks?

M38511 Single Cups are made from chrome steel, offering durability and resistance to wear in tapered roller bearing applications.
The precise outer diameter of 2.5979″ ensures a snug fit, maintaining alignment under load.
With a temperature range of -30° to 110°C, M38511 Single Cups perform reliably in various conditions.
Their ABEC-1 rating guarantees consistent quality for industrial and automotive uses.

Application

Industrial Uses of M38511 Bearing
M38511 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered design handles radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is M38511 Bearing Used?
You’ll often spot M38511 Bearing in automotive wheel hubs and drivetrains, thanks to its reliable performance under high stress. Its inch sizing makes it a go-to for older or imperial-system vehicles.

Built for Heavy-Duty Use: M38511 Bearing
M38511 Bearing excels in industrial fans and conveyor systems, where its tapered rollers manage uneven loads smoothly. The standard cup design simplifies installation and maintenance.

Automotive vs Industrial: Applications of M38511 Bearing
In trucks, M38511 Bearing supports axle assemblies, while in factories, it keeps conveyor rollers running smoothly. Its versatility stems from the balanced load capacity and robust chrome steel build.

Perfect Fit for Machinery: M38511 Bearing
M38511 Bearing works well in gearboxes and pumps, offering steady performance even with frequent load changes. The ABEC-1 rating ensures consistent precision for general industrial needs.
