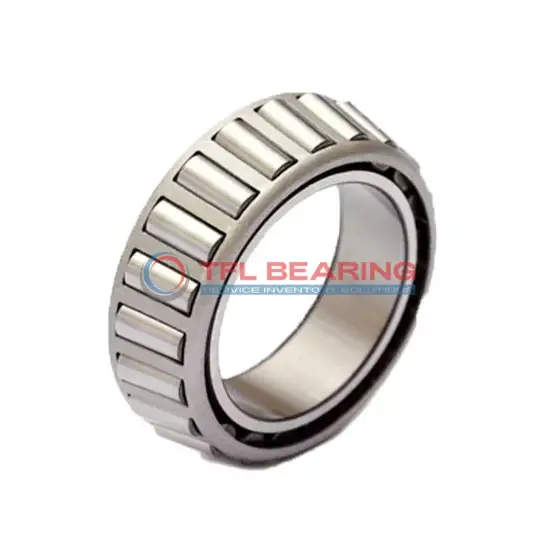

M231648 Single Cones (Imperial)

M231648 Single Cones (Imperial)

The M231648 is a single-row tapered roller bearing cone with a 6-inch bore, designed for combined loads. Made from sturdy chrome steel, it handles dynamic radial loads up to 84,600 lbf and static loads up to 150,000 lbf.

Its open design allows easy maintenance, while the steel cage ensures durability. The cone width is 1.8437 inches, with precise tolerances for reliable performance.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

It operates in temperatures from -30°C to 110°C and meets RoHS and REACH standards. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M231648
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number M231648-M231610 , M231648-M231610V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series M231600
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.8437"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.31"
  • Cone Frontface Backing Diameter 6.42"
  • Cone Backface Backing Diameter 7.01"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.21"
  • Effective Center Location -0.24"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 84600 lbf
  • Static Radial Load 150000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 21900 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 147000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12500 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 38200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of M231648 Bearing

M231648 Bearing is crafted from chrome steel, offering strong resistance to combined loads with a dynamic radial load capacity of 84,600 lbf.
Its tapered roller design ensures smooth operation and efficient load distribution.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, M231648 Bearing performs reliably in various conditions.

M231648 Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent performance for industrial needs.

Application

Industrial Uses of M231648 Bearing
M231648 Bearing is commonly used in heavy machinery like construction equipment and mining conveyors, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is M231648 Bearing Used?
You’ll find M231648 Bearing in industrial gearboxes and large-scale power transmission systems, thanks to its high dynamic radial load capacity. Its inch sizing makes it a natural fit for North American machinery standards.

Built for Heavy-Duty Use: M231648 Bearing
M231648 Bearing excels in applications like railway axles and agricultural machinery, where reliability under heavy loads is key. The steel cage provides added strength for long-term performance.

Automotive vs Aerospace: Applications of M231648 Bearing
In automotive wheel hubs, M231648 Bearing offers stable performance, while its aerospace applications include auxiliary gear systems. The ABEC-1 rating ensures consistent precision across both sectors.

Perfect Fit for Automation: M231648 Bearing
M231648 Bearing works well in automated assembly lines, particularly in robotic arms handling heavy payloads. Its standard radial clearance allows for smooth operation in repetitive motion scenarios.
