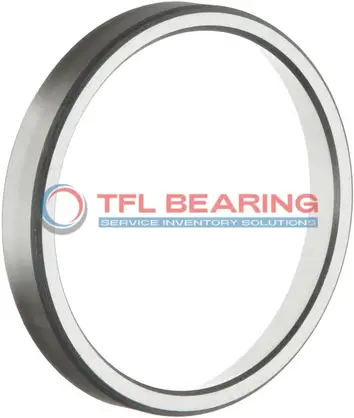

LM67019 Single Cups (Imperial)

LM67019 Single Cups (Imperial)

The LM67019 is a single cup tapered roller bearing with an outer diameter of 2.6487 inches and a width of 0.64 inches, crafted from durable chrome steel. It fits well with various tapered roller bearings, making it versatile for different setups.

Its standard cup design ensures easy installation and compatibility with Timken equivalents, ideal for replacements or upgrades. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With an ABEC-1 rating, it offers reliable precision for general industrial use. The cup’s robust construction handles moderate loads while maintaining stability.

Suitable for applications like conveyor systems or automotive components, where tapered roller bearings are needed. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM67019
  • Brand TFL
  • Interchangeable Timken
  • Size 2.17" x 2.6487" x 0.64"
  • Outer Dia 2.6487"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.64"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.05"
  • Cup Frontface Backing Diameter 2.40"
  • Cup Backface Backing Diameter 2.17"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number LM67045-LM67019 , LM67047-LM67019 , LM67048-LM67019 , LM67049A-LM67019
  • Cups Type Standard
  • Series LM67000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of LM67019 Bearing

LM67019 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures smooth operation under heavy loads, making it suitable for industrial use.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, enhancing overall performance.
With a temperature range of -30° to 110°C, LM67019 Bearing performs reliably in diverse environments.

Interchangeable with Timken and other part numbers, LM67019 Bearing provides flexibility in replacements.
Its ABEC-1 rating ensures consistent quality and performance for standard applications.

Application

Industrial Uses of LM67019 Bearing
LM67019 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is LM67019 Bearing Used?
You’ll often find LM67019 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken equivalents. Its robust design makes it reliable for long-term use.

Built for Heavy-Duty Use: LM67019 Bearing
LM67019 Bearing excels in industrial gearboxes and conveyor systems, where its standard cup type simplifies installation and maintenance. The ABEC-1 rating ensures consistent performance for general precision needs.

Automotive vs Industrial: Applications of LM67019 Bearing
In automotive settings, LM67019 Bearing supports smooth rotation in drivetrains, while in industrial settings, it’s ideal for pulley systems and heavy-load bearings. Its temperature range suits both environments well.
