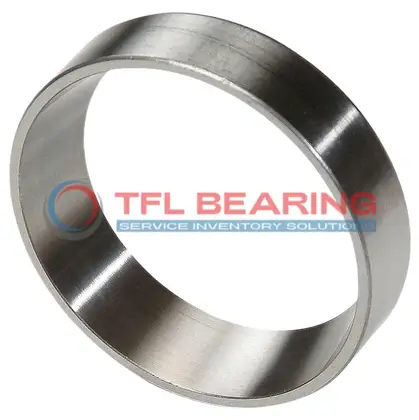

LM603019 Single Cups (Imperial)

LM603019 Single Cups (Imperial)

The LM603019 is a single cup tapered roller bearing with an outer diameter of 3.0625″ and a width of 0.6562″, made from sturdy chrome steel. It fits well with Timken models, making it a handy replacement option.

Its standard cup design ensures easy installation and reliable performance, even in temperatures ranging from -30°C to 110°C. The ABEC-1 rating provides decent precision for general applications.

This bearing is part of the LM603000 series, known for its durability and compatibility. Ideal for use in machinery or automotive systems where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for various industrial needs. The compact size and robust build make it suitable for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM603019
  • Brand TFL
  • Interchangeable Timken
  • Size 2.76" x 3.0625" x 0.6562"
  • Outer Dia 3.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.6562"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 2.94"
  • Cup Backface Backing Diameter 2.76"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number LM603049-LM603019 , LM603049AS-LM603019
  • Cups Type Standard
  • Series LM603000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose LM603019 Single Cups for Precision Tasks?

LM603019 Single Cups are made from chrome steel, offering durability and resistance to wear in tapered roller bearing applications.
Their precise dimensions, including an outer diameter of 3.0625″ with tight tolerances, ensure reliable fit and performance.
The standard cup design works seamlessly with LM603049 cones, providing smooth operation under various loads.
With a temperature range of -30° to 110°C, they perform well in diverse operating conditions.

Application

Industrial Uses of LM603019 Bearing
LM603019 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is LM603019 Bearing Used?
You’ll often find LM603019 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise imperial sizing. Its compatibility with Timken models makes it a versatile choice for repairs and upgrades.

Built for Heavy-Duty Use: LM603019 Bearing
LM603019 Bearing excels in industrial conveyor systems, where its robust design supports continuous operation. The standard cup type simplifies installation and maintenance, reducing downtime.

Automotive vs Aerospace: Applications of LM603019 Bearing
In automotive settings, LM603019 Bearing is ideal for drivetrain components, while its precision also suits aerospace landing gear systems. The ABEC-1 rating ensures reliable performance across both fields.

Perfect Fit for Automation: LM603019 Bearing
LM603019 Bearing works well in automated assembly lines, where its tapered rollers provide smooth motion control. The inch measurements make it easy to integrate into existing machinery.
