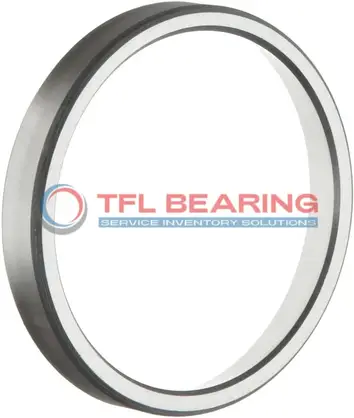

LM48514 Single Cups (Imperial)

LM48514 Single Cups (Imperial)

The LM48514 is a single cup tapered roller bearing with an outer diameter of 2.6875 inches and a width of 0.55 inches, crafted from durable chrome steel. It fits well with Timken equivalents, making it a versatile choice for replacements.

Designed for standard applications, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial use.

The cup features precise tolerances, with a backface backing diameter of 2.32 inches and a frontface backing diameter of 2.52 inches. Its compact design and robust construction make it suitable for machinery requiring tapered roller bearings.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial settings. Ideal for use in gearboxes, axles, and other heavy-duty applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM48514
  • Brand TFL
  • Interchangeable Timken
  • Size 2.32" x 2.6875" x 0.55"
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.55"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.05"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number LM48548-LM48514 , LM48548A-LM48514 , LM48548C-LM48514 , LM48548P-LM48514 , LM48549-LM48514 , LM48549X-LM48514
  • Cups Type Standard
  • Series LM48500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of LM48514 Bearing

LM48514 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures smooth operation and efficient load distribution.

The standard cup type and precise dimensions (2.6875″ outer diameter) provide a reliable fit for interchangeable use.
With an ABEC-1 rating, it balances performance and affordability for general industrial needs.

LM48514 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
Its compliance with RoHS and REACH standards ensures safety and environmental responsibility.

Application

Common Applications of LM48514 Bearing
LM48514 Bearing is widely used in industrial settings, especially in heavy machinery like conveyor systems and gearboxes. Its tapered roller design helps manage both radial and axial loads efficiently.

In automotive applications, LM48514 Bearing is often found in wheel hubs and differential systems. The chrome steel construction ensures durability under varying road conditions.

For agricultural equipment, LM48514 Bearing provides reliable performance in tractors and harvesters. Its standard cup type makes it easy to replace in field maintenance scenarios.

LM48514 Bearing also suits construction machinery, such as cranes and excavators. The inch sizing ensures compatibility with equipment designed to imperial measurements.
