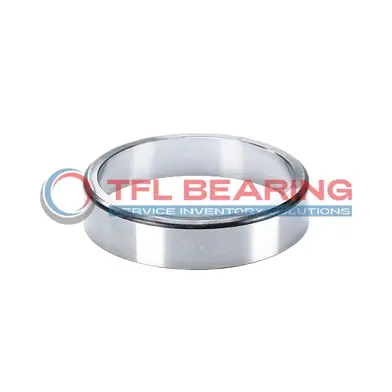

LL529710 Single Cups (Imperial)

LL529710 Single Cups (Imperial)

The LL529710 is a single cup bearing with an outer diameter of 7.4063 inches and a width of 0.6563 inches, crafted from durable chrome steel. It fits well with Timken bearings, making it a versatile replacement option.

Designed for tapered roller bearings, it handles moderate loads and operates smoothly in temperatures from -30°C to 110°C. Its standard cup design ensures easy installation and reliable performance.

With an ABEC-1 rating, it offers good precision for general industrial use. The cup’s backing diameters (7.20″ front and 7.05″ back) provide a secure fit in housings.

Ideal for machinery requiring sturdy cup bearings, such as conveyor systems or agricultural equipment. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LL529710
  • Brand TFL
  • Interchangeable Timken
  • Size 7.05" x 7.4063" x 0.6563"
  • Outer Dia 7.4063"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.6563"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 7.20"
  • Cup Backface Backing Diameter 7.05"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number LL529749-LL529710
  • Cups Type Standard
  • Series LL529700
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is LL529710 Bearing Engineered for Reliability?

LL529710 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, it operates reliably in varied environments.

LL529710 Bearing meets ABEC-1 standards, ensuring consistent quality and smooth operation.
Its interchangeable design with Timken models provides flexibility for replacements and upgrades.

Application

Industrial Uses of LL529710 Bearing
LL529710 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is LL529710 Bearing Used?
You’ll often find LL529710 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for equipment designed to imperial measurements.

Built for Heavy-Duty Use: LL529710 Bearing
LL529710 Bearing excels in industrial fans and pumps, where its tapered rollers provide smooth operation under varying loads. The standard cup design simplifies installation and maintenance.

Automotive vs Aerospace: Applications of LL529710 Bearing
In automotive applications, LL529710 Bearing supports axle systems, offering stability under high stress. For aerospace, its precision and temperature tolerance make it suitable for auxiliary equipment.

Perfect Fit for Automation: LL529710 Bearing
LL529710 Bearing works well in conveyor systems and automated assembly lines, where consistent performance is key. The ABEC-1 rating ensures reliable operation for general industrial needs.
