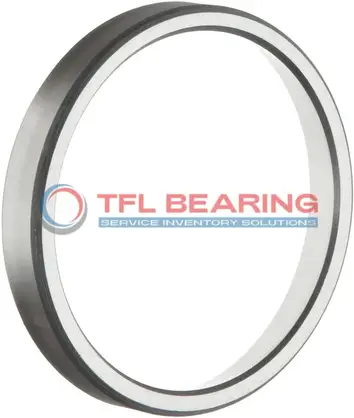

L68116 Single Cups (Imperial)

L68116 Single Cups (Imperial)

The L68116 is a single cup tapered roller bearing with an outer diameter of 2.5625 inches and a width of 0.47 inches, crafted from durable chrome steel. It fits well with Timken equivalents, making it a versatile replacement option.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general applications.

The cup features precise tolerances and a sturdy construction, ideal for handling moderate loads. It’s commonly used in automotive and industrial machinery where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for various mechanical setups. Its compact size and robust design make it easy to integrate into existing systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L68116
  • Brand TFL
  • Interchangeable Timken
  • Size 2.17" x 2.5625" x 0.47"
  • Outer Dia 2.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.47"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.05"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.17"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number L68149-L68116 , L68149A-L68116 , L68149P-L68116
  • Cups Type Standard
  • Series L68100
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of L68116 Bearing

L68116 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, it performs reliably in diverse environmental conditions.

L68116 Bearing is interchangeable with Timken models, providing flexibility for replacements.
Its standard cup type and ABEC-1 rating ensure consistent quality and smooth operation.

Application

Common Applications of L68116 Bearing
L68116 Bearing is widely used in industrial settings, especially in conveyor systems and heavy machinery, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, L68116 Bearing fits well in wheel hubs and gearboxes, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For agricultural equipment, L68116 Bearing’s robust design supports machinery like tractors and harvesters, where consistent operation is key. The standard cup type simplifies installation and maintenance.

Where Is L68116 Bearing Used?
You’ll often find L68116 Bearing in construction equipment, such as bulldozers and cranes, where its tapered rollers manage heavy loads smoothly. The ABEC-1 rating ensures adequate precision for these applications.

In mining machinery, L68116 Bearing’s chrome steel rings withstand harsh conditions, reducing downtime. Its compatibility with Timken models makes it a versatile choice for replacements.

Built for Heavy-Duty Use: L68116 Bearing
L68116 Bearing excels in forestry equipment, like log splitters, where its tapered rollers handle high stress. The cup width tolerance allows for precise fitting in rugged setups.

For railway applications, L68116 Bearing supports axle boxes, ensuring stable performance over long distances. The temperature range suits both cold and moderately hot climates.

Automotive vs Industrial: Applications of L68116 Bearing
In automotive repairs, L68116 Bearing is a go-to for wheel bearings due to its durability and ease of installation. The inch measurements align with many classic car specs.

In industrial presses, L68116 Bearing’s tapered design manages high radial loads, keeping operations smooth. The chrome steel material resists wear even with frequent use.
