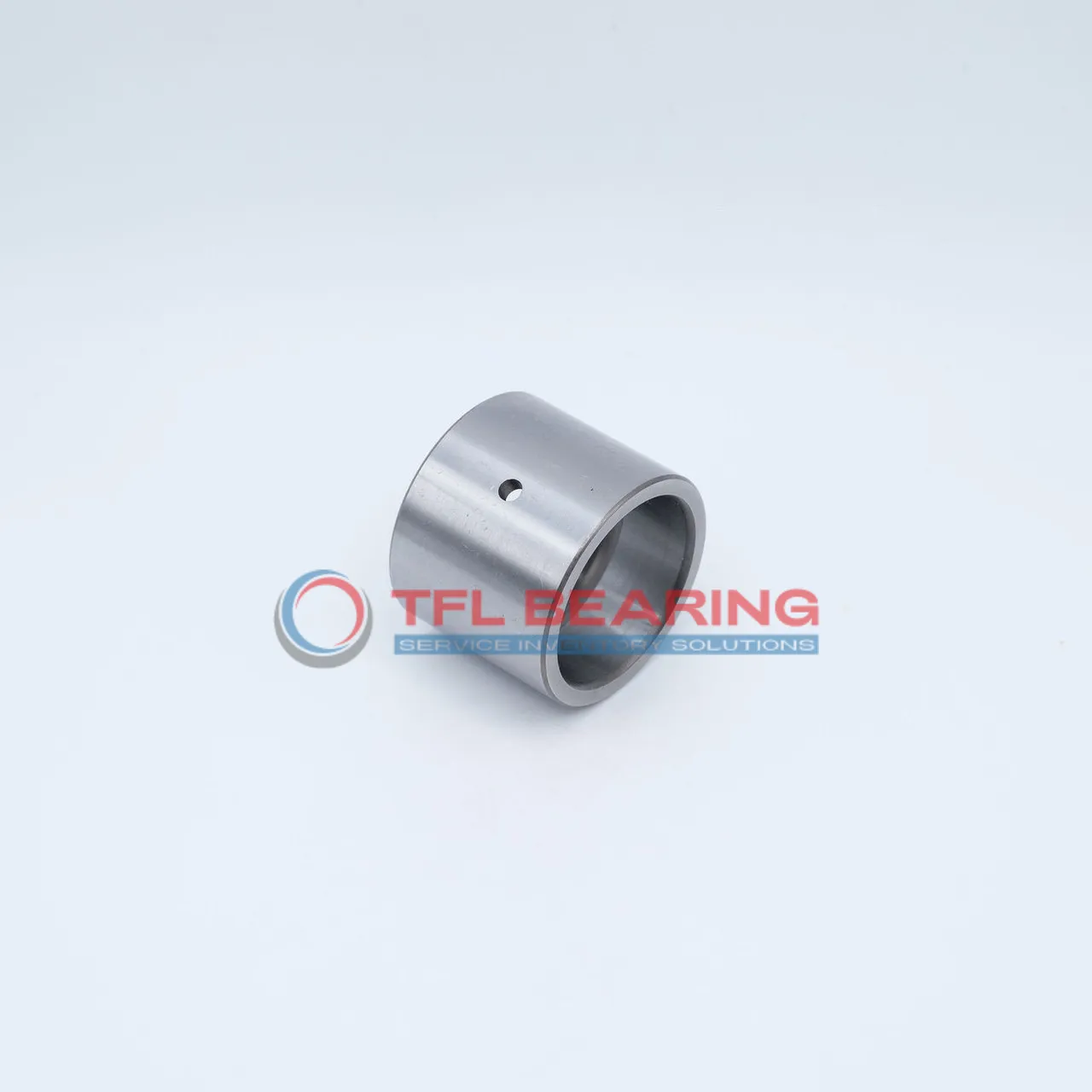

Inner Rings PI101406

Inner Rings PI101406

The PI101406 is a needle roller bearing inner ring with a 0.625″ bore and 0.875″ outer diameter, made from sturdy chrome steel. Its compact width of 0.375″ makes it suitable for tight spaces.
This component is designed to work with needle roller bearings, offering smooth rotation and good load handling. The chrome steel construction ensures durability and resistance to wear.
It’s interchangeable with INA bearings, providing flexibility for replacements or upgrades. The inch measurements make it ideal for machinery using imperial units.
Weighing just 13.6g, it’s lightweight yet robust. Compliant with RoHS standards, it’s safe for various industrial applications. Perfect for use in gearboxes or automotive systems where space is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number PI101406
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Series PI
  • Bore Dia 0.625"
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 0.875"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 0.375"
  • Width Tolerance -0.25mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 13.6 g
Inner Rings PI101406 dimension drawing
Download DWG Download PDF

Features

Performance Features of PI101406 Bearing
PI101406 Bearing is crafted from chrome steel, offering durability and resistance to wear in needle roller applications.
Its inch-sized design ensures compatibility with systems requiring precise measurements.
The lubrication feature of PI101406 Bearing enhances smooth operation, reducing friction during use.
With a bore diameter of 0.625″ and outer diameter of 0.875″, it fits seamlessly into various assemblies.
PI101406 Bearing’s compact width of 0.375″ makes it suitable for space-constrained applications.
Its RoHS compliance ensures it meets environmental standards while maintaining performance.

Application

Key Fields for PI101406 Bearing
PI101406 Bearing is commonly used in automotive transmissions, where its needle roller design handles high radial loads efficiently. The inch sizing makes it a good fit for older or custom-built vehicle systems.
In industrial gearboxes, PI101406 Bearing’s chrome steel construction ensures durability under continuous operation. Its compact width allows for space-saving designs without compromising performance.
For small machinery like power tools, PI101406 Bearing provides smooth rotation thanks to its lubricated design. The lightweight build also helps reduce overall equipment weight while maintaining reliability.
