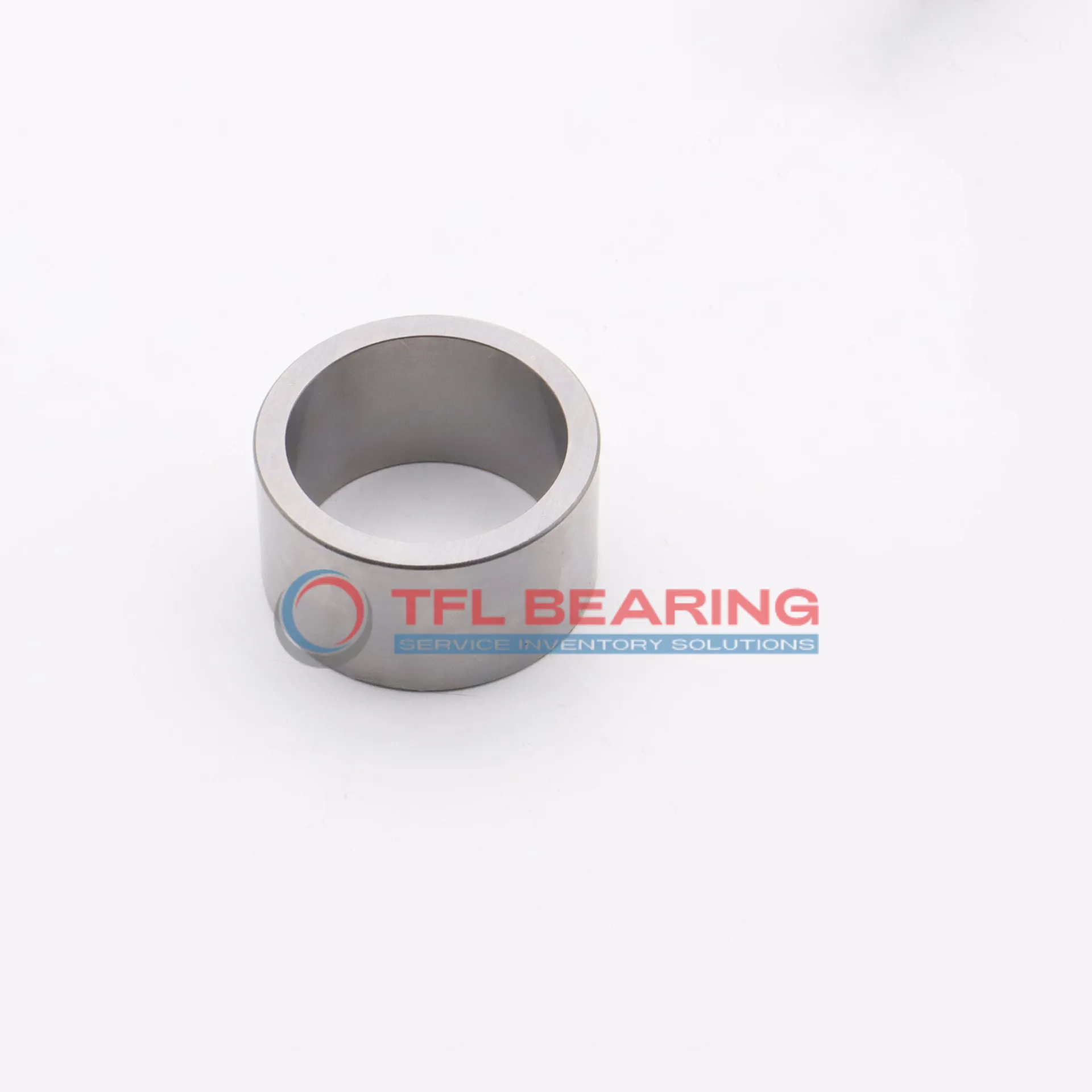

Inner Rings PI060908

Inner Rings PI060908

The PI060908 is a needle roller bearing inner ring with a 0.375″ bore and 0.5625″ outer diameter, made from sturdy chrome steel. It’s designed for smooth operation and comes pre-lubricated for easy use.
This lightweight ring weighs just 8.5 grams, making it suitable for compact applications. Its inch measurements make it compatible with systems using imperial units.
The PI series part is interchangeable with INA bearings, offering flexibility for replacements. It’s ideal for use in small machinery or automotive components where space is limited.
Compliant with RoHS standards, this inner ring is a reliable choice for various industrial needs. Its simple design ensures straightforward installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number PI060908
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Series PI
  • Bore Dia 0.375"
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 0.5625"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 0.5"
  • Width Tolerance -0.25mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.5 g
Inner Rings PI060908 dimension drawing
Download DWG Download PDF

Features

Why Choose PI060908 Bearing for Precision Tasks?
PI060908 Bearing is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The inch-based measurements provide compatibility with systems requiring imperial units.
With a lubricated design, PI060908 Bearing maintains smooth operation over extended periods.
RoHS compliance ensures it meets environmental standards without compromising performance.
Its lightweight construction at 8.5 grams makes it ideal for applications where weight matters.

Application

Key Fields for PI060908 Bearing
PI060908 Bearing is commonly used in industrial machinery, especially in compact spaces where needle rollers are needed for high load capacity. Its inch sizing makes it a good fit for older equipment still using imperial measurements.

In automotive applications, PI060908 Bearing works well in gearboxes and steering systems, thanks to its durable chrome steel construction. The lubricated design helps reduce friction, extending the lifespan of moving parts.

For automation projects, PI060908 Bearing is handy in robotic arms and small conveyor systems. Its narrow width allows for efficient use in tight assemblies without sacrificing performance.

You’ll also find PI060908 Bearing in some household tools, like electric drills, where its lightweight design and reliability are appreciated. The small size doesn’t compromise its ability to handle steady loads.
