Inner Rings IR90X105X63-XL

Inner Rings IR90X105X63-XL

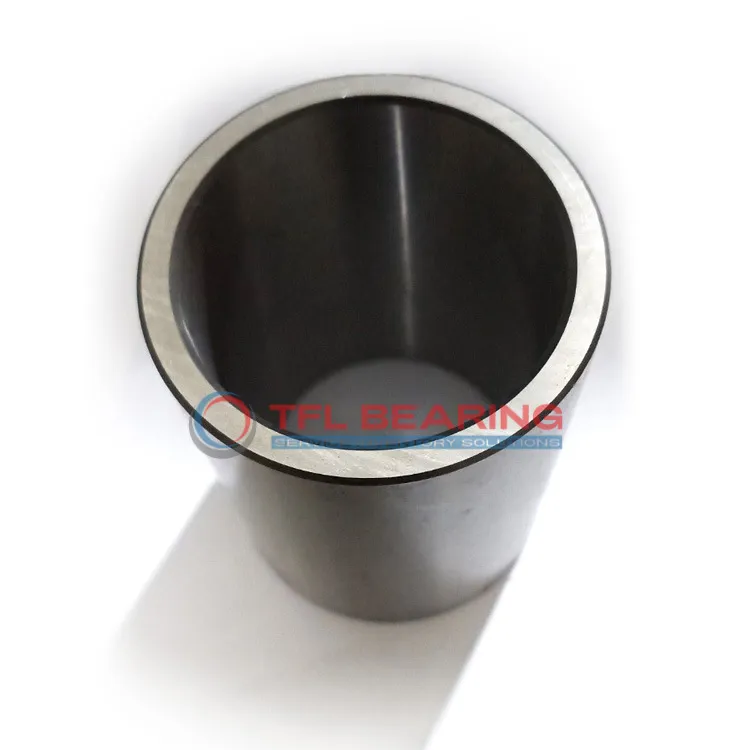

The IR90X105X63-XL is a needle roller bearing inner ring with a 90mm bore and 105mm outer diameter, crafted from sturdy chrome steel. Its 63mm width provides a solid fit for high-load applications.
The bearing comes pre-lubricated for smooth operation right out of the box. With a tight tolerance range, it ensures precise alignment in demanding setups.
Designed for durability, it features a 1.1mm radius to reduce stress concentrations. This model is interchangeable with INA bearings, offering flexibility for replacements.
Ideal for gearboxes or industrial machinery where space is limited but performance can’t be compromised. Weighing 1.11kg, it’s a robust component for heavy-duty use. Compliant with RoHS standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR90X105X63-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 63 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1110 g
  • Rmin 1.1 mm
Inner Rings IR90X105X63-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR90X105X63-XL Bearing
IR90X105X63-XL Bearing is crafted from high-quality chrome steel, offering excellent durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for demanding applications.
The needle roller design provides high load capacity while maintaining a compact profile.
With a width of 63 mm, it balances strength and space efficiency in various setups.
IR90X105X63-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance needs.
Its robust construction makes it suitable for heavy-duty operations without compromising performance.

Application

Essential Roles of IR90X105X63-XL Bearing
IR90X105X63-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive transmissions, IR90X105X63-XL Bearing provides smooth operation under heavy loads, making it a reliable choice for long-term use. Its metric sizing allows for easy integration with various vehicle models.
For automation systems, IR90X105X63-XL Bearing supports precise movements in robotic arms and conveyor belts. The lubricated design reduces friction, enhancing performance in continuous operation.
In medical imaging devices, IR90X105X63-XL Bearing’s consistent performance ensures accurate positioning of components. Its robust build makes it suitable for high-precision applications.
