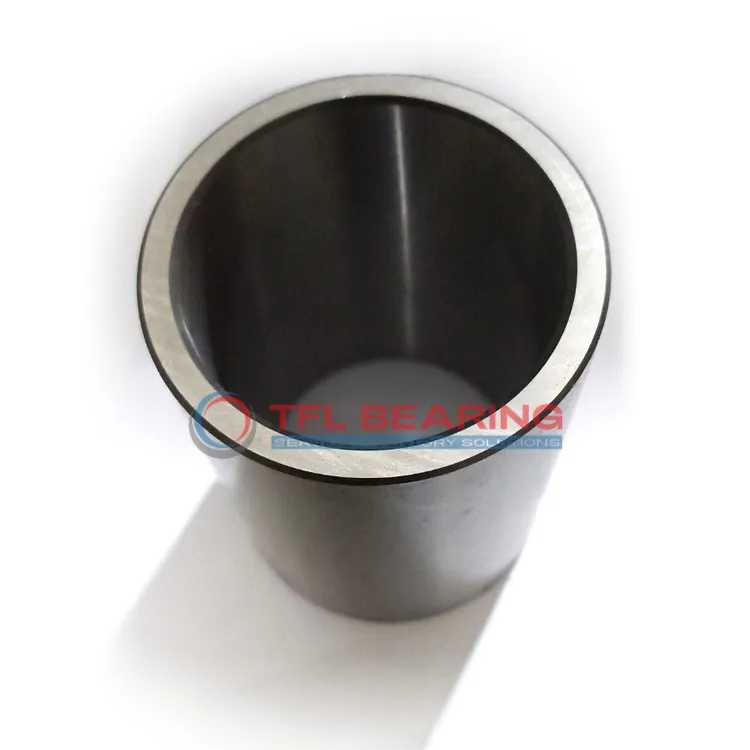

Inner Rings IR90X100X30-XL

Inner Rings IR90X100X30-XL

The IR90X100X30-XL is a needle roller bearing inner ring with a 90mm bore and 100mm outer diameter, crafted from sturdy chrome steel. Its compact 30mm width makes it a space-saving choice for tight setups.
Pre-lubricated for smooth operation, it handles high radial loads efficiently. The precise tolerances ensure a snug fit, reducing wear over time.
With a minimum corner radius of 1mm, it fits neatly into assemblies without sharp edges. This model is interchangeable with INA bearings, offering flexibility in replacements.
Ideal for gearboxes or transmission systems where reliable needle roller support is needed. Weighing 340g, it balances durability with manageable handling. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR90X100X30-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 30 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 340 g
  • Rmin 1 mm
Inner Rings IR90X100X30-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR90X100X30-XL Bearing
IR90X100X30-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for needle roller applications.
The lubrication system in IR90X100X30-XL Bearing enhances smooth operation and reduces friction.
With a width of 30 mm, it provides stability and reliable performance in compact spaces.
IR90X100X30-XL Bearing is RoHS compliant, making it suitable for environmentally conscious applications.
Its lightweight design at 340 g ensures easy handling without compromising strength.

Application

Key Fields for IR90X100X30-XL Bearing
IR90X100X30-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding operating conditions.
In automotive transmissions, IR90X100X30-XL Bearing provides smooth rotation for shafts and gears, thanks to its precise tolerances. Its metric sizing makes it a reliable fit for various European and Asian vehicle models.
For automation systems, IR90X100X30-XL Bearing supports robotic arms and conveyor mechanisms, where low friction and high load capacity are essential. The lubricated design helps maintain performance over extended periods.
In household appliances like washing machines, IR90X100X30-XL Bearing ensures quiet and efficient operation. Its compact size and robust build make it suitable for applications where space is limited but reliability is key.
