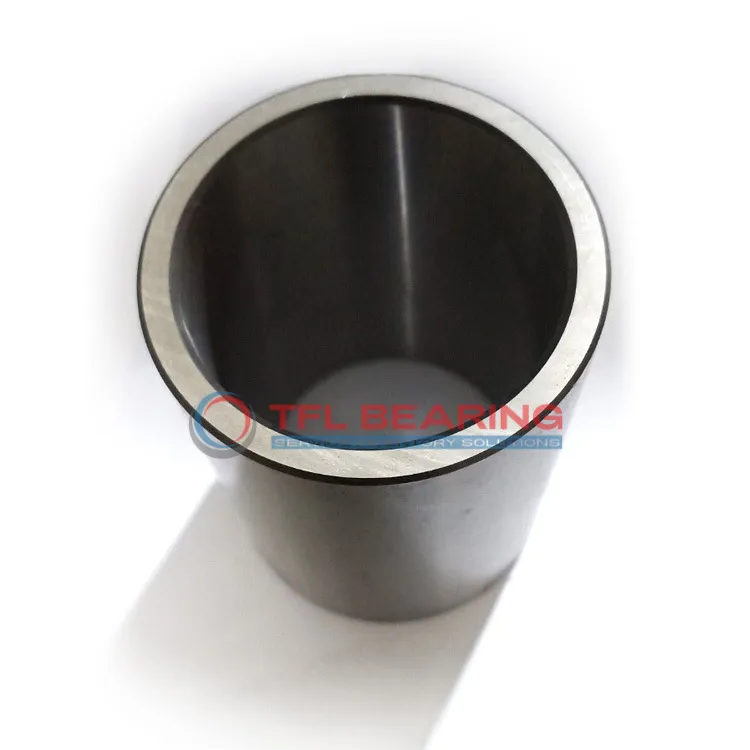

Inner Rings IR90X100X26-XL

Inner Rings IR90X100X26-XL

The IR90X100X26-XL is a needle roller bearing inner ring with a 90mm bore and 100mm outer diameter, crafted from sturdy chrome steel. Its compact 26mm width makes it a space-saving choice for tight assemblies.
Designed for smooth operation, it comes pre-lubricated to reduce friction and wear. The precise tolerances ensure a reliable fit in demanding applications.
This model is interchangeable with INA bearings, offering flexibility for replacements. It’s well-suited for gearboxes, transmissions, or industrial machinery where high load capacity is needed.
Weighing just 294g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe and practical option for various mechanical setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR90X100X26-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 294 g
  • Rmin 1 mm
Inner Rings IR90X100X26-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR90X100X26-XL Bearing
IR90X100X26-XL Bearing is crafted from high-quality chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for demanding applications.
The needle roller design provides excellent load-bearing capacity in a compact space.
With a width of 26 mm, it balances strength and space efficiency.
How Does IR90X10026-XL Bearing Ensure Smooth Operation?
IR90X10026-XL Bearing comes pre-lubricated, reducing friction and ensuring smooth performance from the start.
The chrome steel construction resists corrosion, maintaining reliability over time.
Its needle roller design minimises contact stress, enhancing operational efficiency.
With a bore diameter of 90 mm, it fits seamlessly into various mechanical systems.
Designed for Durability: IR90X10026-XL Bearing
IR90X10026-XL Bearing’s chrome steel material provides long-lasting performance even under heavy loads.
The precise tolerances on its dimensions ensure consistent operation and easy installation.
Its needle roller type offers high load capacity without compromising on space.
Weighing just 294 g, it combines strength with lightweight design.

Application

Industrial Uses of IR90X100X26-XL Bearing
IR90X100X26-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive transmissions, IR90X100X26-XL Bearing provides smooth operation, reducing friction and wear in high-speed applications. Its metric dimensions make it a reliable choice for various vehicle models.
For automation systems, IR90X100X26-XL Bearing supports precise movements in robotic arms and conveyor belts. The lubricated design helps maintain performance over long periods of continuous use.
Where Is IR90X100X26-XL Bearing Used?
IR90X100X26-XL Bearing can be found in printing machinery, where its narrow width and high load capacity are ideal for compact designs. The precise tolerances ensure consistent performance.
In agricultural equipment, IR90X100X26-XL Bearing withstands harsh conditions, providing reliable support for heavy-duty applications. Its chrome steel material resists corrosion and wear.
Built for Heavy-Duty Use: IR90X100X26-XL Bearing
IR90X100X26-XL Bearing is a go-to choice for construction machinery, where its robust design handles heavy loads and vibrations. The needle rollers distribute stress evenly, extending service life.
In packaging machines, IR90X100X26-XL Bearing ensures smooth operation, reducing downtime and maintenance needs. Its lubricated design keeps it running efficiently even at high speeds.
