Inner Rings IR8X12X10-IS1-XL

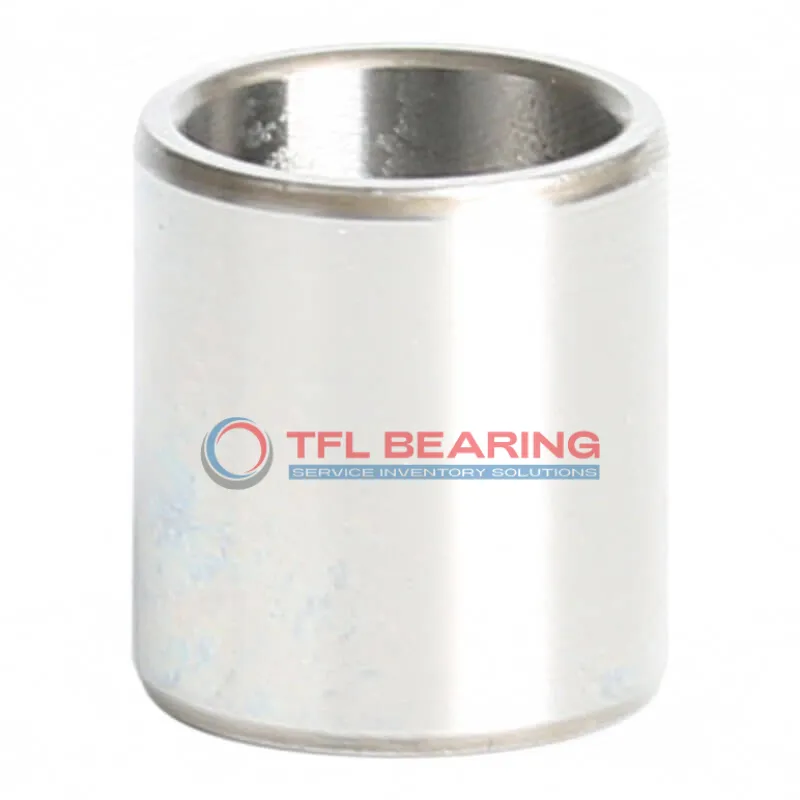

Inner Rings IR8X12X10-IS1-XL

The IR8X12X10-IS1-XL is a needle roller bearing inner ring with an 8mm bore and 12mm outer diameter, crafted from sturdy chrome steel. It’s pre-lubricated for smooth operation and weighs just 4.8g, making it lightweight yet durable.
With a single lubrication hole, maintenance is straightforward, and the 0.3mm minimum radius ensures a snug fit. The width of 10mm provides stability in compact spaces.
This model is compatible with INA bearings, offering a reliable replacement option. Ideal for small machinery or automotive applications where precision and low friction are key.
Compliant with RoHS standards, it’s a safe choice for various industrial uses. Its compact design and easy lubrication make it a practical pick for tight assemblies.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR8X12X10-IS1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR-IS1
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 4.8 g
  • Rmin 0.3 mm
Inner Rings IR8X12X10-IS1-XL dimension drawing
Download DWG Download PDF

Features

How Is IR8X12X10-IS1-XL Bearing Engineered for Reliability?
IR8X12X10-IS1-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The single lubrication hole in IR8X12X10-IS1-XL Bearing helps maintain smooth operation with minimal maintenance.
With a precise bore diameter of 8 mm, it fits seamlessly into various mechanical setups.
IR8X12X10-IS1-XL Bearing’s lightweight design at just 4.8 g ensures easy handling without compromising strength.
Its compliance with RoHS standards makes it an environmentally friendly choice for industrial applications.

Application

Industrial Uses of IR8X12X10-IS1-XL Bearing
IR8X12X10-IS1-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments.
Where Is IR8X12X10-IS1-XL Bearing Used?
You’ll often find IR8X12X10-IS1-XL Bearing in automotive transmissions, where its precise tolerances and lubrication hole improve performance. It’s also a reliable choice for small electric motors in appliances.
Built for Heavy-Duty Use: IR8X12X10-IS1-XL Bearing
IR8X12X10-IS1-XL Bearing excels in conveyor systems, thanks to its robust chrome steel material and needle roller design. The single lubrication hole simplifies maintenance in continuous operation settings.
Automotive vs Aerospace: Applications of IR8X12X10-IS1-XL Bearing
In automotive applications, IR8X12X10-IS1-XL Bearing is ideal for steering systems due to its compact size and load capacity. For aerospace, its lightweight design suits auxiliary equipment where precision is key.
Perfect Fit for Automation: IR8X12X10-IS1-XL Bearing
IR8X12X10-IS1-XL Bearing works well in robotic arms, offering smooth movement with minimal friction. The pre-lubrication ensures consistent performance in high-cycle automation tasks.
