Inner Rings IR55X60X35-XL

Inner Rings IR55X60X35-XL

The IR55X60X35-XL is a needle roller bearing inner ring with a 55mm bore and 60mm outer diameter, crafted from sturdy chrome steel. Its 35mm width provides a compact yet robust design for high-load applications.
Pre-lubricated for smooth operation, this ring fits seamlessly with INA bearings, offering easy interchangeability. The precise tolerances ensure reliable performance in demanding conditions.
With a minimal corner radius of 0.6mm, it allows for tight fits in confined spaces. Weighing just 121g, it balances strength and lightweight convenience.
Ideal for gearboxes or automotive transmissions where space is limited but durability is crucial. RoHS compliant for safe use in various industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR55X60X35-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 60 mm
  • Outer Dia Tolerance -0.021mm to -0.010mm
  • Width 35 mm
  • Width Tolerance -0.15mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 121 g
  • Rmin 0.6 mm

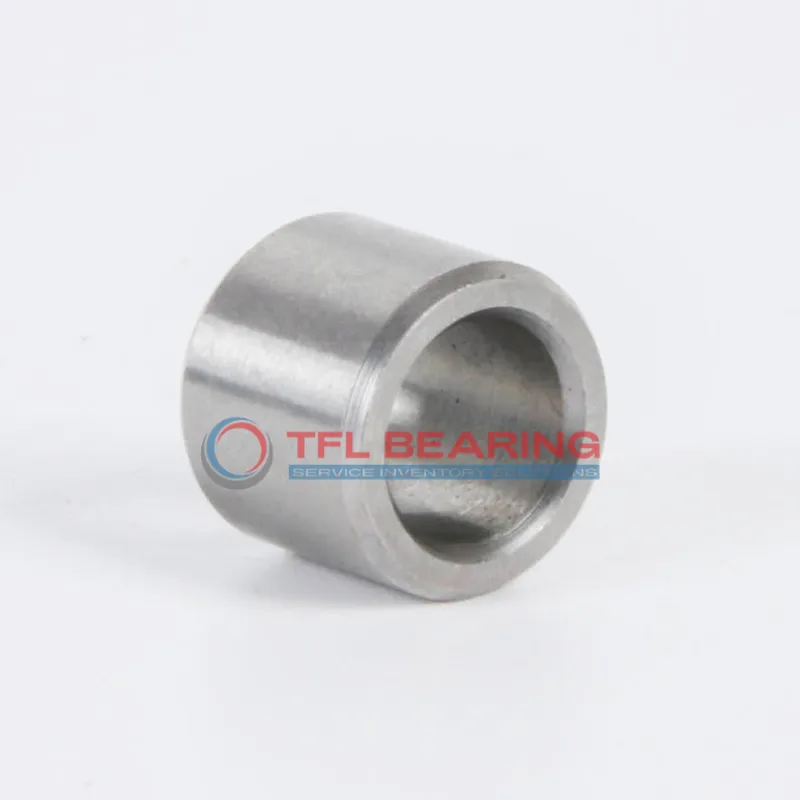

Inner Rings IR55X60X35-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR55X60X35-XL Bearing
IR55X60X35-XL Bearing is crafted from high-quality chrome steel, offering excellent durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The needle roller design of IR55X60X35-XL Bearing provides high load capacity in a compact space.
Lubrication is pre-applied, reducing initial setup time and ensuring smooth performance from the start.
With a weight of just 121 grams, IR55X60X35-XL Bearing is lightweight yet robust for various applications.
Its compliance with RoHS standards makes it an environmentally friendly choice for industrial use.

Application

Industrial Uses of IR55X60X35-XL Bearing
IR55X60X35-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR55X60X35-XL Bearing fits well in transmission systems, providing smooth operation under heavy loads. Its metric sizing makes it a reliable choice for various vehicle models.
For automation equipment, IR55X60X35-XL Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design helps maintain performance over extended periods.
What Makes IR55X60X35-XL Bearing a Preferred Choice?
IR55X60X35-XL Bearing works well in printing machinery, where its compact size and high load capacity are essential. The precise tolerances ensure consistent performance.
In agricultural machinery, IR55X60X35-XL Bearing handles the tough conditions of harvesters and tractors. Its robust design minimises wear and tear, reducing maintenance needs.
