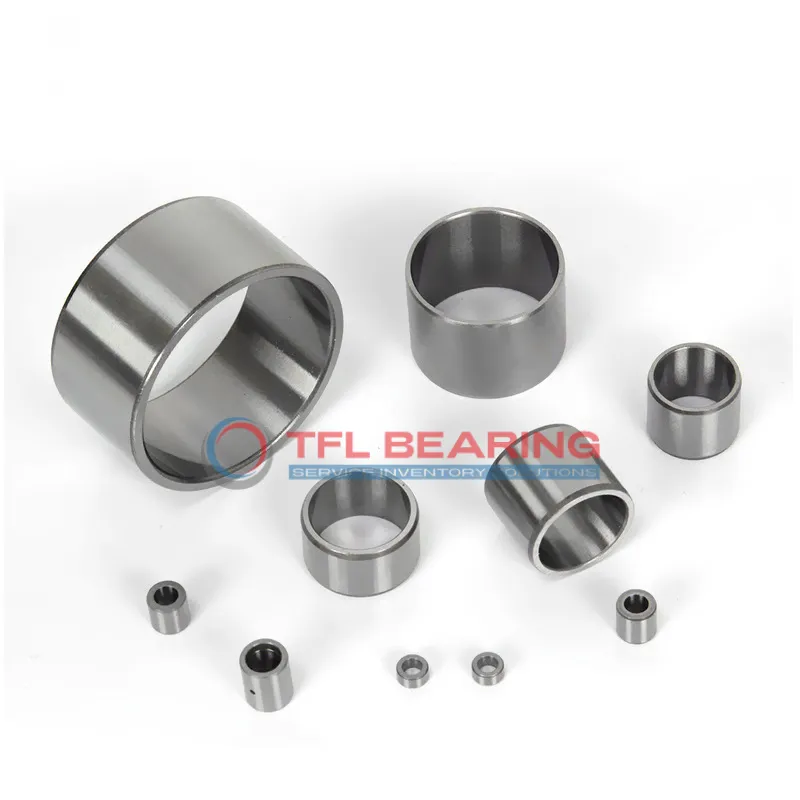

Inner Rings IR40X50X22-XL

Inner Rings IR40X50X22-XL

The IR40X50X22-XL is a needle roller bearing inner ring with a 40mm bore and 50mm outer diameter, crafted from sturdy chrome steel. It’s part of the IR series and comes pre-lubricated for smooth operation.
With a width of 22mm and a minimal chamfer, it fits snugly in compact spaces. The bearing’s design ensures easy handling and installation, thanks to its precise tolerances.
This model is interchangeable with INA bearings, offering flexibility for replacements. Ideal for applications like gear pumps or automotive transmissions where space is limited.
Weighing just 118g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a reliable choice for eco-conscious users.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR40X50X22-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 50 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 118 g
  • Rmin 1 mm
Inner Rings IR40X50X22-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR40X50X22-XL for Precision Tasks?
IR40X50X22-XL is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise dimensions and tight tolerances make it ideal for applications requiring accuracy.
The needle roller design of IR40X50X22-XL allows for compact installations without sacrificing performance.
It comes pre-lubricated, reducing initial setup time and maintenance needs.
With a weight of just 118 g, IR40X50X22-XL is lightweight yet robust for its size.
Its compliance with RoHS standards ensures it meets environmental and safety regulations.

Application

Key Fields for IR40X50X22-XL Bearing
IR40X50X22-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR40X50X22-XL Bearing fits well in transmission systems, providing smooth operation under varying speeds. Its metric sizing makes it a versatile choice for many vehicle models.
For automation equipment, IR40X50X22-XL Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design helps maintain performance over extended periods of use.
In household appliances like washing machines, IR40X50X22-XL Bearing offers reliable performance with minimal maintenance. Its compact size and weight make it ideal for space-constrained designs.
