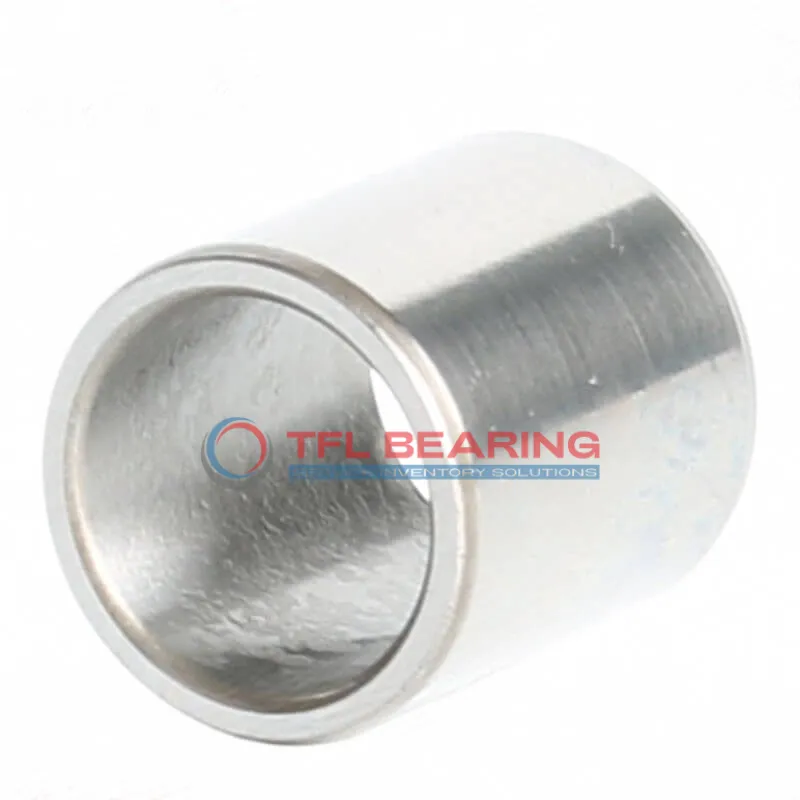

Inner Rings IR35X43X22-XL

Inner Rings IR35X43X22-XL

The IR35X43X22-XL is a needle roller bearing inner ring with a 35mm bore and 43mm outer diameter, crafted from sturdy chrome steel. Its compact width of 22mm makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, this ring handles high radial loads efficiently. The precise tolerances ensure a snug fit, reducing wear over time.
With a minimal corner radius of 0.6mm, it fits neatly into complex designs. The chrome steel construction offers good resistance to wear in demanding conditions.
Ideal for gearboxes, transmissions, or industrial machinery where space is limited. Weighing just 82 grams, it’s lightweight yet durable. Compliant with RoHS standards for environmental safety.
Interchangeable with INA bearings, it provides a reliable replacement option. Its simple design makes installation straightforward for maintenance tasks.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR35X43X22-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 43 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 82 g
  • Rmin 0.6 mm
Inner Rings IR35X43X22-XL dimension drawing
Download DWG Download PDF

Features

How Is IR35X43X22-XL Bearing Engineered for Reliability?
IR35X43X22-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for various applications.
The needle roller design provides high load capacity while maintaining a compact size.
With a width of 22 mm, it fits seamlessly into tight spaces without compromising performance.
IR35X43X22-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance.
Its compliant RoHS status makes it suitable for environmentally conscious industries.

Application

Key Fields for IR35X43X22-XL Bearing
IR35X43X22-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding operating conditions.
In automotive transmissions, IR35X43X22-XL Bearing provides smooth rotation for components like shafts and gears. Its metric sizing makes it a reliable fit for various vehicle models, ensuring consistent performance.
For automation systems, IR35X43X22-XL Bearing supports precise movements in robotic arms and conveyor belts. The lubricated design reduces friction, enhancing longevity in high-speed applications.
In household appliances like washing machines, IR35X43X22-XL Bearing helps maintain quiet and efficient operation. Its compact size and robust build make it ideal for space-constrained designs.
