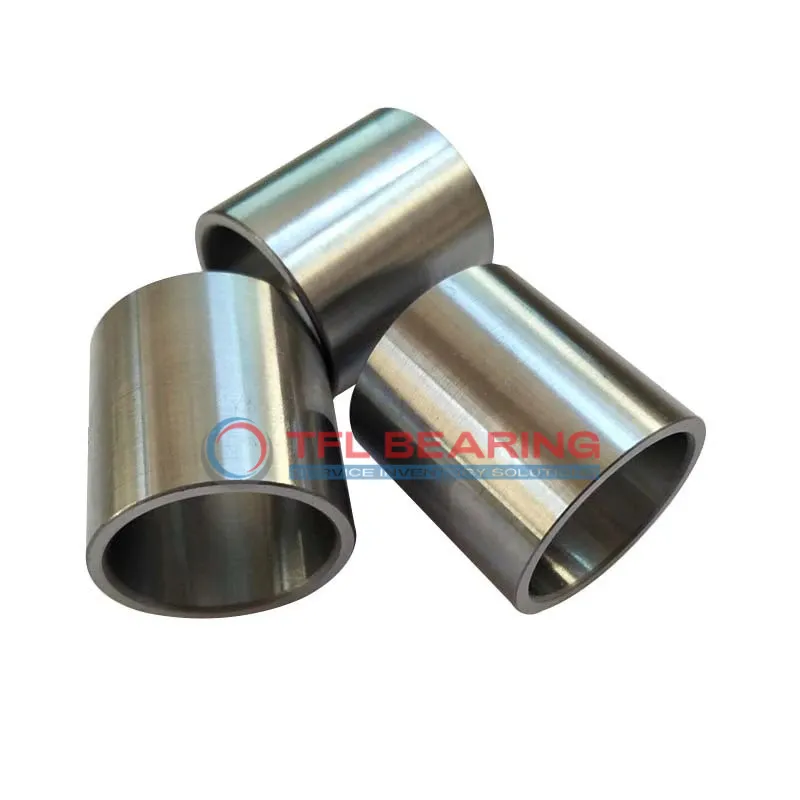

Inner Rings IR32X37X30-XL

The IR32X37X30-XL is a needle roller bearing inner ring with a 32mm bore and 37mm outer diameter, crafted from tough chrome steel. Its compact width of 30mm makes it suitable for tight spaces.
This component is designed to handle high radial loads efficiently, thanks to its needle roller design. It comes pre-lubricated for smooth operation right out of the box.
The bearing features a minimal chamfer of 0.3mm, ensuring easy installation. It’s interchangeable with INA bearings, offering flexibility for replacements.
Weighing just 62g, it’s lightweight yet durable. Ideal for applications like gear pumps or compact machinery where space is limited. Compliant with RoHS standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number IR32X37X30-XL
Brand TFL
Interchangeable brand INA
System of Measurement Metric
Roller Bearing Type Needle
Series IR
Bore Dia 32 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 37 mm
Outer Dia Tolerance -0.009mm to 0
Width 30 mm
Width Tolerance -0.12mm to 0
Material Chrome Steel
Lubrication Lubricated
RoHS Compliant
Weight 62 g
Rmin 0.3 mm

Inner Rings IR32X37X30-XL dimension drawing

Download DWG Download PDF

Features

Performance Features of IR32X37X30-XL Bearing
IR32X37X30-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The precise bore and outer diameter tolerances enhance its fit and performance in various applications.
With a width of 30 mm, it provides stability and reliability in demanding conditions.
IR32X37X30-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance needs.
Its compliance with RoHS standards ensures it meets environmental and safety requirements.

Application

Industrial Uses of IR32X37X30-XL Bearing
IR32X37X30-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR32X37X30-XL Bearing fits well in transmission systems, providing smooth operation under high-speed conditions. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, IR32X37X30-XL Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design reduces friction, enhancing performance over long periods.
In household appliances like washing machines, IR32X37X30-XL Bearing offers reliable performance with minimal maintenance. Its compact size and robust build make it ideal for space-constrained designs.
