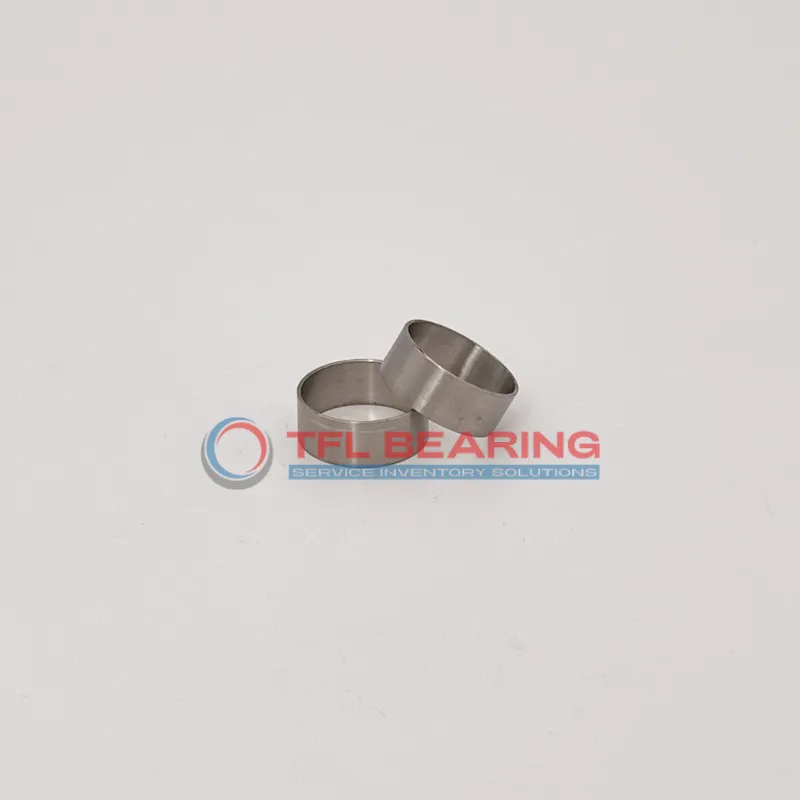

Inner Rings IR30X35X20-XL

Inner Rings IR30X35X20-XL

The IR30X35X20-XL is a needle roller bearing inner ring with a 30mm bore and 35mm outer diameter, crafted from sturdy chrome steel. Its compact 20mm width makes it a space-saving choice for tight assemblies.
Precision-machined to tight tolerances, it ensures smooth operation and reliable performance. The chrome steel construction offers good wear resistance, while the lubricated design reduces friction.
This inner ring is compatible with INA bearings, providing flexibility for replacements or upgrades. It’s ideal for applications like gearboxes, transmissions, or small machinery where space is limited.
Weighing just 39g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe and practical choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR30X35X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.004mm to +0.005mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 39 g
  • Rmin 0.3 mm
Inner Rings IR30X35X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR30X35X20-XL Bearing
IR30X35X20-XL Bearing is made from high-quality chrome steel, offering excellent durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for various applications.
The needle roller design of IR30X35X20-XL Bearing provides high load capacity in a compact space.
It is pre-lubricated for smooth operation right out of the box, reducing initial setup time.
With a lightweight design at just 39 grams, IR30X35X20-XL Bearing is easy to handle and install.
Its chamfered edges and Rmin of 0.3 mm allow for secure mounting and alignment.

Application

Industrial Uses of IR30X35X20-XL Bearing
IR30X35X20-XL Bearing is commonly used in industrial gearboxes, where its compact design and needle roller construction help manage high radial loads efficiently. The chrome steel material ensures durability even in demanding environments.
In automotive applications, IR30X35X20-XL Bearing fits well in transmission systems, providing smooth operation and reducing friction. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, IR30X35X20-XL Bearing’s precision and reliability make it suitable for robotic arms and conveyor systems. The lubricated design helps maintain performance over extended periods.
In household appliances like washing machines, IR30X35X20-XL Bearing’s lightweight and sturdy build contribute to quieter and more efficient operation. Its compatibility with INA bearings adds to its practicality.
