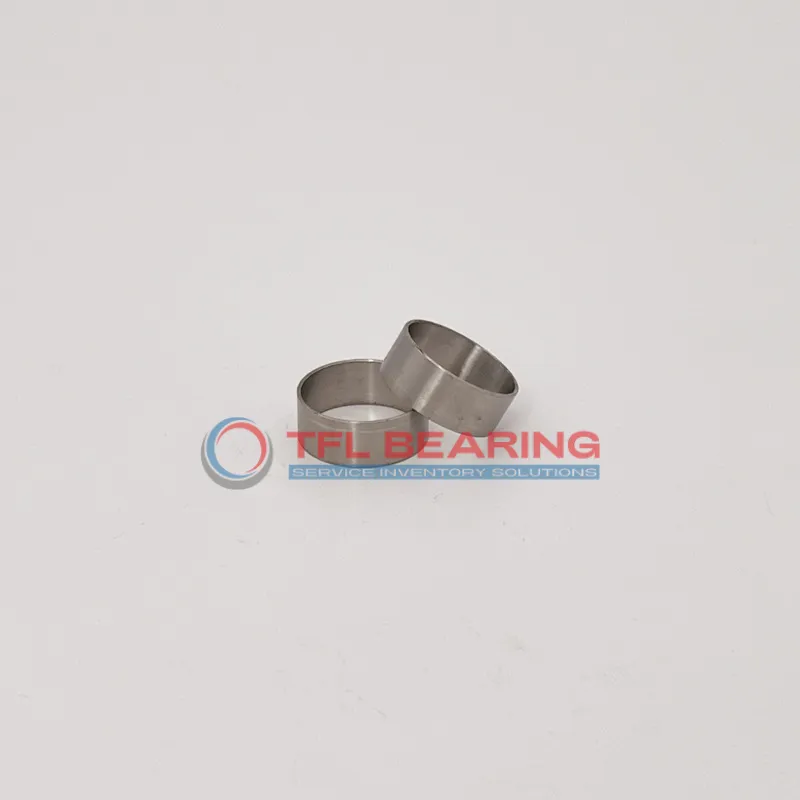

Inner Rings IR30X35X17-XL

Inner Rings IR30X35X17-XL

The IR30X35X17-XL is a needle roller bearing inner ring with a 30mm bore and 35mm outer diameter, crafted from sturdy chrome steel. Its compact width of 17mm makes it a space-saving choice for tight assemblies.
Precision-machined with tight tolerances, it ensures smooth rotation and reliable performance under load. The pre-lubricated design reduces friction, extending service life.
This model is interchangeable with INA bearings, offering flexibility for replacements or upgrades. Ideal for applications like gear pumps or transmission systems where precision and durability matter.
Weighing just 36g, it’s lightweight yet robust. Compliant with RoHS standards, it’s a safe and practical component for industrial use. The small chamfer (0.3mm) allows for easier installation in confined spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR30X35X17-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.004mm to +0.005mm
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 36 g
  • Rmin 0.3 mm
Inner Rings IR30X35X17-XL dimension drawing
Download DWG Download PDF

Features

How Is IR30X35X17-XL Bearing Engineered for Reliability?
IR30X35X17-XL Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances guarantee a perfect fit for needle roller applications.
The lubrication-ready design of IR30X35X17-XL Bearing reduces friction and enhances smooth operation.
With a lightweight construction of just 36 grams, it maintains efficiency without compromising strength.
IR30X35X17-XL Bearing is RoHS compliant, making it suitable for environmentally conscious applications.
Its compact width of 17 mm allows for easy integration into various mechanical systems.

Application

Industrial Uses of IR30X35X17-XL Bearing
IR30X35X17-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive applications, IR30X35X17-XL Bearing fits well in transmission systems, providing smooth operation under heavy loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, IR30X35X17-XL Bearing offers reliable performance in robotic arms and conveyor systems. The lubricated design reduces friction, enhancing longevity in continuous operations.
Medical devices like diagnostic machines benefit from IR30X35X17-XL Bearing’s precision and low maintenance needs. Its compact size is ideal for space-constrained applications.
