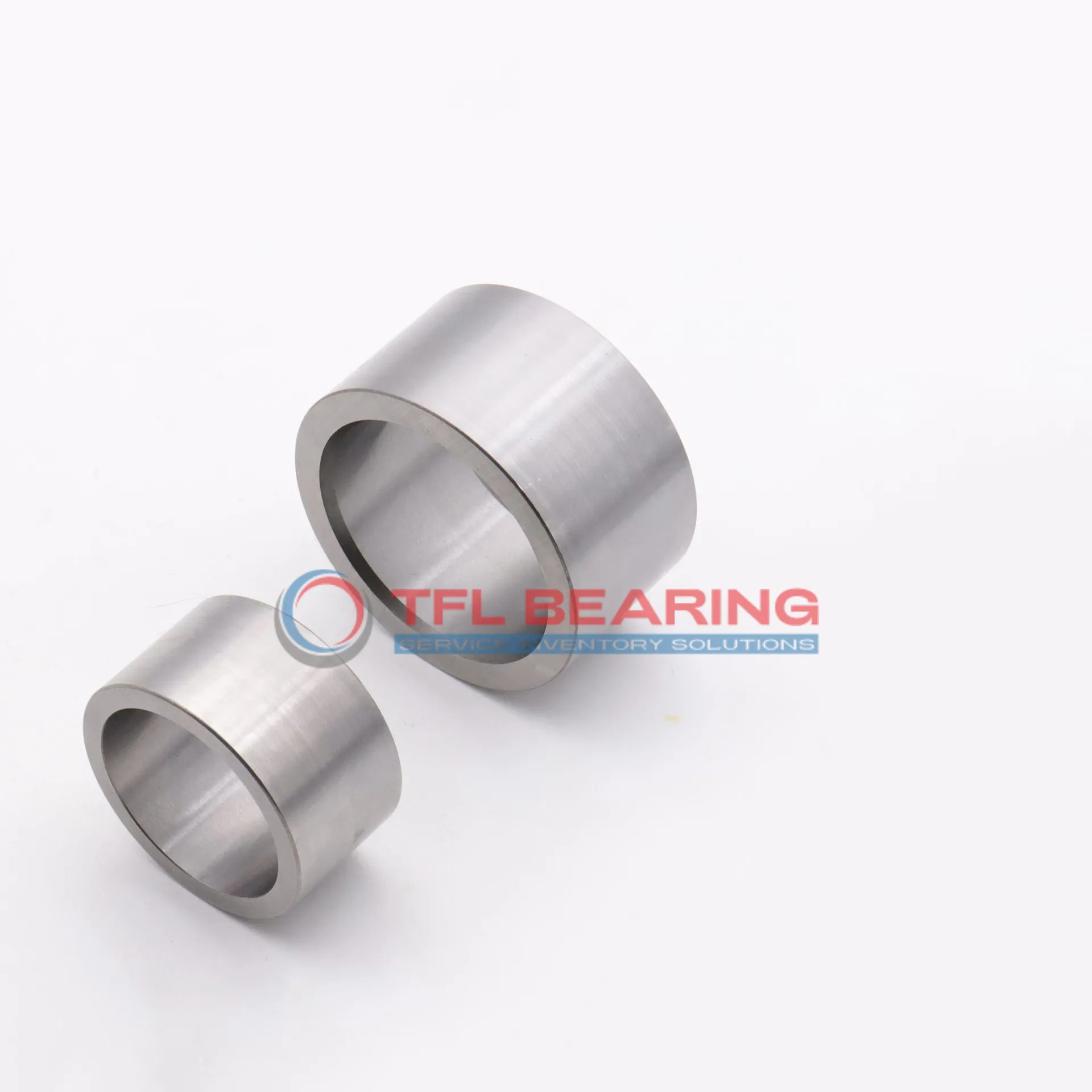

Inner Rings IR25X30X20-XL

Inner Rings IR25X30X20-XL

The IR25X30X20-XL is a needle roller bearing inner ring with a 25mm bore and 30mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, this ring handles radial loads efficiently. The precise tolerances ensure a snug fit, reducing wear over time.
With a minimal chamfer radius of 0.3mm, it allows for easy installation in assemblies. The chrome steel construction offers good resistance to wear and corrosion.
Compatible with INA bearings, it’s a practical choice for replacement parts. Ideal for use in gearboxes, automotive transmissions, or industrial machinery where space is limited. RoHS compliant for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR25X30X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 32.8 g
  • Rmin 0.3 mm
Inner Rings IR25X30X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR25X30X20-XL Bearing
IR25X30X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precision needle roller design ensures smooth operation even in compact spaces.
The bearing’s lubrication enhances performance, reducing friction and extending service life.
With a bore diameter of 25 mm and outer diameter of 30 mm, it fits seamlessly in various applications.

Application

Industrial Uses of IR25X30X20-XL Bearing
IR25X30X20-XL Bearing is commonly used in industrial gearboxes, where its compact design and needle roller construction help manage high radial loads efficiently. The chrome steel material ensures durability in demanding environments.
What Makes IR25X30X20-XL Bearing a Preferred Choice?
In automotive applications, IR25X30X20-XL Bearing fits well in transmission systems, providing smooth operation and reducing friction. Its metric dimensions make it compatible with various vehicle models.
Perfect Fit for Automation: IR25X30X20-XL Bearing
For robotic arms and automated machinery, IR25X30X20-XL Bearing offers precise movement and reliability. The lubricated design ensures long service life even in high-speed operations.
Medical vs Industrial: Where IR25X30X20-XL Bearing Excels
While IR25X30X20-XL Bearing is robust enough for industrial equipment, its precision also suits medical devices like small actuators. The chrome steel construction meets hygiene and performance standards.
