Inner Rings IR25X30X16-IS1-XL

Inner Rings IR25X30X16-IS1-XL

The IR25X30X16-IS1-XL is a needle roller bearing inner ring with a 25mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It’s pre-lubricated for smooth operation and weighs just 25.7 grams, making it lightweight yet durable.

Its compact width of 16mm and precise tolerances ensure a snug fit in tight spaces. The single lubrication hole simplifies maintenance, while the 0.3mm chamfer reduces stress during installation.

This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for applications like gear pumps or small machinery where space and precision are key.

Compliant with RoHS standards, it’s a safe choice for various industrial uses. The chrome steel construction provides excellent wear resistance for long-term performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR25X30X16-IS1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR-IS1
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 25.7 g
  • Rmin 0.3 mm

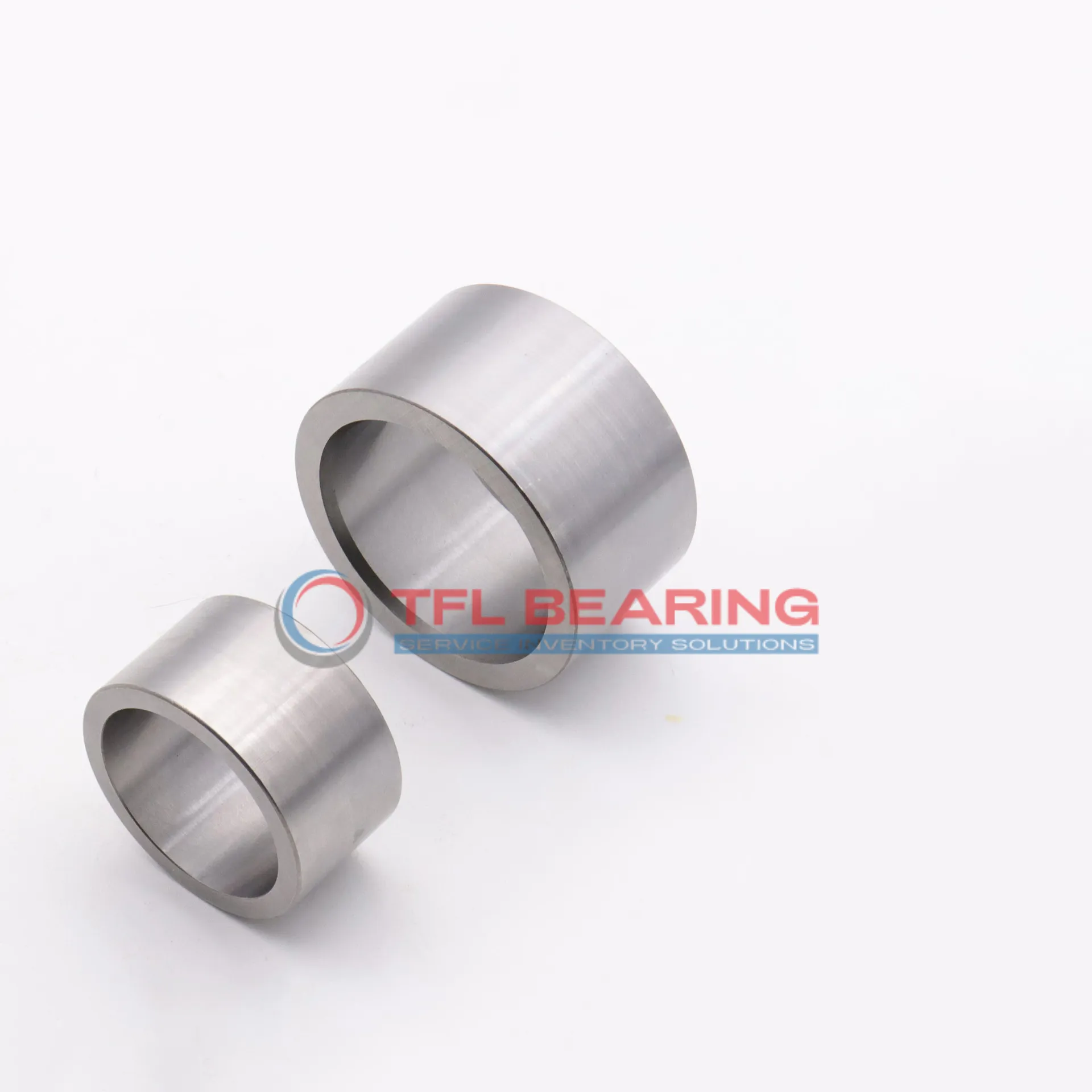

Inner Rings IR25X30X16-IS1-XL dimension drawing
Download DWG Download PDF

Features

How Is IR25X30X16-IS1-XL Bearing Engineered for Reliability?
IR25X30X16-IS1-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for needle roller applications.
The lubrication hole in IR25X30X16-IS1-XL Bearing allows for easy maintenance, enhancing its longevity.
With a compact design and a weight of just 25.7 g, it is ideal for space-constrained environments.
IR25X30X16-IS1-XL Bearing meets RoHS standards, making it a safe choice for various industries.
Its chamfer angle and Rmin of 0.3 mm contribute to smooth installation and operation.

Application

Key Fields for IR25X30X16-IS1-XL Bearing
IR25X30X16-IS1-XL Bearing is commonly used in industrial gearboxes, where its compact design and needle roller construction help manage high radial loads efficiently. The chrome steel material ensures durability in demanding environments.
In automotive applications, IR25X30X16-IS1-XL Bearing fits well in transmission systems, providing smooth operation and reducing friction. Its metric sizing makes it compatible with various vehicle models.
For automation equipment, IR25X30X16-IS1-XL Bearing’s precision and lubrication holes enhance performance in robotic arms and conveyor systems. The lightweight design also contributes to energy efficiency.
In medical devices, IR25X30X16-IS1-XL Bearing’s reliability is valued in imaging equipment and lab instruments, where consistent movement is essential. The RoHS compliance ensures it meets environmental standards.
