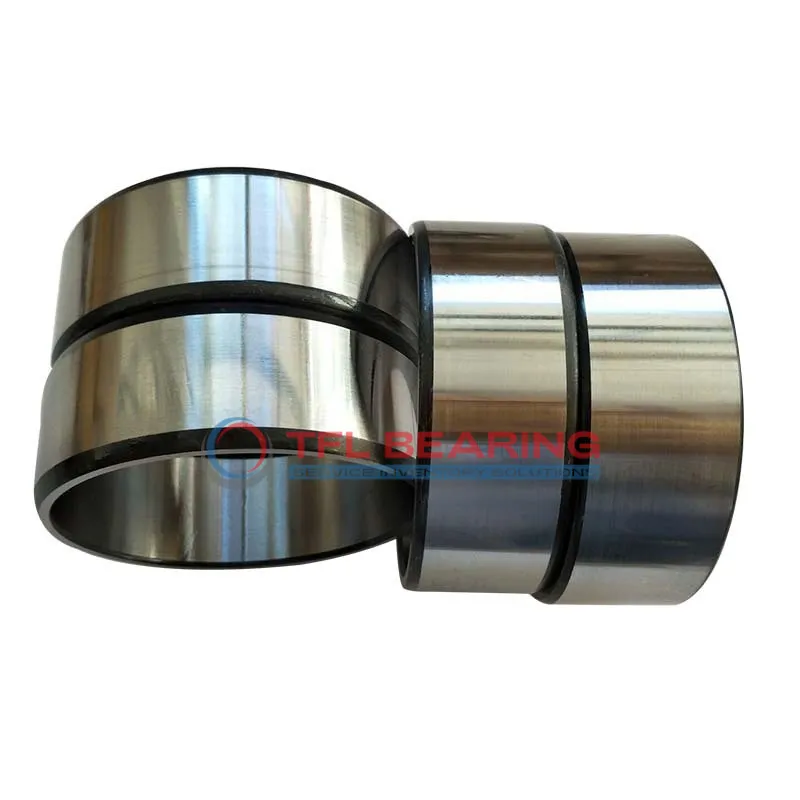

Inner Rings IR22X28X20-XL

Inner Rings IR22X28X20-XL

The IR22X28X20-XL is a needle roller bearing inner ring with a 22mm bore and 28mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, this ring handles high radial loads efficiently. The precise tolerances ensure a snug fit, reducing wear over time.
With a minimal corner radius of 0.3mm, it fits neatly in confined spaces. Compatible with INA bearings, it offers easy replacement options.
Ideal for gearboxes or automotive applications where compact, high-load components are needed. Weighing just 35g, it’s lightweight yet durable. RoHS compliant for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR22X28X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 22 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 35 g
  • Rmin 0.3 mm
Inner Rings IR22X28X20-XL dimension drawing
Download DWG Download PDF

Features

How Is IR22X28X20-XL Bearing Engineered for Reliability?
IR22X2820-XL Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances guarantee a perfect fit for your applications.
The needle roller design of IR22X2820-XL Bearing provides efficient load distribution, enhancing performance.
With a compact width of 20 mm, it is ideal for space-constrained installations.
IR22X2820-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance needs.
Its compliance with RoHS standards ensures it meets environmental and safety requirements.

Application

Essential Roles of IR22X28X20-XL Bearing
IR22X28
