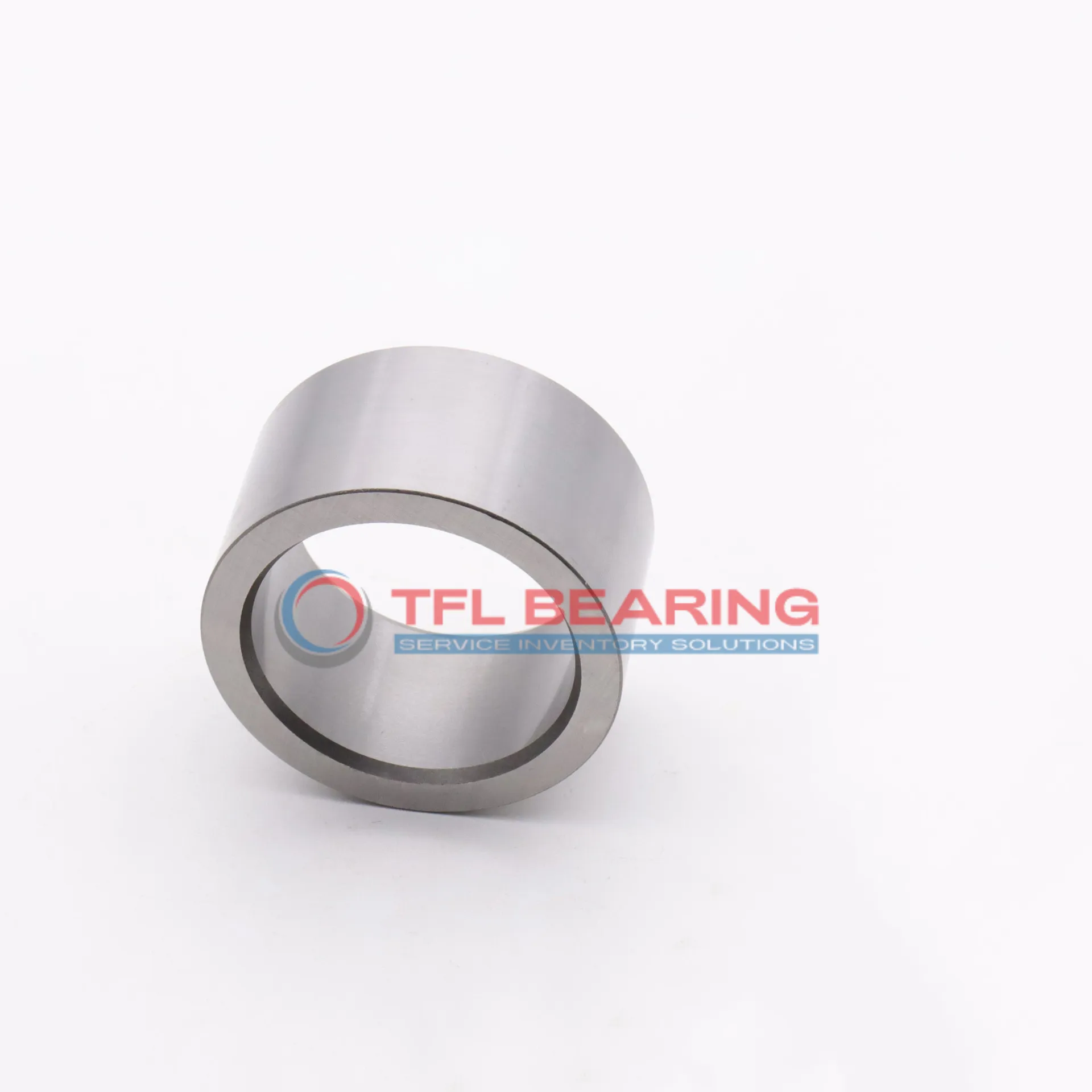

Inner Rings IR22X26X20-XL

Inner Rings IR22X26X20-XL

The IR22X26X20-XL is a needle roller bearing inner ring with a 22mm bore and 26mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it a space-saving choice for tight assemblies.
Designed for smooth operation, this ring comes pre-lubricated to reduce friction and wear. It handles radial loads efficiently, with precise tolerances ensuring a reliable fit.
The chamfered edges (Rmin 0.3mm) simplify installation, while the chrome steel construction offers durability. It’s interchangeable with INA bearings, providing flexibility for replacements.
Ideal for gearboxes, transmissions, or small machinery where space is limited. At just 23g, it’s lightweight yet robust. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR22X26X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 22 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 23 g
  • Rmin 0.3 mm
Inner Rings IR22X26X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR22X26X20-XL Bearing
IR22X26X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precision needle roller design ensures smooth operation in compact spaces.
The bearing’s tight tolerances provide reliable performance in high-precision applications.
With a lightweight design at just 23g, it reduces overall system weight without compromising strength.
IR22X26X20-XL Bearing comes pre-lubricated, ensuring immediate readiness for use.
Its metric dimensions make it compatible with standard systems, simplifying integration.

Application

Industrial Uses of IR22X26X20-XL Bearing
IR22X26X20-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR22X26X20-XL Bearing fits well in transmission systems, providing smooth rotation and reducing friction. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, IR22X26X20-XL Bearing’s precise tolerances and lubrication help maintain consistent performance in robotic arms. The lightweight design also contributes to energy efficiency in high-speed operations.
Where Is IR22X26X20-XL Bearing Used?
You’ll often find IR22X26X20-XL Bearing in conveyor systems, where its needle rollers support heavy loads while maintaining a small footprint. The lubricated design reduces maintenance needs over time.
In electric motors, IR22X26X20-XL Bearing helps reduce energy loss due to friction, thanks to its smooth operation. The chrome steel material also resists wear, extending the bearing’s lifespan.
Built for Heavy-Duty Use: IR22X26X20-XL Bearing
IR22X26X20-XL Bearing excels in construction machinery, where its robust design handles vibrations and shocks. The precise tolerances ensure reliable performance under tough conditions.
For printing presses, IR22X26
