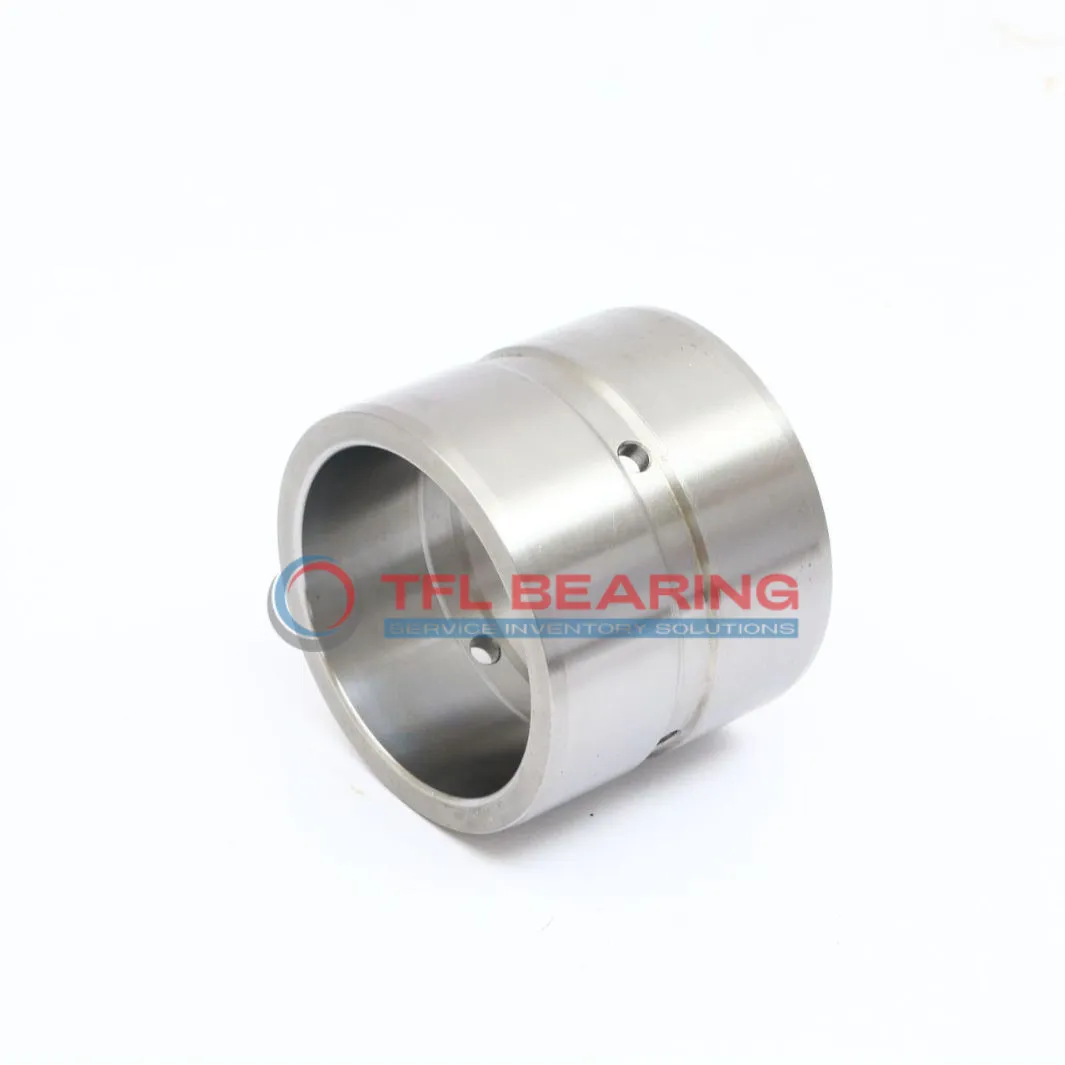

Inner Rings IR20X25X17-XL

The IR20X25X17-XL is a needle roller bearing inner ring with a 20mm bore and 25mm outer diameter, crafted from sturdy chrome steel. It’s designed for smooth operation and comes pre-lubricated for immediate use.
With a width of 17mm, this compact component fits snugly in tight spaces. Its precise tolerances ensure reliable performance in demanding applications.
The bearing is interchangeable with INA models, offering flexibility for replacements. Ideal for use in gearboxes, transmissions, or other machinery where space is limited.
Weighing just 25g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe choice for various industrial needs. The minimal corner radius of 0.3mm allows for easy installation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number IR20X25X17-XL
Brand TFL
Interchangeable brand INA
System of Measurement Metric
Roller Bearing Type Needle
Series IR
Bore Dia 20 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 25 mm
Outer Dia Tolerance -0.012mm to 0
Width 17 mm
Width Tolerance -0.12mm to 0
Material Chrome Steel
Lubrication Lubricated
RoHS Compliant
Weight 25 g
Rmin 0.3 mm

Inner Rings IR20X25X17-XL dimension drawing

Download DWG Download PDF

Features

Performance Features of IR20X25X17-XL Bearing
IR20X25X17-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore diameter of 20 mm ensures a snug fit, reducing vibration and improving stability.
The needle roller design allows for high load capacity in compact spaces, making it ideal for tight applications.
With a width of 17 mm, it provides reliable performance without adding unnecessary bulk.
IR20X25X17-XL Bearing comes pre-lubricated, ensuring smooth operation right from installation.
Its compliance with RoHS standards makes it a safe choice for various industrial uses.

Application

Key Fields for IR20X25X17-XL Bearing
IR20X25X17-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive applications, IR20X25X17-XL Bearing fits well in transmission systems, providing smooth rotation under heavy stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, IR20X25X17-XL Bearing offers reliable performance in robotic joints and precision mechanisms. The lubricated design reduces friction, enhancing operational efficiency.
In household appliances like washing machines, IR20X25X17-XL Bearing supports rotating parts with minimal noise. Its lightweight design contributes to energy efficiency in daily use.
