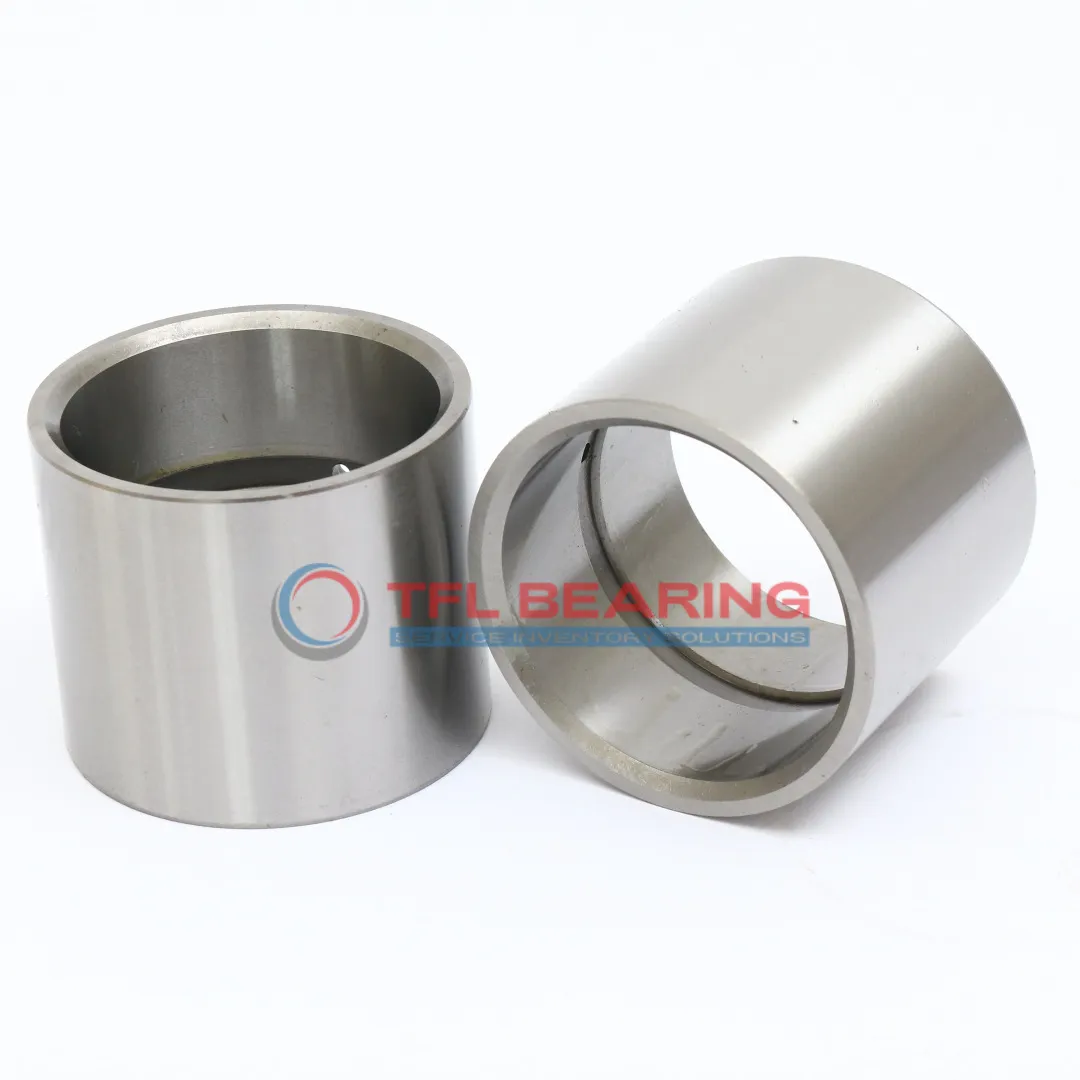

Inner Rings IR17X22X16-XL

Inner Rings IR17X22X16-XL

The IR17X22X16-XL is a needle roller bearing inner ring with a 17mm bore and 22mm outer diameter, crafted from sturdy chrome steel. Its compact width of 16mm makes it suitable for tight spaces, while the material ensures durability.
This component is pre-lubricated for smooth operation and ready to use straight out of the box. It’s designed to work seamlessly with INA bearings, offering a reliable replacement option.
With a minimal chamfer radius of 0.3mm, it fits neatly into assemblies without snagging. The bearing is RoHS compliant, meeting safety and environmental standards.
Ideal for applications like small gearboxes or compact machinery where space is limited. Its lightweight design at just 18.4g adds minimal bulk while maintaining strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR17X22X16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 18.4 g
  • Rmin 0.3 mm
Inner Rings IR17X22X16-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR17X22X16-XL Bearing
IR17X22X16-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its needle roller design ensures efficient load distribution, ideal for compact spaces.
The precise bore and outer diameter tolerances enhance fit and performance in various applications.
With a width of 16 mm, it provides stability while maintaining a lightweight profile.
Lubrication is pre-applied, reducing friction and extending the bearing’s operational life.
RoHS compliance ensures it meets environmental standards without compromising quality.

Application

Essential Roles of IR17X22X16-XL Bearing
IR17X22X16-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
What Makes IR17X22X16-XL Bearing a Preferred Choice?
In automotive applications, IR17X22X16-XL Bearing fits well in transmission systems, providing smooth operation under high-speed conditions. Its metric sizing makes it easy to integrate with various vehicle models.
Perfect Fit for Automation: IR17X22X16-XL Bearing
For robotic arms and automated machinery, IR17X22X16-XL Bearing offers reliable performance with minimal maintenance. The lubricated design helps reduce friction, extending the bearing’s lifespan.
Medical vs Industrial: Where IR17X22X16-XL Bearing Excels
While IR17X22X16-XL Bearing is versatile enough for industrial tools, its precision also suits medical devices like dental drills. The compact size and high load capacity make it ideal for both fields.
