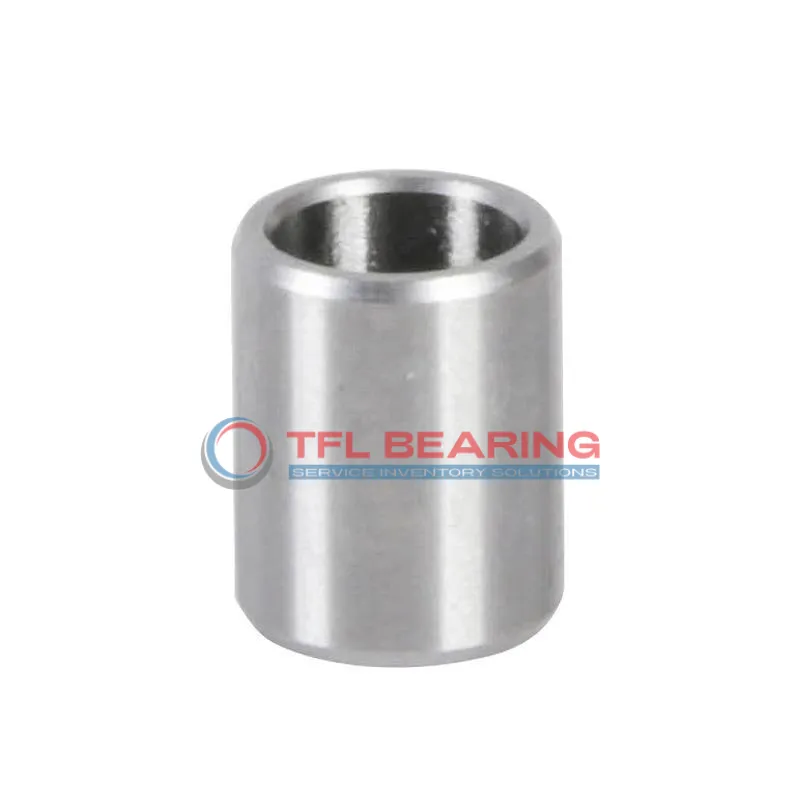

Inner Rings IR12X15X12.5-XL

Inner Rings IR12X15X12.5-XL

The IR12X15X12.5-XL is a needle roller bearing inner ring with a 12mm bore and 15mm outer diameter, crafted from sturdy chrome steel. Its compact width of 12.5mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, it handles radial loads efficiently with minimal friction. The chrome steel construction ensures durability under demanding conditions.
With a small chamfer radius of 0.3mm, it fits seamlessly into assemblies. This model is interchangeable with INA bearings, offering flexibility for replacements.
Ideal for applications like gear pumps or small engines where space is limited. Compliant with RoHS standards, it’s a reliable choice for various industrial uses. Weighing just 6.1g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR12X15X12.5-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 12.5 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 6.1 g
  • Rmin 0.3 mm
Inner Rings IR12X15X12.5-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR12X15X12.5-XL for Precision Tasks?
IR12X15X12.5-XL is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The metric dimensions and tight tolerances provide a reliable fit, enhancing performance in demanding setups.
With RoHS compliance, IR12X15X12.5-XL meets environmental standards while maintaining high functionality.
Lubrication is pre-applied, reducing initial setup time and ensuring smooth operation from the start.
The lightweight design at just 6.1 g makes it ideal for applications where weight is a critical factor.

Application

Key Fields for IR12X15X12.5-XL Bearing
IR12X15X12.5-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive applications, IR12X15X12.5-XL Bearing fits well in small transmission systems, providing smooth rotation for components like clutch release mechanisms. Its metric sizing makes it versatile for various vehicle designs.
For precision machinery, IR12X15X12.5-XL Bearing offers reliable performance in devices like small pumps or actuators. The lubricated design reduces friction, extending service life in continuous operation.
In robotics, IR12X15X12.5-XL Bearing supports compact joints and linkages, where its lightweight and sturdy build enhance movement accuracy. The narrow width allows for efficient use in tight spaces.
