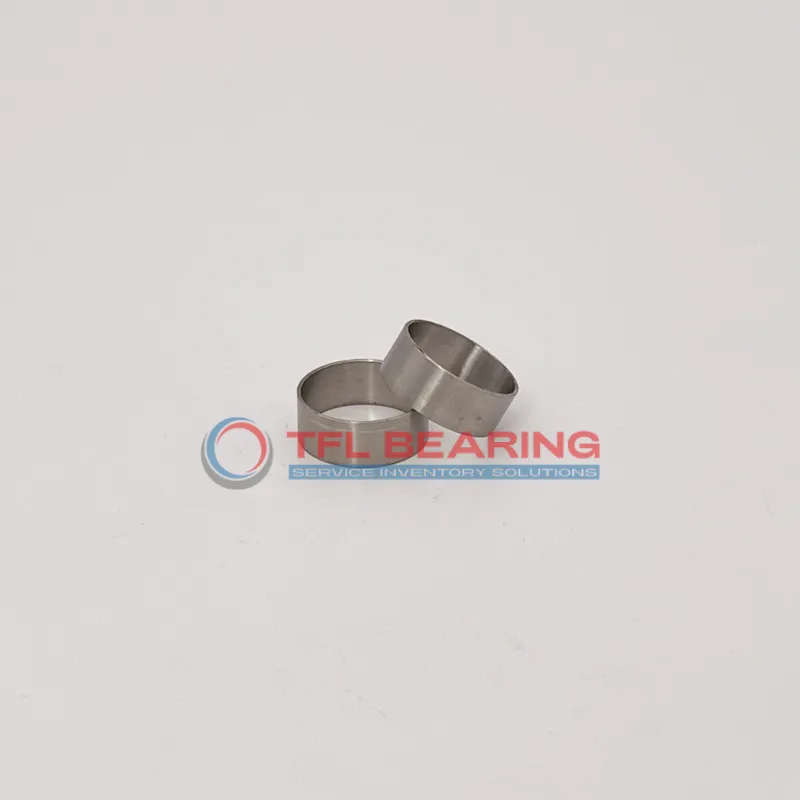

Inner Rings IR10X14X13-XL

Inner Rings IR10X14X13-XL

The IR10X14X13-XL is a needle roller bearing inner ring with a 10mm bore and 14mm outer diameter, crafted from sturdy chrome steel. Its compact width of 13mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, it reduces friction and wear in high-speed applications. The bearing handles radial loads efficiently, thanks to its needle roller design.
With a minimal chamfer radius of 0.3mm, it fits seamlessly into assemblies without sharp edges. Compliant with RoHS standards, it’s a safe choice for various industries.
Ideal for use in gearboxes, transmissions, or small machinery where space is limited. Its compatibility with INA bearings makes it a versatile replacement option. Weighing just 7.4g, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR10X14X13-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.4 g
  • Rmin 0.3 mm
Inner Rings IR10X14X13-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR10X14X13-XL Bearing for Precision Tasks?
IR10X14X13-XL Bearing is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The metric dimensions and tight tolerances provide reliable performance in high-precision machinery.
With a weight of just 7.4 g, it adds minimal bulk while maintaining strength.
IR10X14X13-XL Bearing is pre-lubricated, reducing the need for frequent maintenance.
Its compatibility with INA bearings makes it a versatile choice for various industrial uses.

Application

Common Applications of IR10X14X13-XL Bearing
IR10X14X13-XL Bearing is widely used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive transmissions, IR10X14X13-XL Bearing provides smooth operation for components like clutch assemblies and differential systems. Its metric sizing makes it a versatile choice for various vehicle models.
For small electric motors, IR10X14X13-XL Bearing offers reliable performance due to its precise tolerances and lubrication. This makes it suitable for applications requiring consistent rotation with minimal maintenance.
Where Is IR10X14X13-XL Bearing Used?
You’ll often find IR10X14X13-XL Bearing in conveyor systems, where its compact size and load capacity are ideal for guiding rollers. The lubricated design helps reduce friction in continuous operation.
In robotics, IR10X14X13-XL Bearing is a go-to for joint mechanisms, thanks to its lightweight and precision. The needle rollers ensure smooth movement even in tight spaces.
Built for Heavy-Duty Use: IR10X14X13-XL Bearing
IR10X14X13-XL Bearing excels in agricultural machinery, handling harsh conditions like dust and vibrations. Its robust chrome steel material stands up to prolonged use.
For printing equipment, IR10X14X13-XL Bearing ensures precise paper feed mechanisms. The tight tolerances help maintain accuracy in high-speed operations.
Light-Duty vs Heavy-Duty: Best Uses for IR10X14X13-XL Bearing
In light-duty applications like office printers, IR10X14X13-XL Bearing provides quiet and efficient performance. Its small footprint fits well in compact designs.
For heavier tasks like construction equipment, IR10X14X13-XL Bearing’s durability shines. The needle rollers distribute loads evenly, extending the bearing’s lifespan.
