Inner Rings IR100X115X40-XL

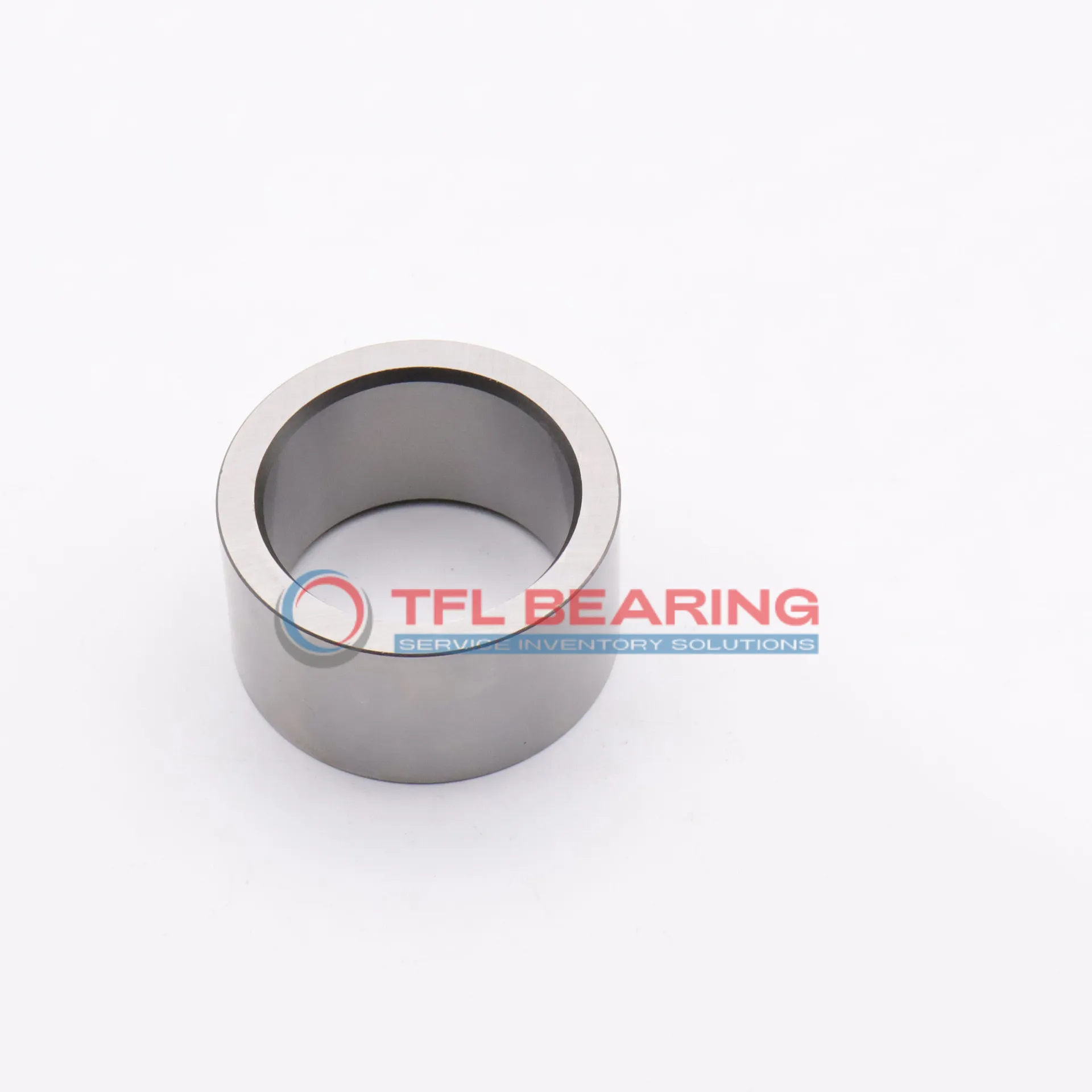

Inner Rings IR100X115X40-XL

The IR100X115X40-XL is a needle roller bearing inner ring with a 100mm bore and 115mm outer diameter, crafted from robust chrome steel. Its 40mm width and precise tolerances ensure a snug fit in demanding applications.
Pre-lubricated for smooth operation, this ring reduces friction and wear in high-load scenarios. The 1.1mm rounded edges help with easy installation and alignment.
Compatible with INA series bearings, it’s a practical choice for replacements or upgrades. Ideal for gearboxes, transmissions, or industrial machinery where space-saving needle rollers are needed.
Weighing 797g, it offers durability without excessive bulk. RoHS compliant for environmentally safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR100X115X40-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 797 g
  • Rmin 1.1 mm
Inner Rings IR100X115X40-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR100X115X40-XL Bearing
IR100X115X40-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore diameter of 100 mm ensures a snug fit, enhancing stability in various applications.
The needle roller design allows for high load capacity while maintaining a compact outer diameter of 115 mm.
With a width of 40 mm, it provides reliable performance in space-constrained environments.

Application

Key Fields for IR100X115X40-XL Bearing
IR100X115X40-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR100X115X40-XL Bearing fits well in transmission systems, providing smooth operation under heavy loads. Its metric dimensions make it a reliable choice for various vehicle models.
For automation equipment, IR100X115X40-XL Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design reduces friction, enhancing performance over long periods.
In medical devices, IR100X115X40-XL Bearing offers reliable performance in imaging equipment, where precision and stability are essential. Its robust build ensures minimal maintenance requirements.
